Cruise Control System: Troubleshooting

NOTE: Before troubleshooting :
  • Check the No.4 (10A), No.14 (10A), No.19 (10A) fuse in the passenger compartment relay box.
  • Check ECU #3 (10A) fuse in the engine compartment relay box.
  • Check that the horn sounds.
  • Check the tachometer to see if it works properly.

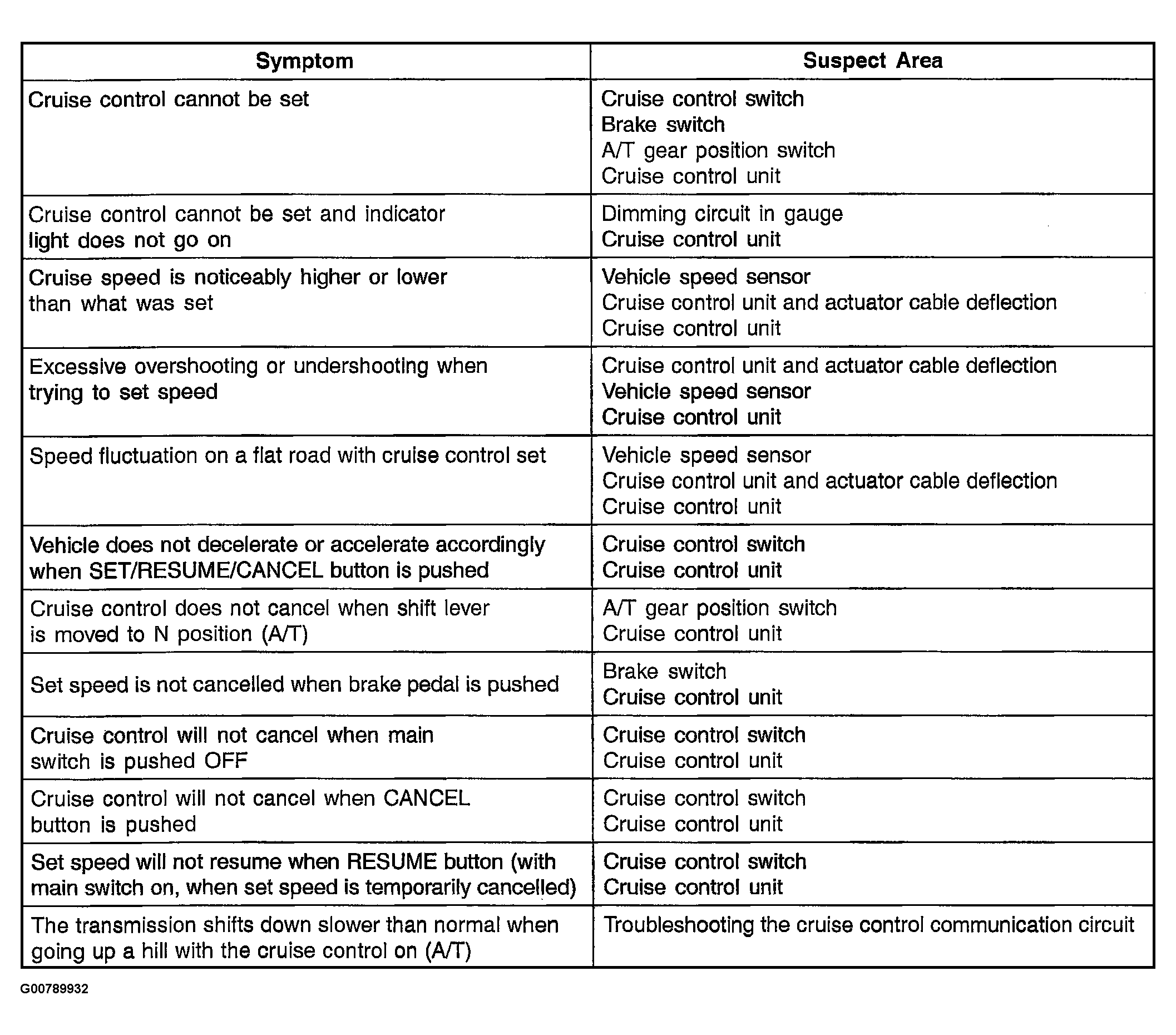

Fig 1: Cruise Control Symptom Chart
G00789932Courtesy of HYUNDAI MOTOR CO.
