A/C-Heater Control Panel Connector End Views (Auto System)

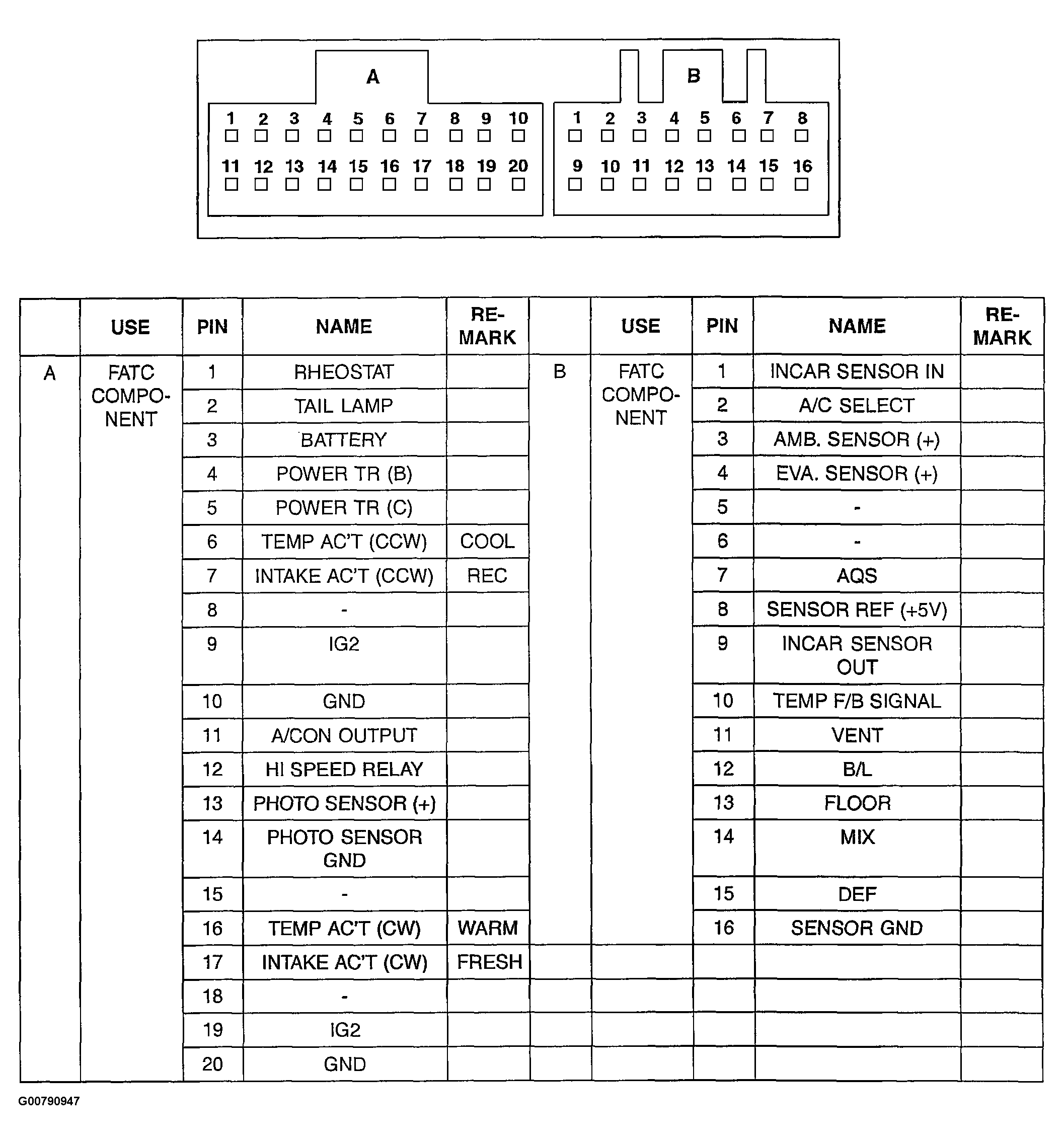

Fig 1: A/C-Heater Control Panel Connector End Views (Auto System)
G00790947Courtesy of HYUNDAI MOTOR AMERICA
