Rear Wiper Motor Control Unit Connector End View
Rear Wiper Motor Control Unit Connector End View

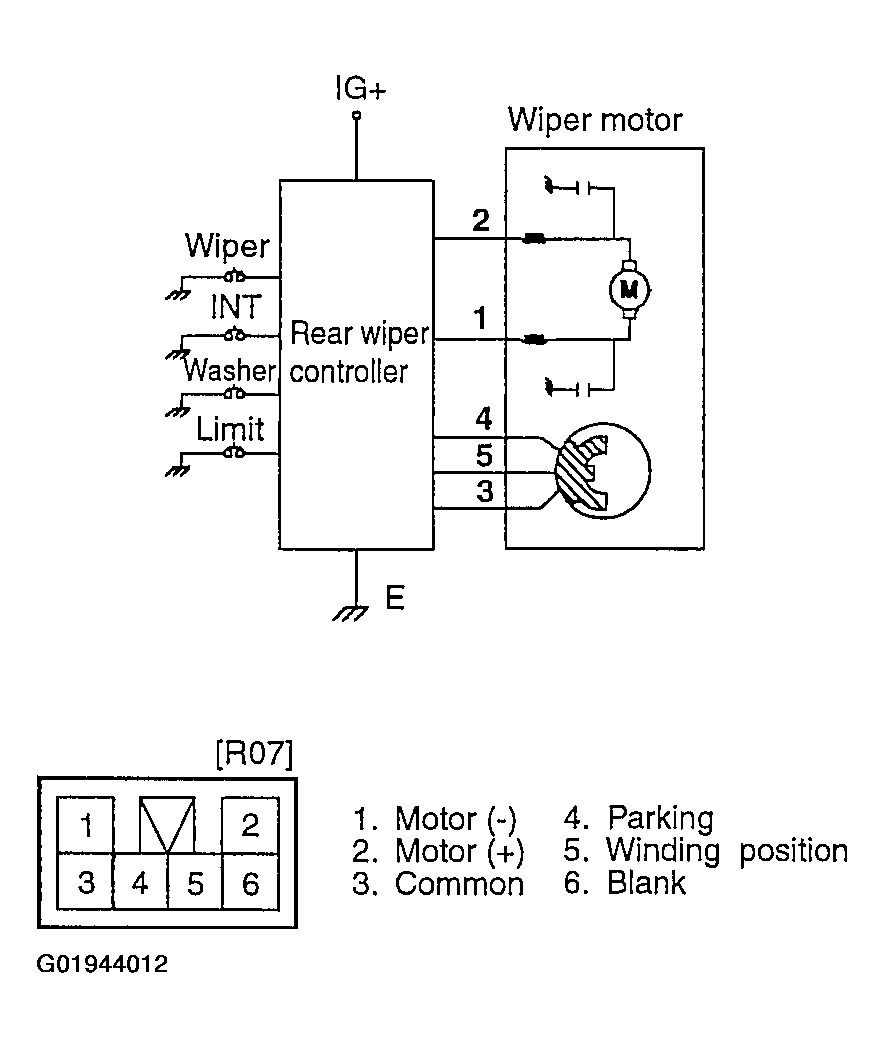

Fig 1: Rear Wiper Motor Control Unit Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
