Component Locations

COMPONENT LOCATIONS

Component	Location
Battery	Left Front Of Engine Compartment. See Fig 1 .
Passenger Compartment Junction Block	Behind Left Kick Panel. Fig 2 .
Engine Compartment Junction Block	Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1 .
Fusible Link	In Engine Compartment Junction Block. See Fig 1 .
Generator	Right Front Of Engine. Fig 3 .
Pre-Excitation Resistor	In Passenger Compartment Junction Block. See Fig 2 .

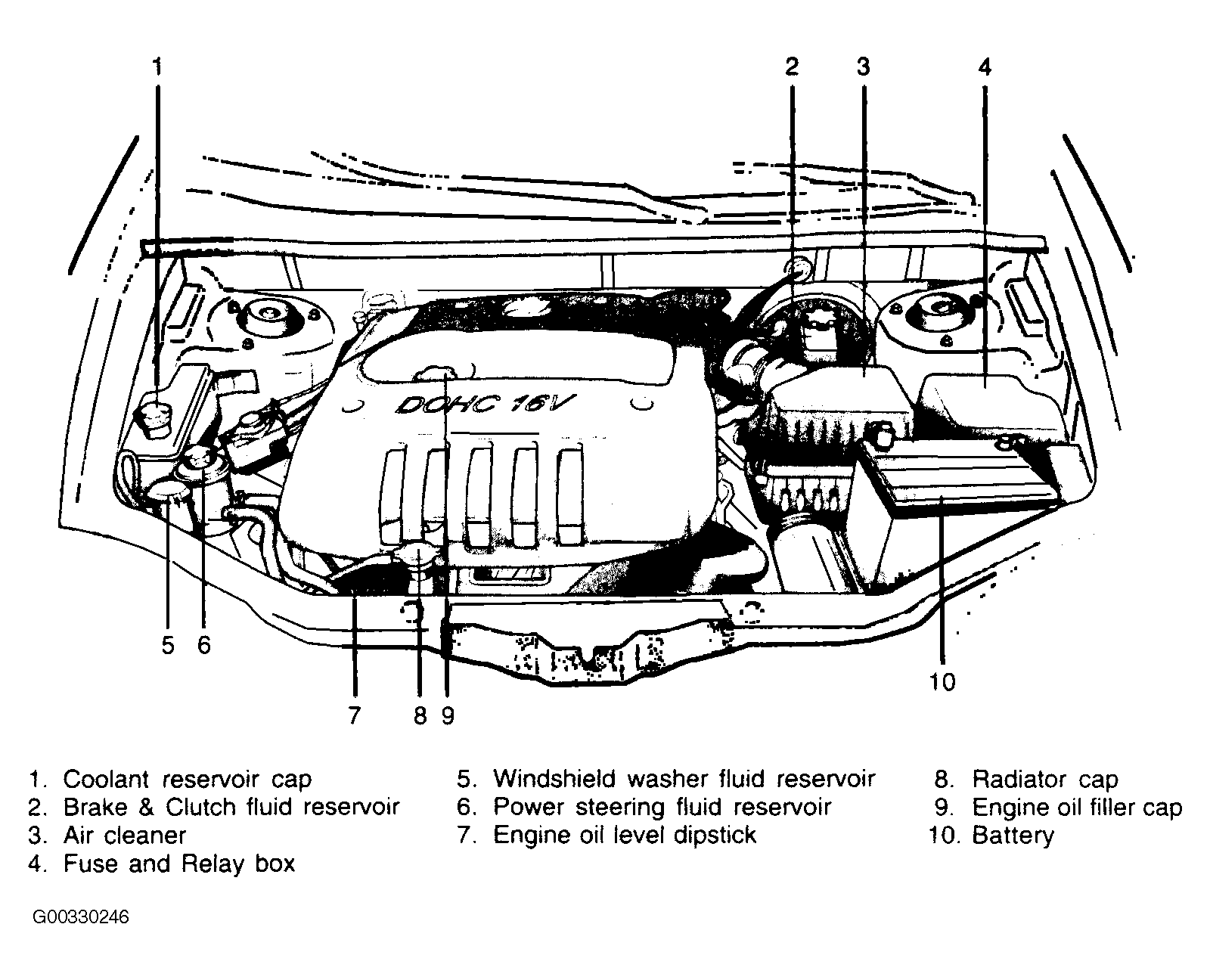

Fig 1: Locating Battery & Engine Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

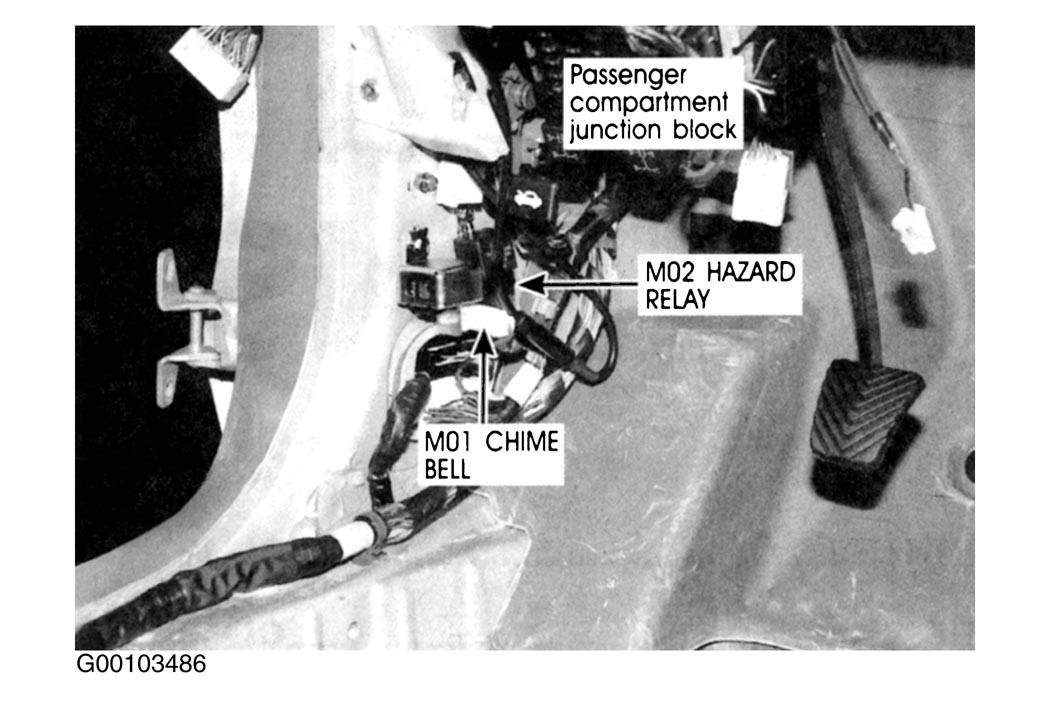

Fig 2: Locating Passenger Compartment Junction Block

Courtesy of HYUNDAI MOTOR CO.

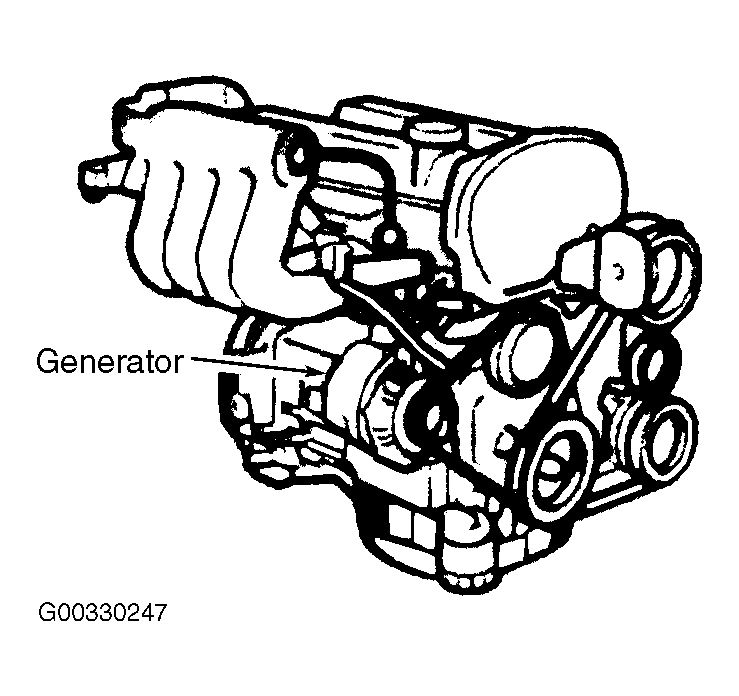

Fig 3: Locating Generator

Courtesy of HYUNDAI MOTOR CO.
