Inspection Procedure 7

WARNING: This page is about a different variant/trim than selected.

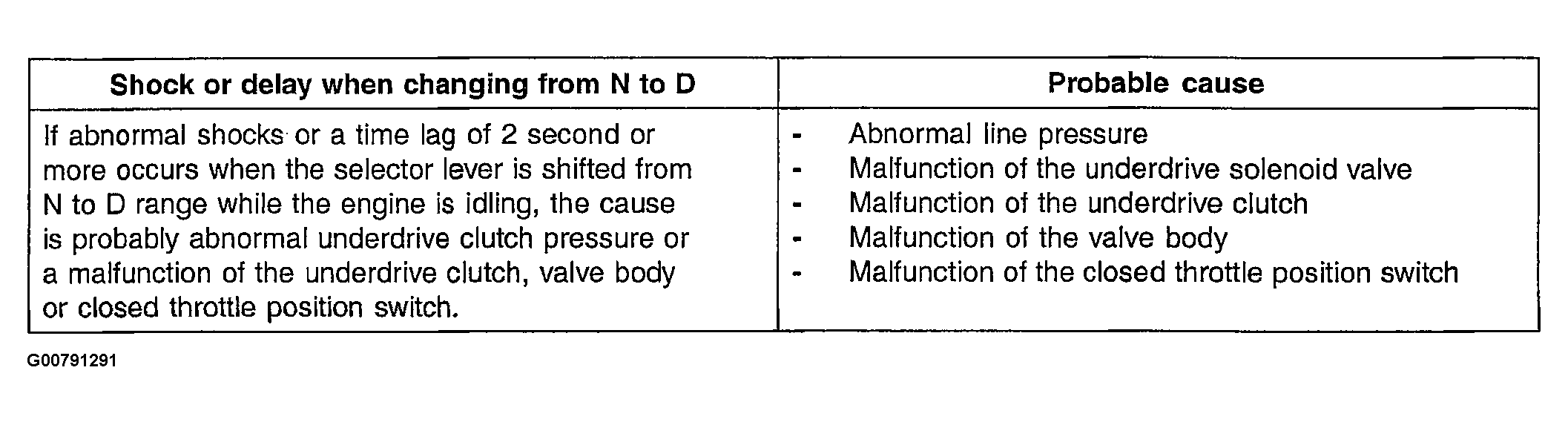

Fig 1: Inspection Procedure 7 Definitions & Probable Causes
G00791291Courtesy of HYUNDAI MOTOR CO.

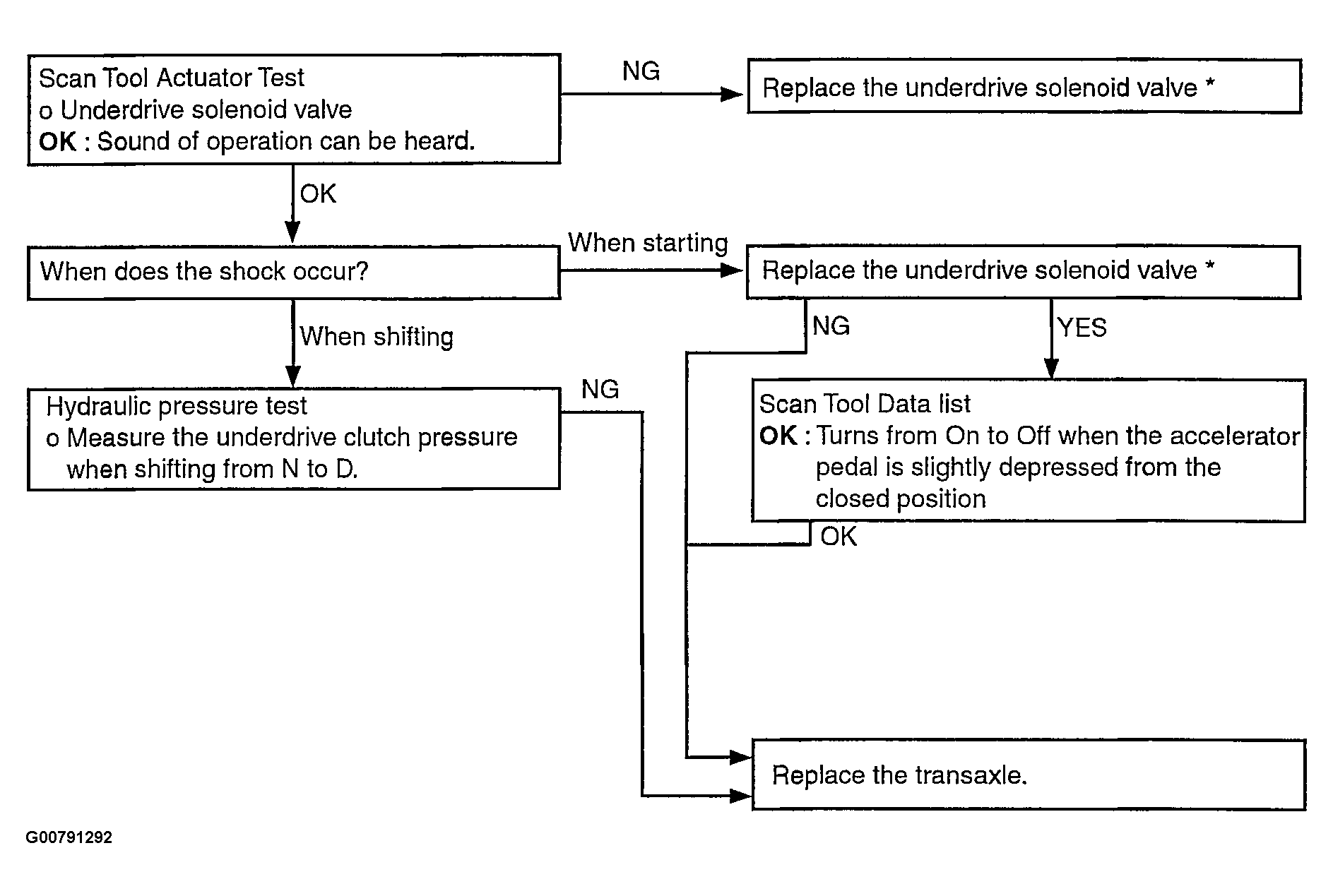

Fig 2: Inspection Procedure 7 Diagnostic Flow Chart
G00791292Courtesy of HYUNDAI MOTOR CO.
