Home › Hyundai › 2004 › Santa Fe Base, Standard › Repair and Diagnosis › Steering › Power Steering › Steering System › Mechanical Power Steering System › Power Steering Gear Box › Components

Power Steering Gear Box: Components

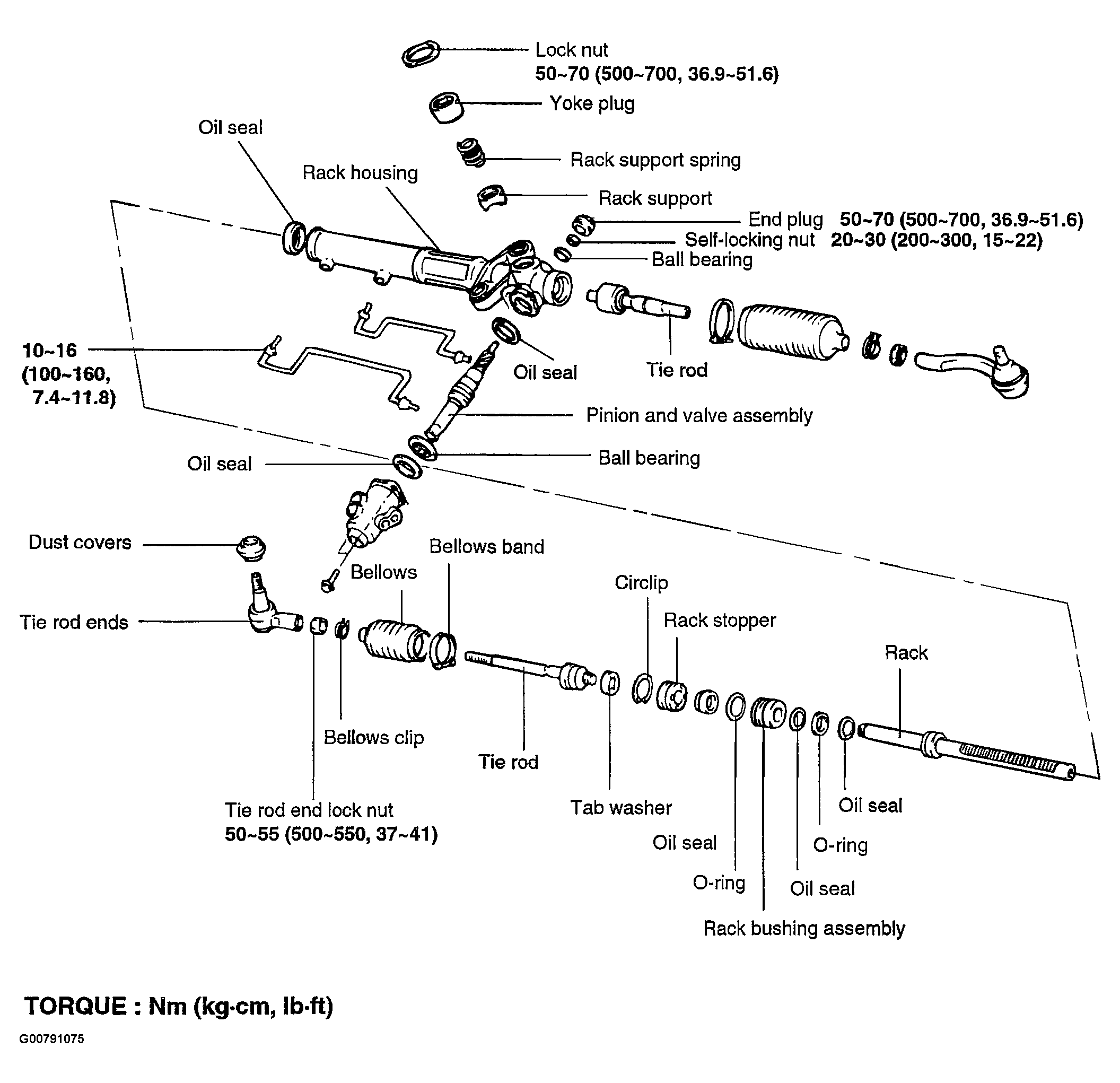

Fig 1: Power Steering Gear Box Components
G00791075Courtesy of HYUNDAI MOTOR CO.
