Front Hub/Knuckle: Removal

Raise the vehicle and remove the front wheel.
Remove the wheel speed sensor from the knuckle.
Remove the brake caliper and suspend it with a wire.

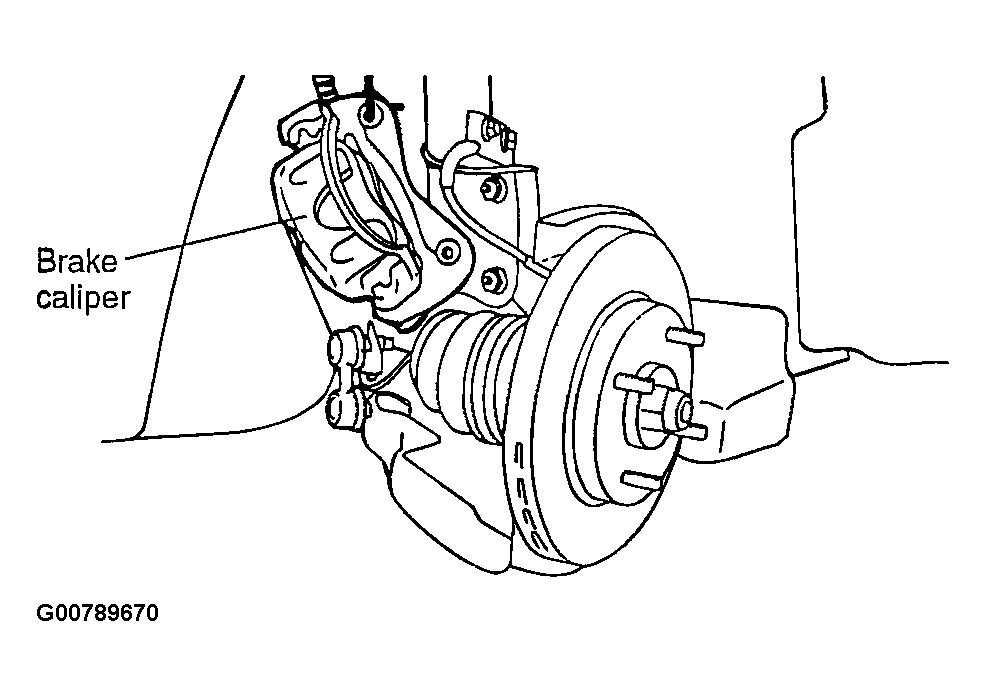

Fig 1: Identifying Brake Caliper
Courtesy of HYUNDAI MOTOR CO.
Remove the split pin, the castle nut and the washer from the front hub.

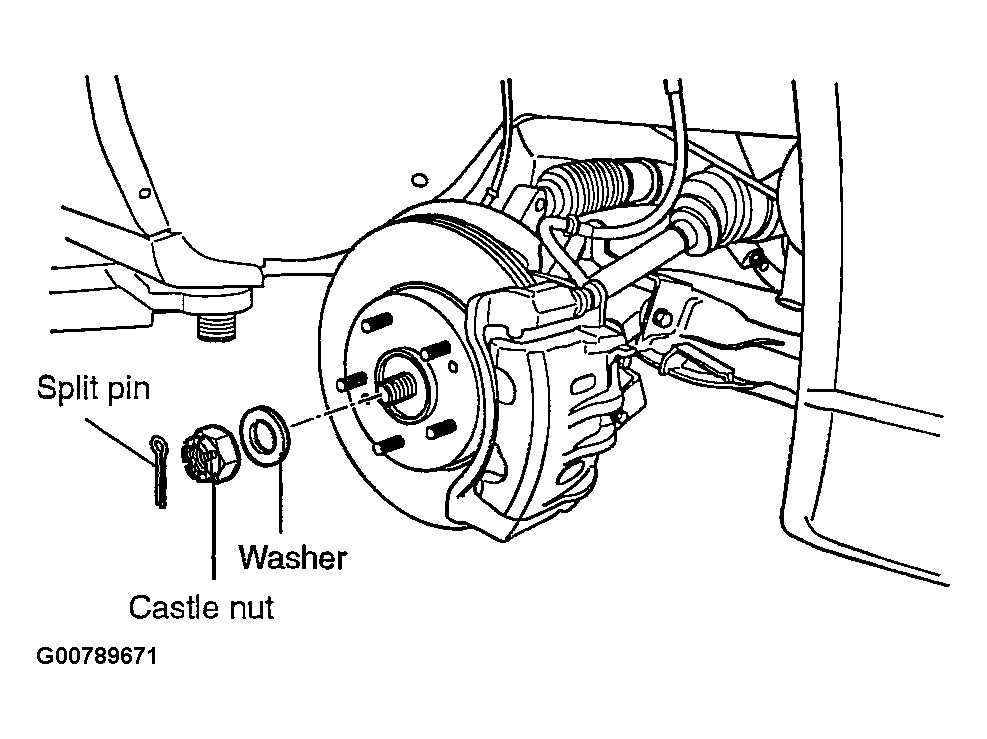

Fig 2: Identifying Split Pin, Castle Nut & Washer
Courtesy of HYUNDAI MOTOR CO.
Remove the strut and the two bolts mounting the knuckle.

Fig 3: Identifying Strut-To-Knuckle Bolts
Courtesy of HYUNDAI MOTOR CO.
Disconnect the tie rod end ball joint from the knuckle using the special tool (09568-34000).

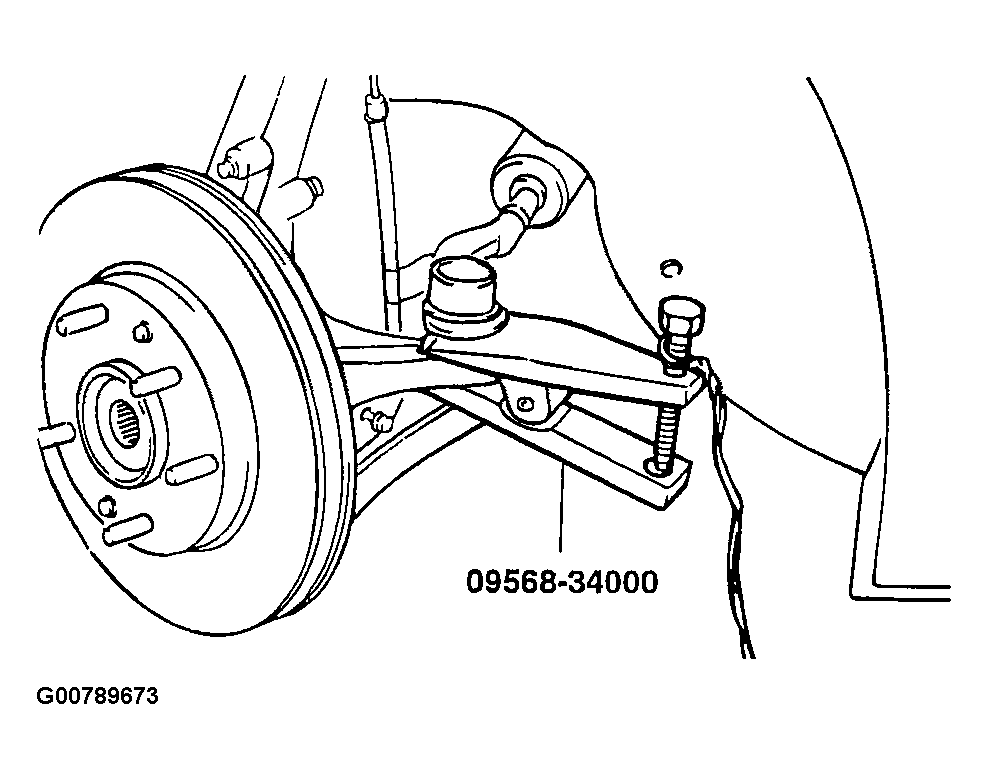

Fig 4: Disconnecting Tie Rod End Ball Joint From Knuckle
Courtesy of HYUNDAI MOTOR CO.
Remove the lower arm ball joint mounting bolt.

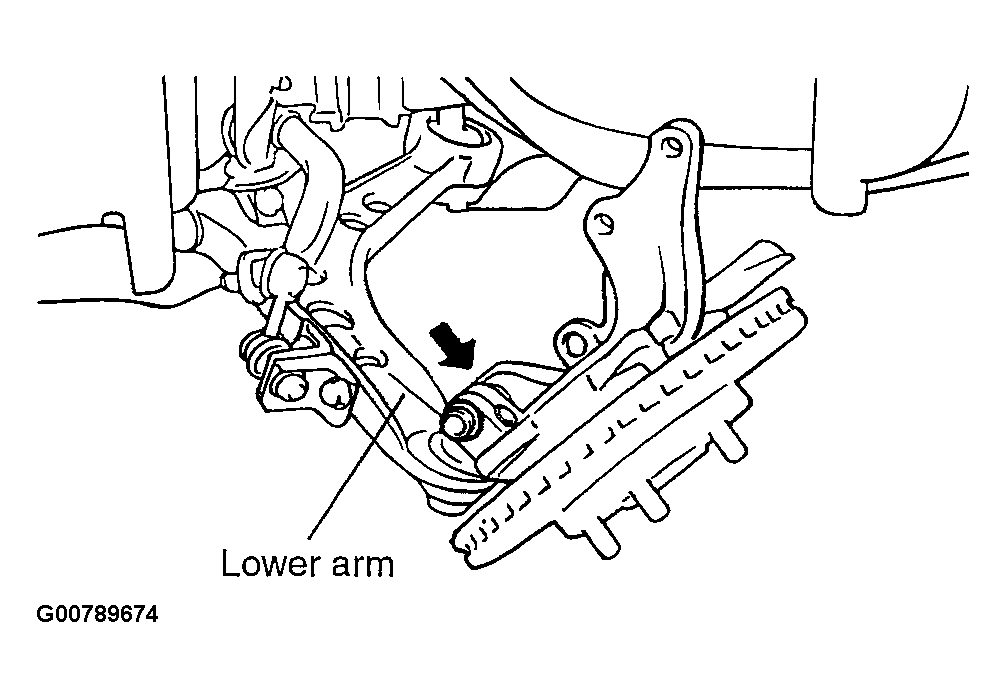

Fig 5: Identifying Lower Arm Ball Joint Bolt
Courtesy of HYUNDAI MOTOR CO.
Using a plastic hammer, drive out the axle hub from the driveshaft.

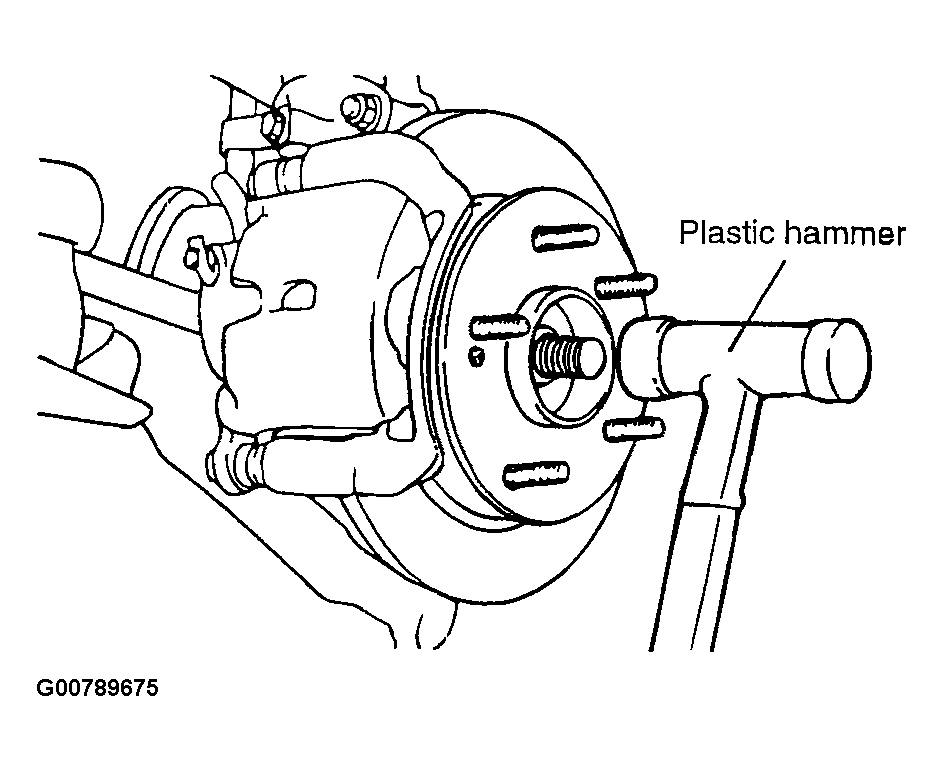

Fig 6: Driving Out The Axle Hub From Driveshaft
Courtesy of HYUNDAI MOTOR CO.
Remove the front axle assembly.
