Clutch Cover And Disc: Components

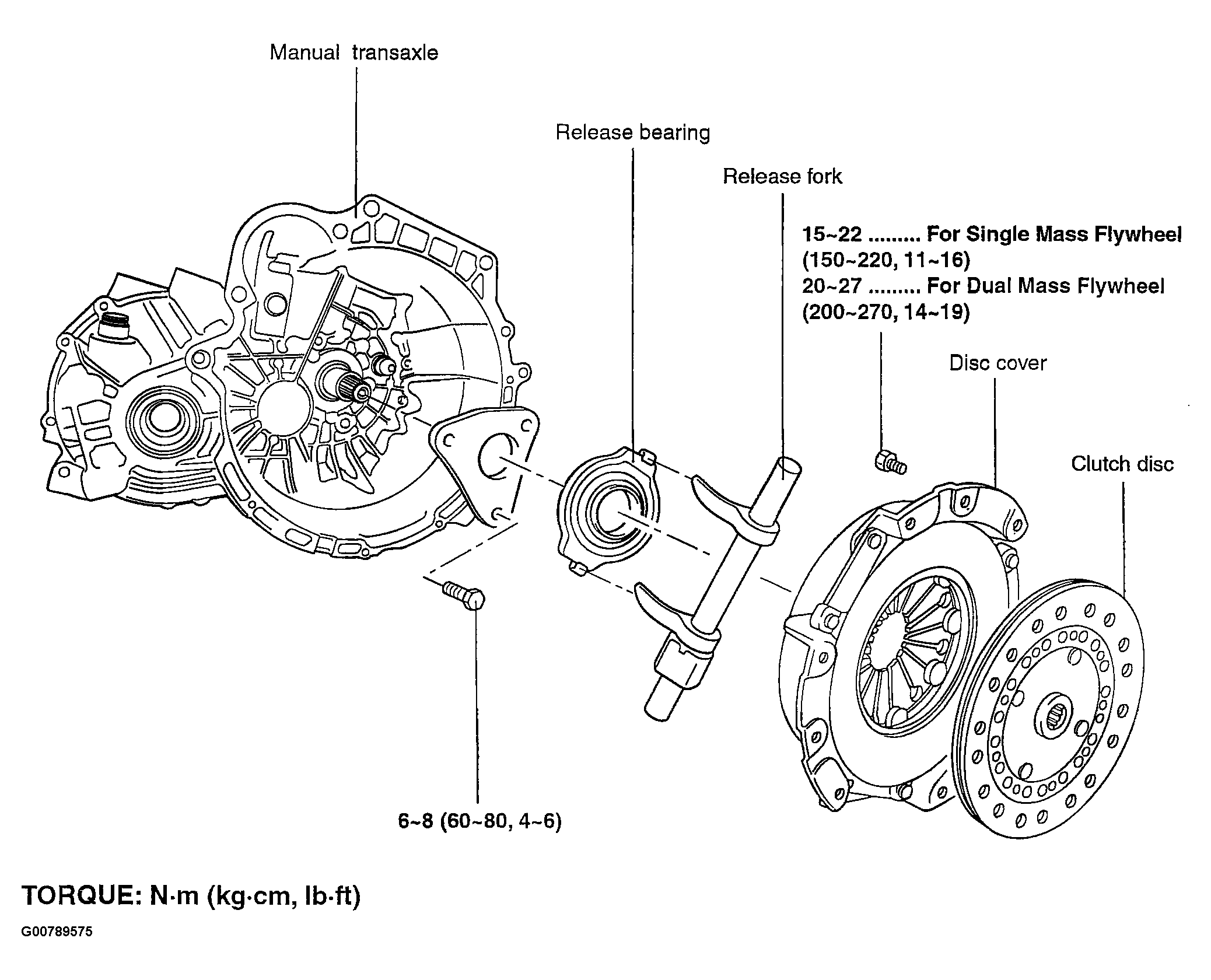

Fig 1: Identifying Clutch Cover & Disc Components
G00789575Courtesy of HYUNDAI MOTOR CO.
