Problem Chart (M/T)
Problem Chart (M/T)

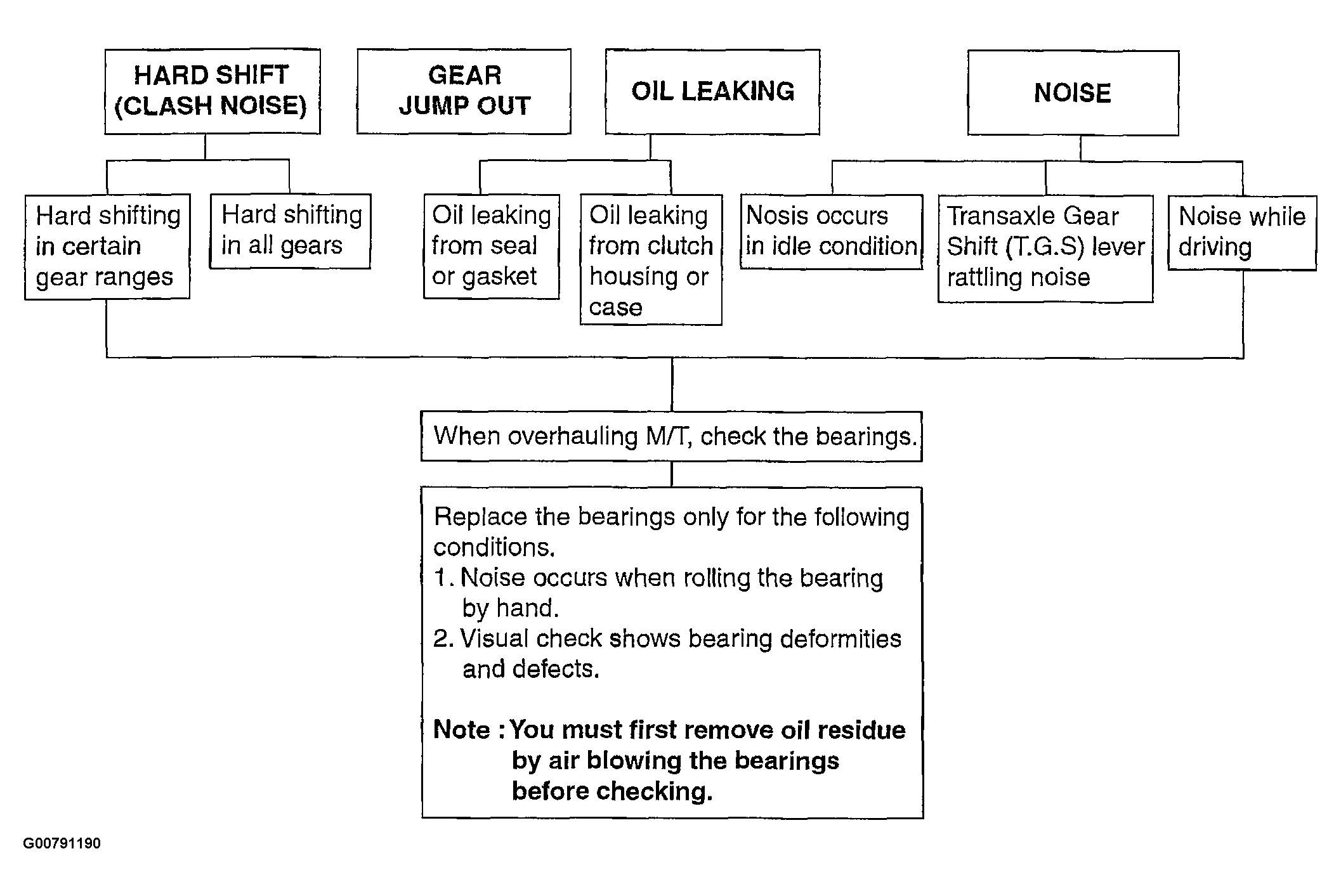

Fig 1: Problem Flow Chart (M/T)
Courtesy of HYUNDAI MOTOR CO.

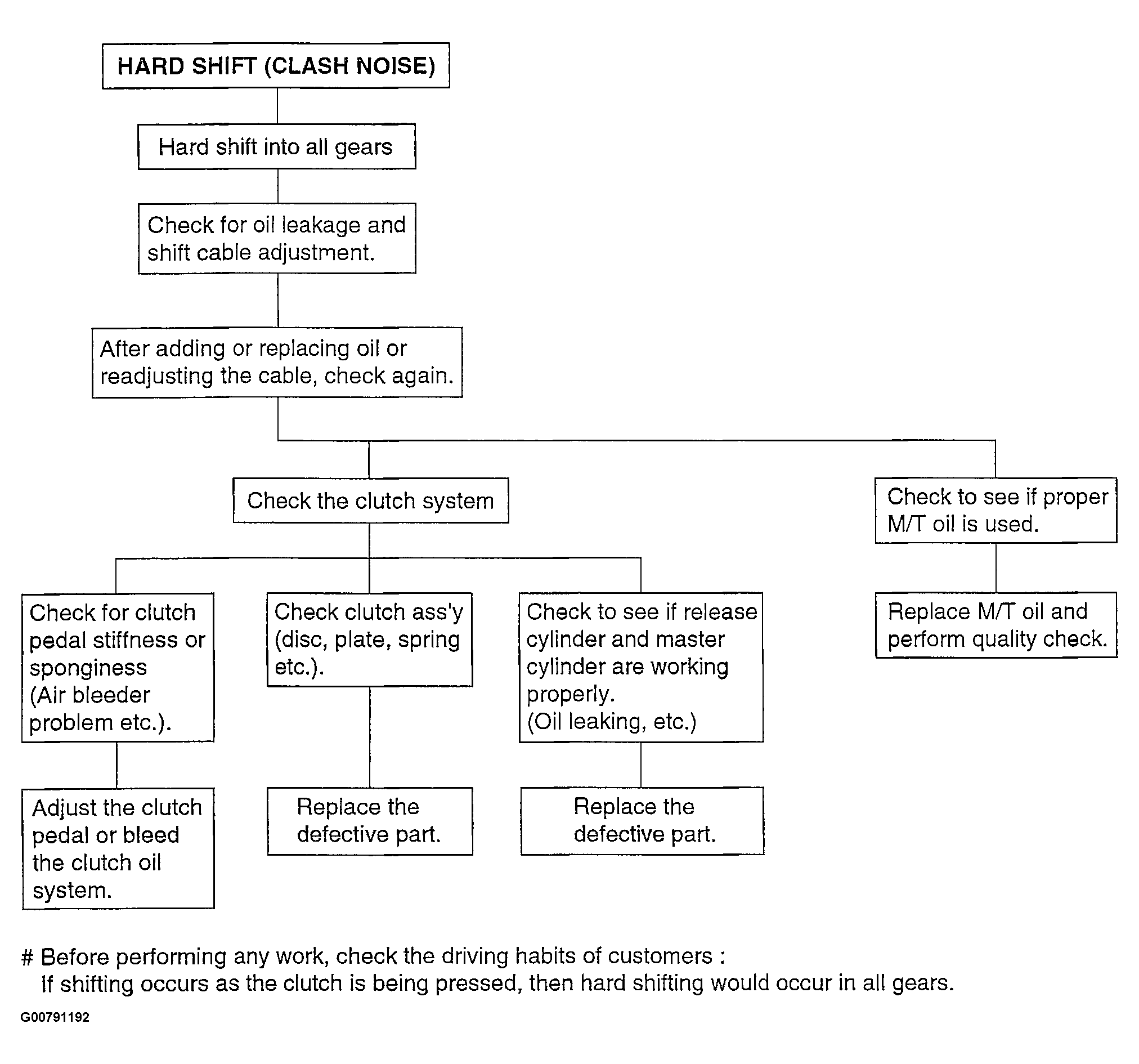

Fig 2: Hard Shift (Clash Noise) Flow Chart
Courtesy of HYUNDAI MOTOR CO.

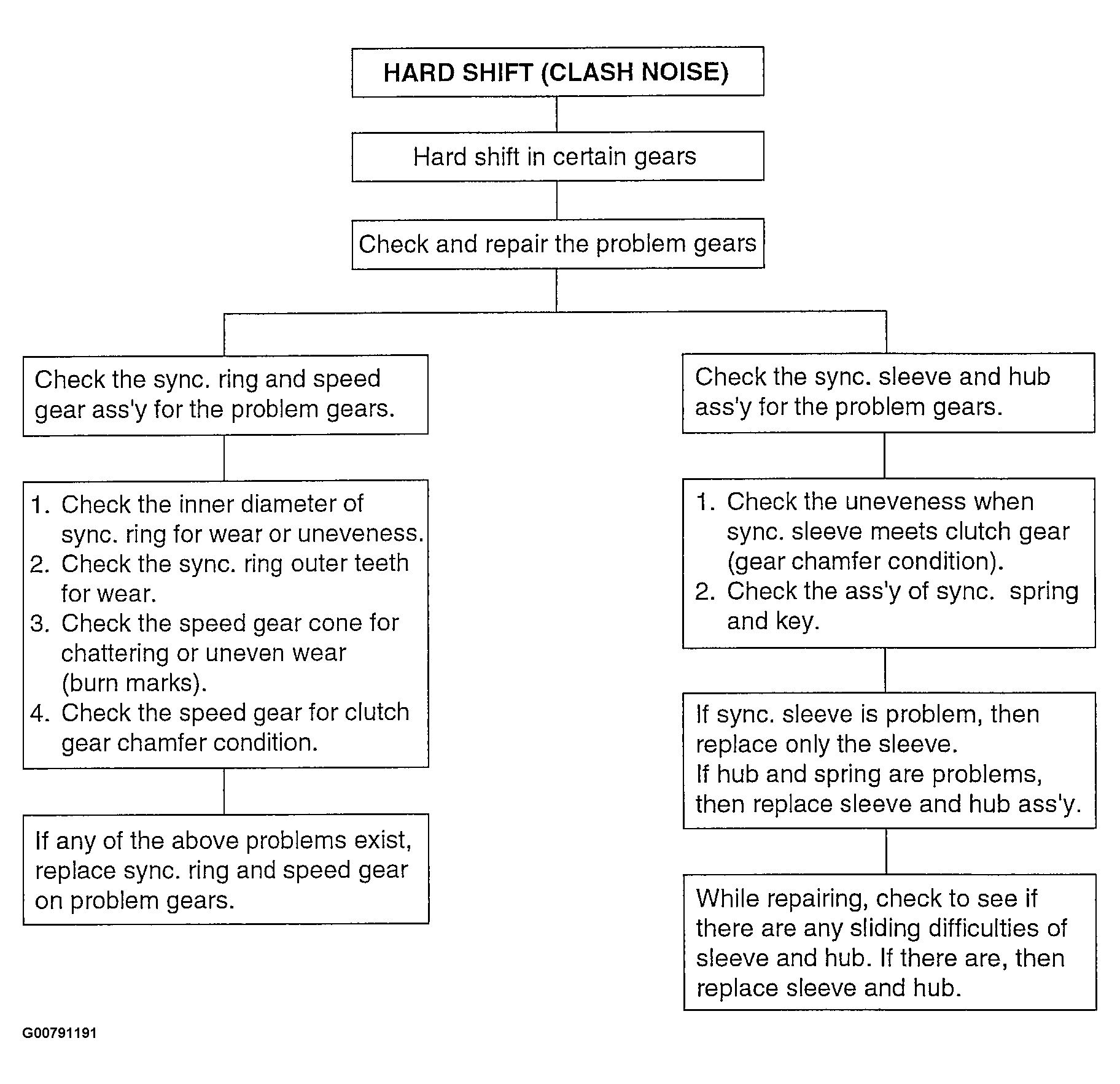

Fig 3: Hard Shift (Clash Noise) Flow Chart
Courtesy of HYUNDAI MOTOR CO.

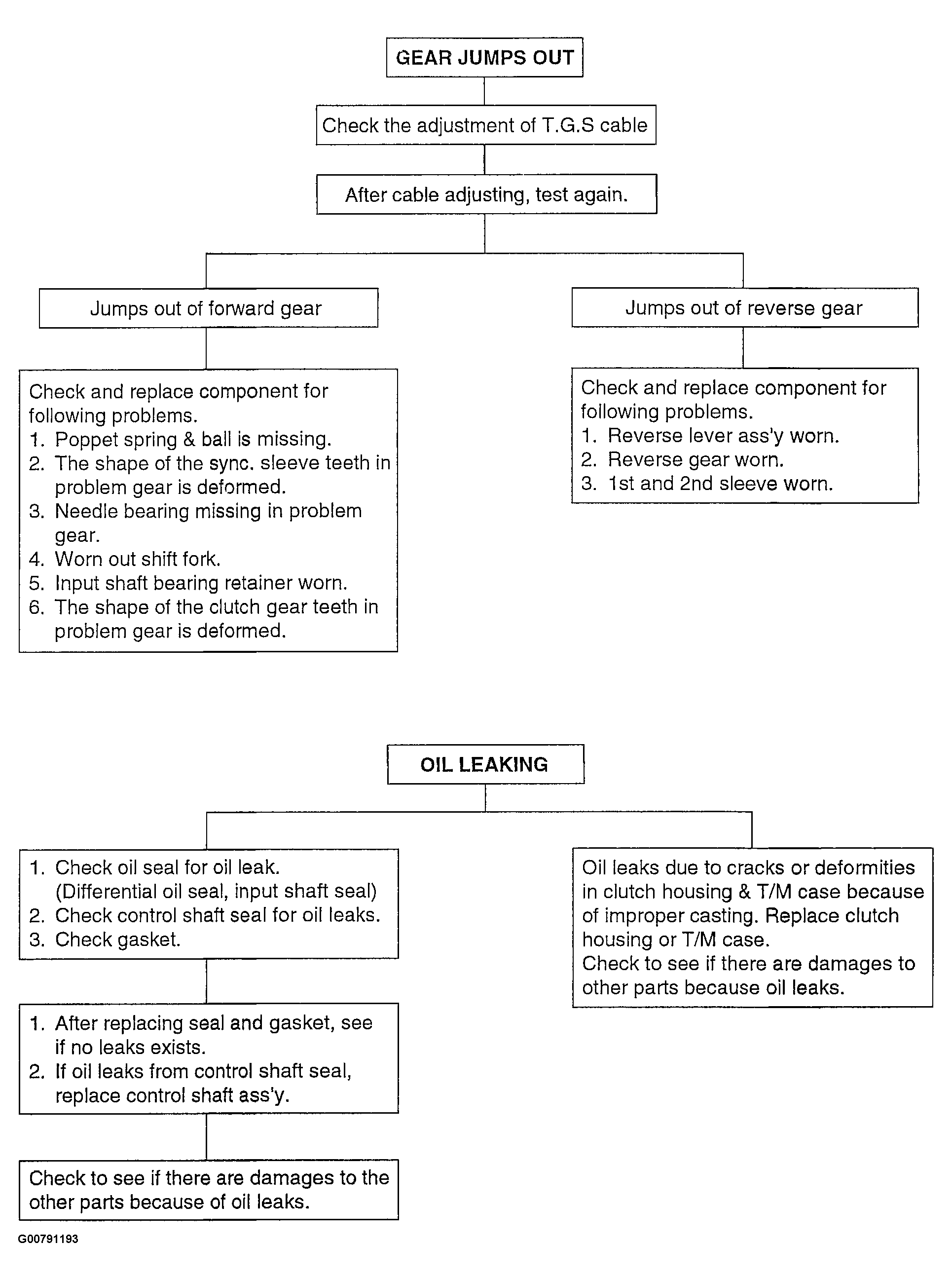

Fig 4: Gear Jumps Out & Oil Leaking Flow Chart
Courtesy of HYUNDAI MOTOR CO.

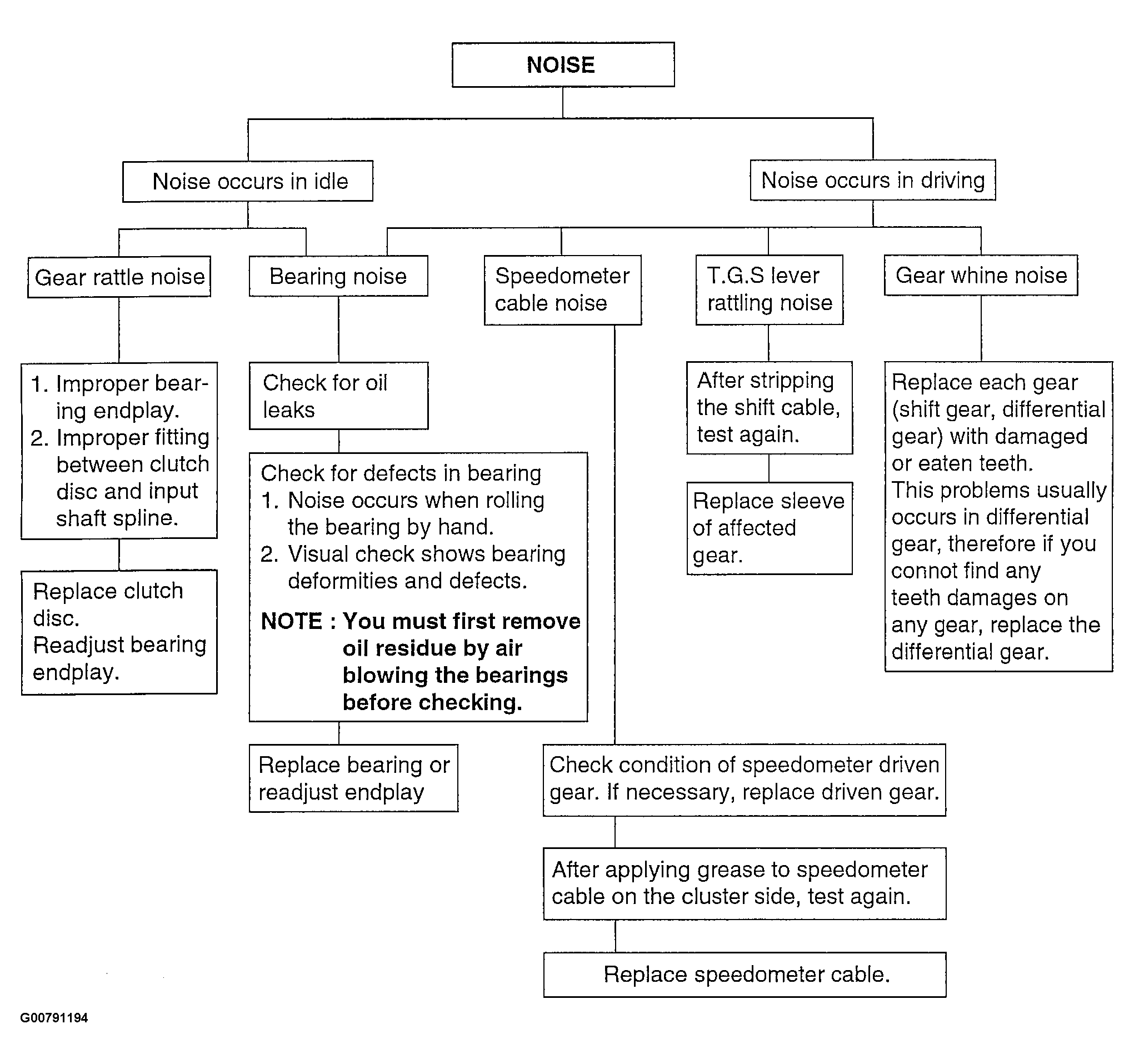

Fig 5: Noise Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
