Hyundai
›
2004
›
Santa Fe LX, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System (3.5L)
›
MFI Control System
›
Electric Throttle System
›
Circuit Diagram
Circuit Diagram

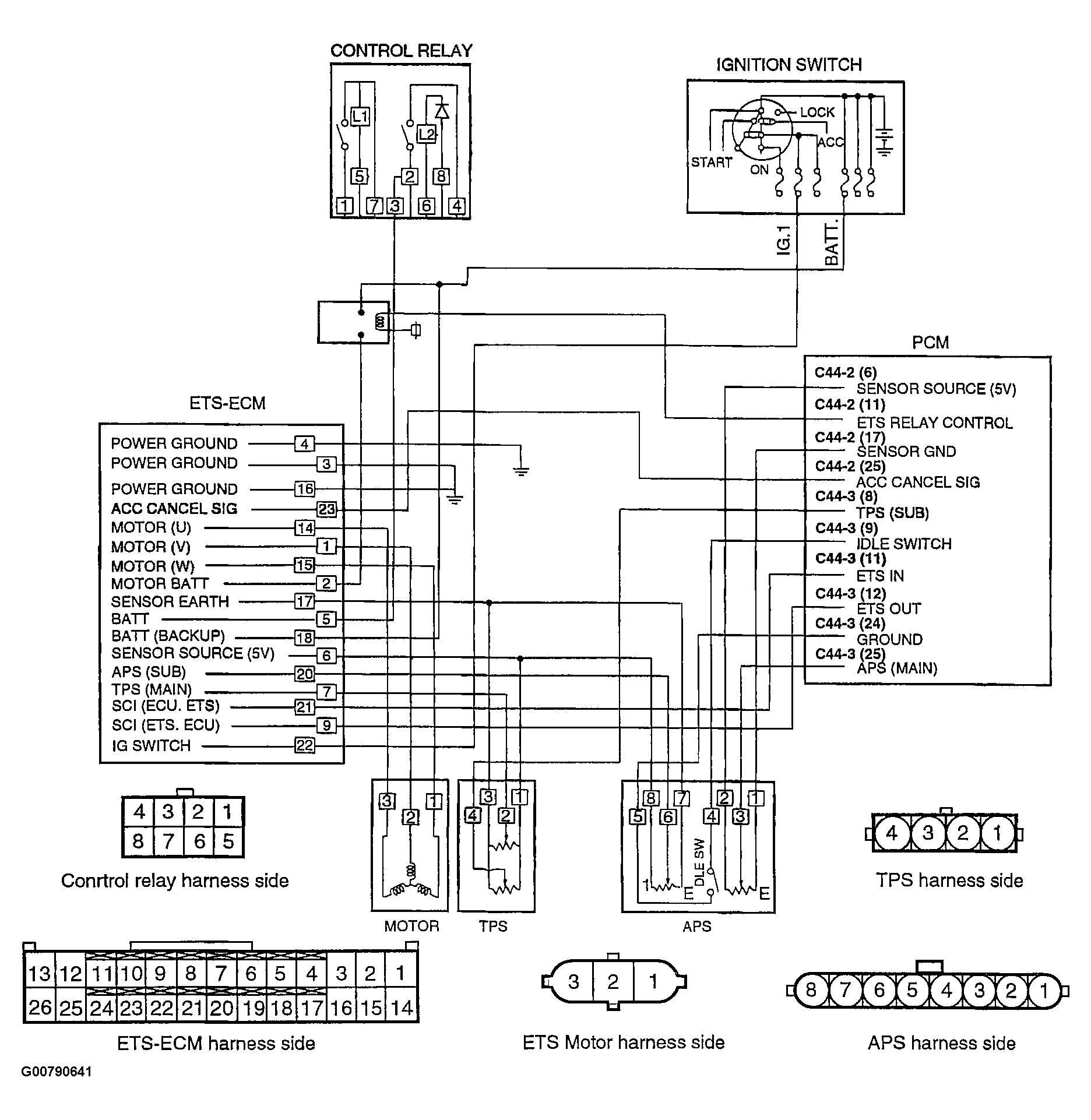

Fig 1: Electronic Throttle System & Accelerator Position Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
