Ignition System
Ignition System

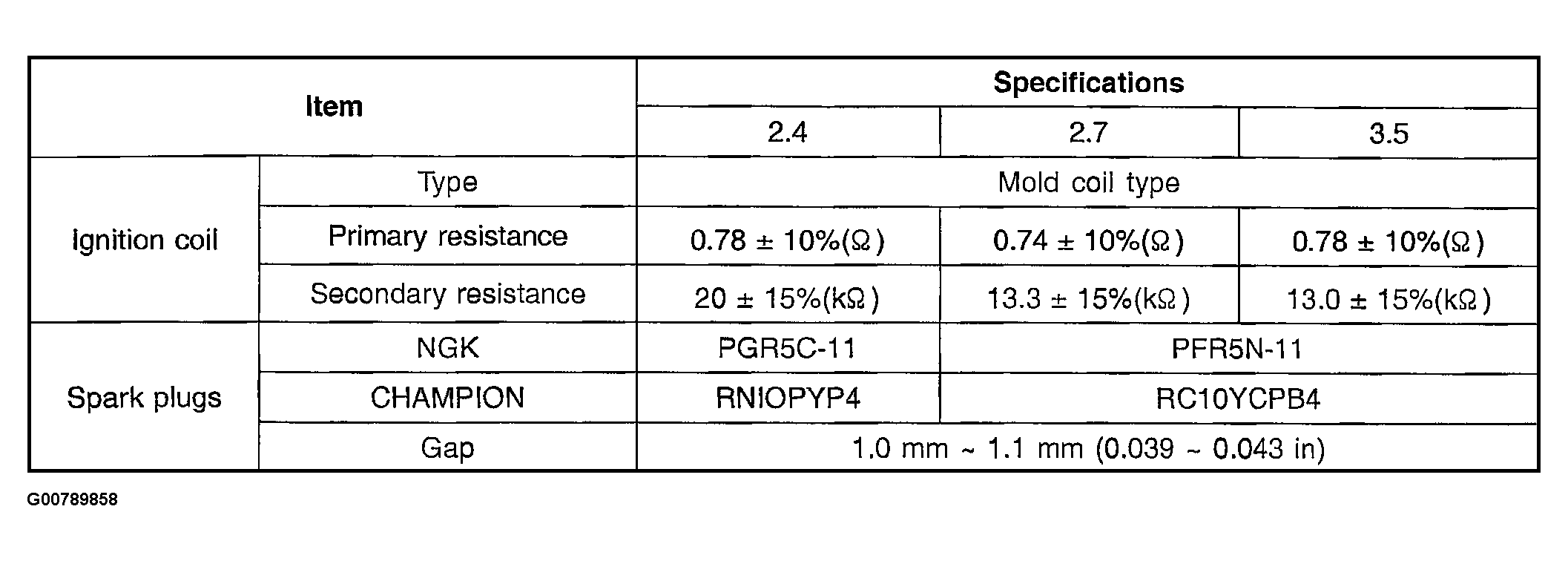

Fig 1: Ignition System Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
