Troubleshooting Guide Chart

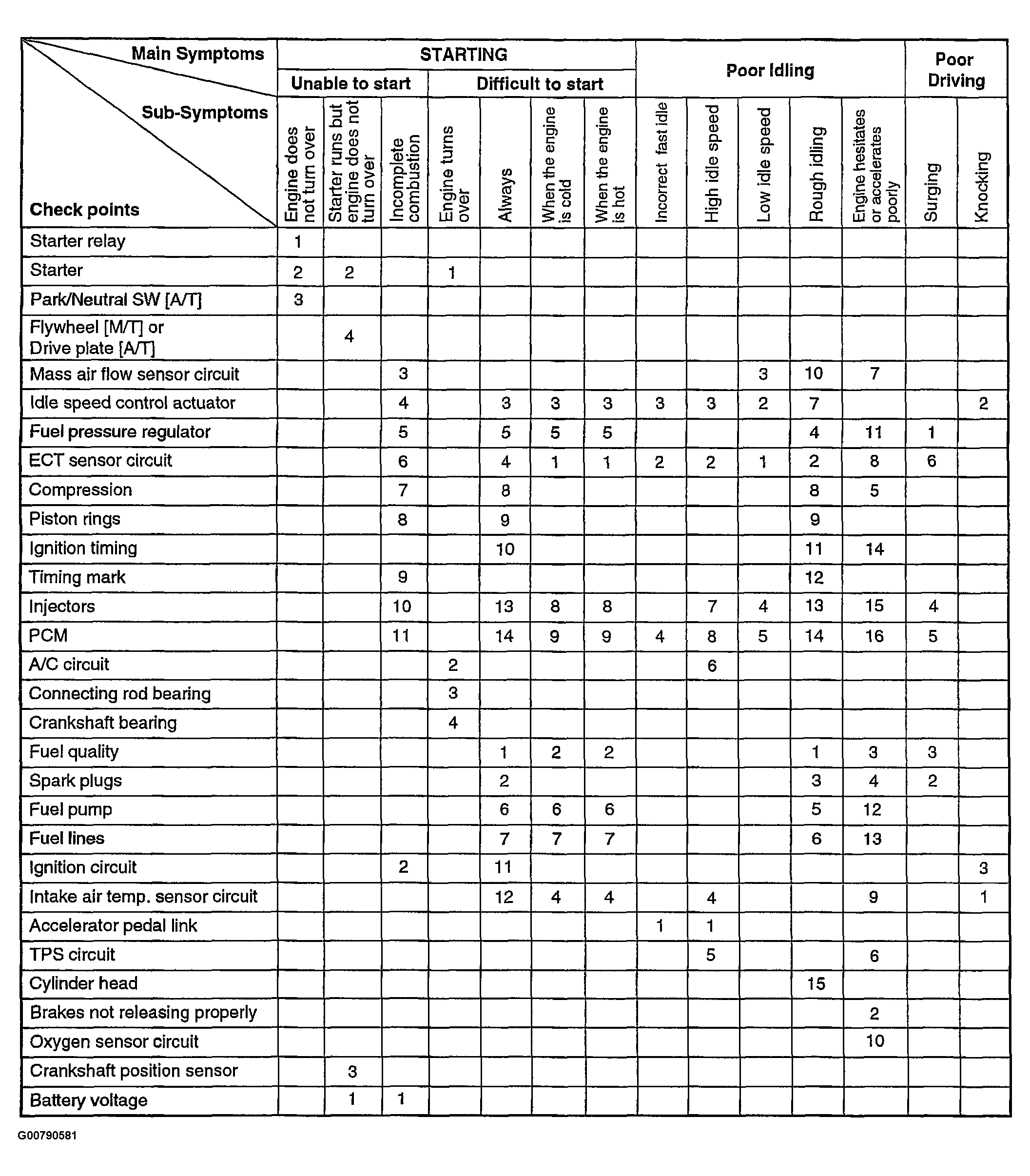

Fig 1: Troubleshooting Guide Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

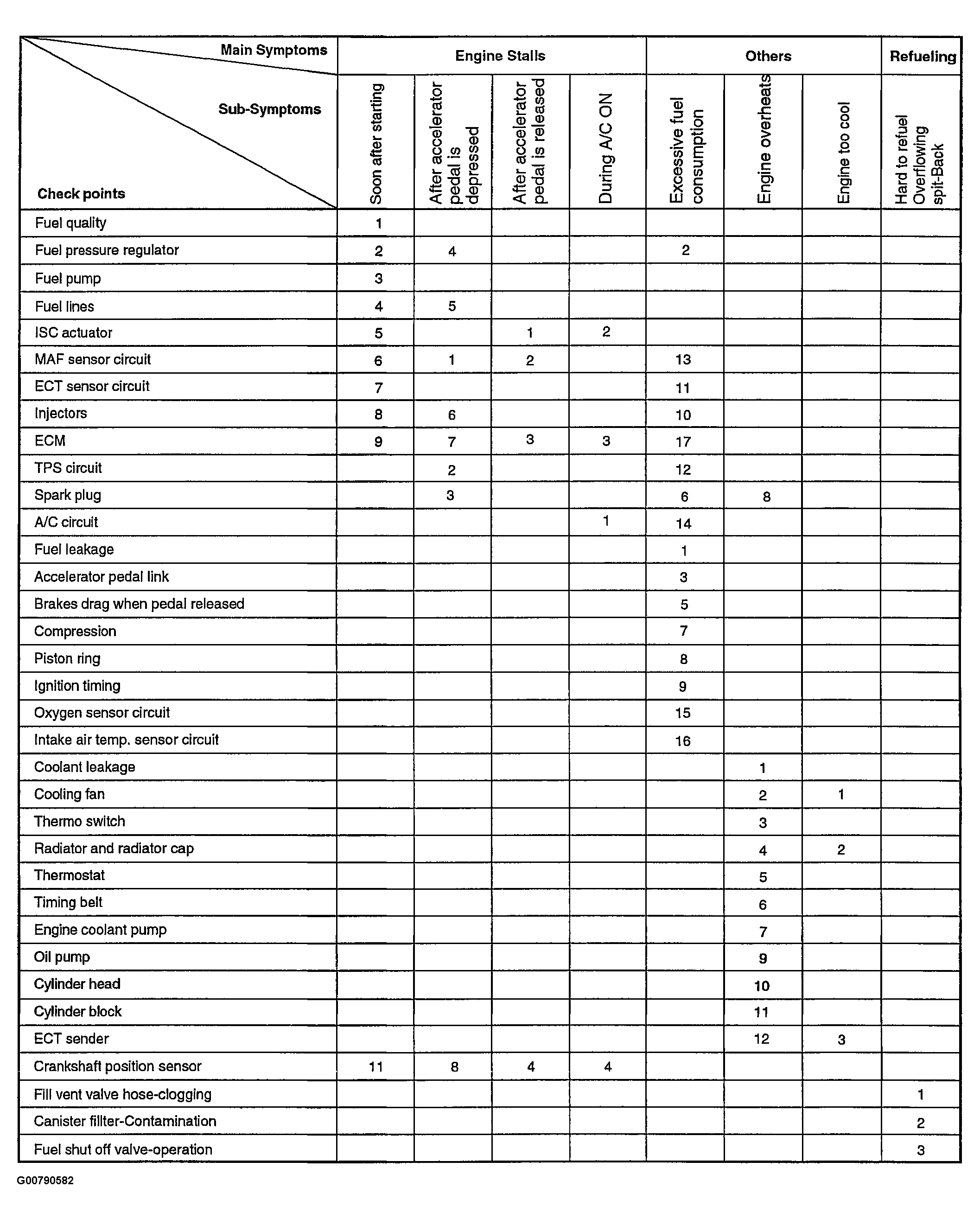

Fig 2: Troubleshooting Guide Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
NOTE:
The number herein means the check order.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
