Using Hi-Scan (Pro)

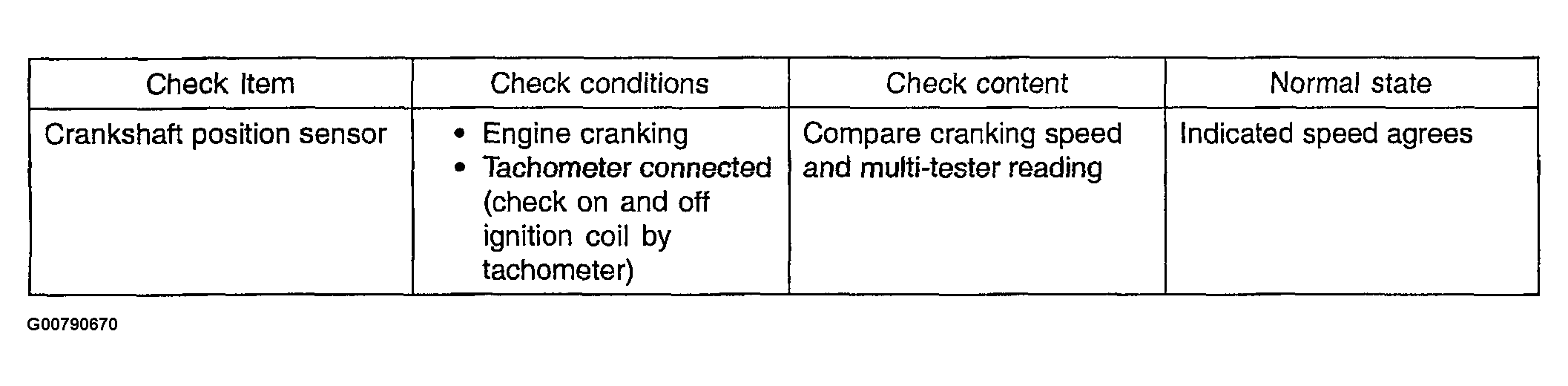

Fig 1: Crankshaft Position Sensor Check Item Table (1 Of 2)
G00790670Courtesy of HYUNDAI MOTOR CO.

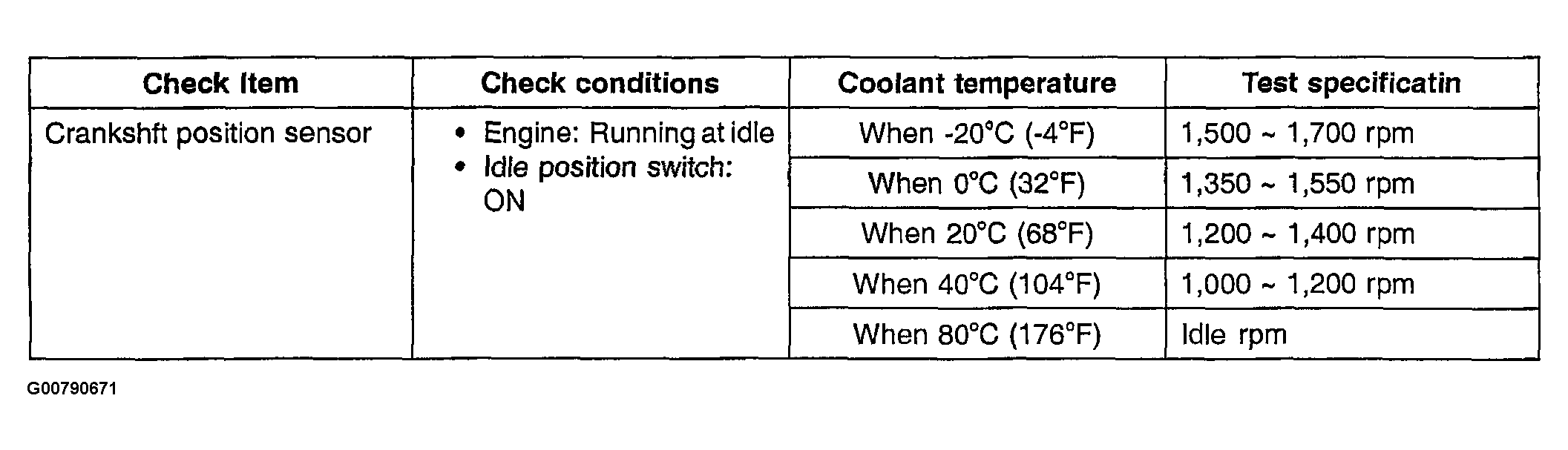

Fig 2: Crankshaft Position Sensor Check Item Table (2 Of 2)
G00790671Courtesy of HYUNDAI MOTOR CO.
