MFI Control System: Troubleshooting: Notes

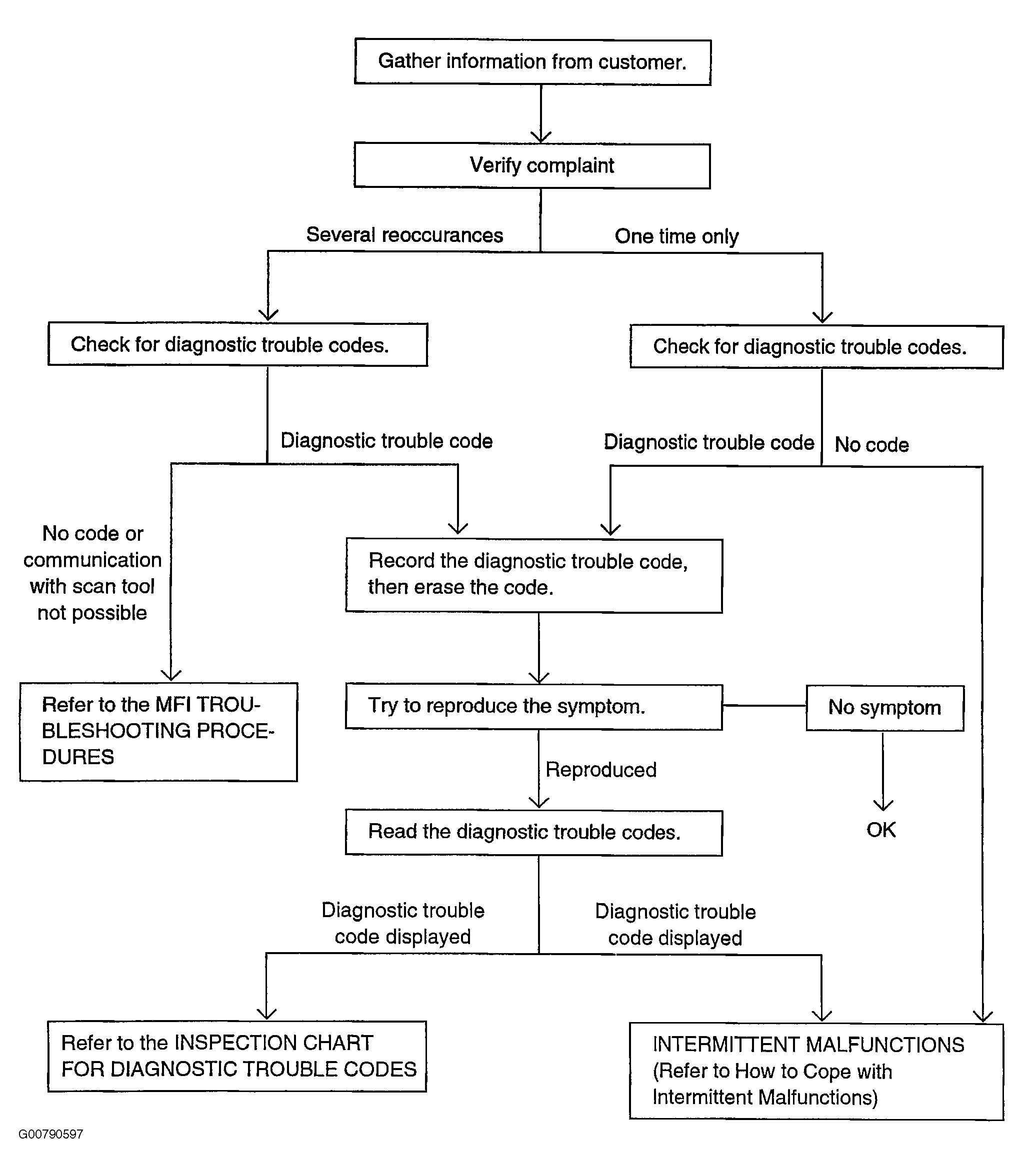

Fig 1: Diagnostic Troubleshooting Flow Chart
G00790597Courtesy of HYUNDAI MOTOR CO.
