Operating Elements & Their Function

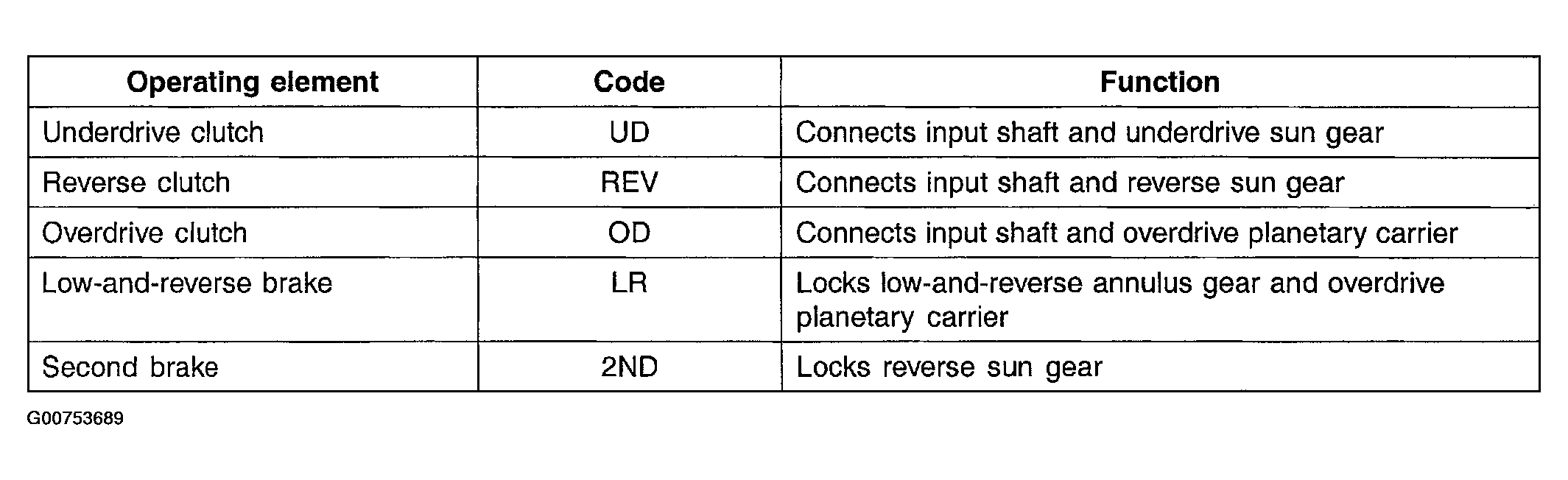

Fig 1: Operating Elements & Function Table
G00753689Courtesy of HYUNDAI MOTOR CO.
