Immobilizer Control Module: Removal

Remove the center fascia panel using a screwdriver and disconnect the switch connectors.

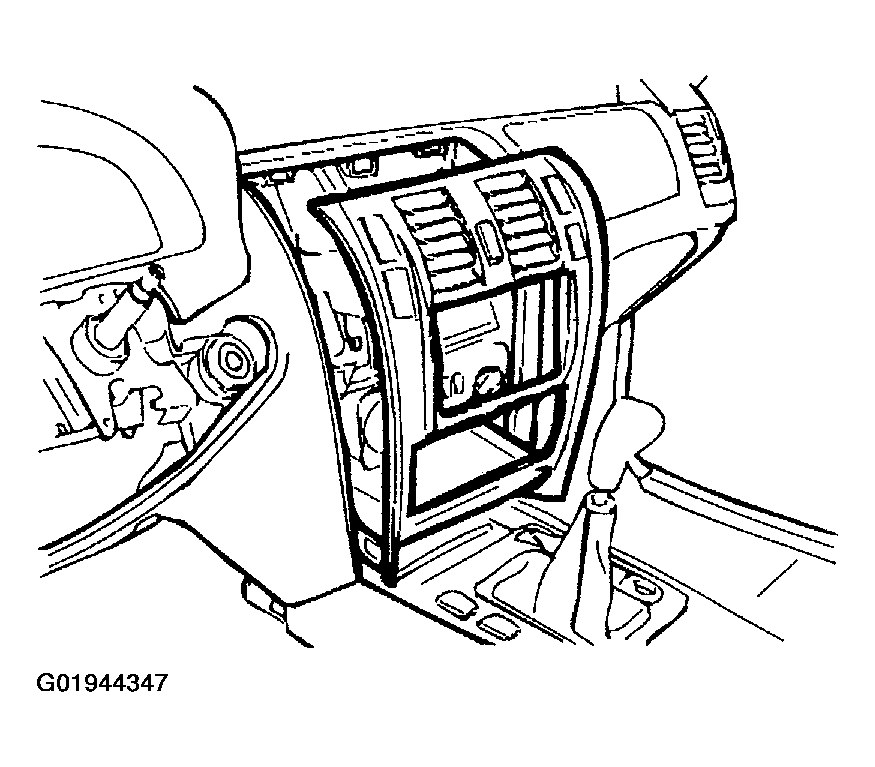

Fig 1: Removing Center Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the audio unit.

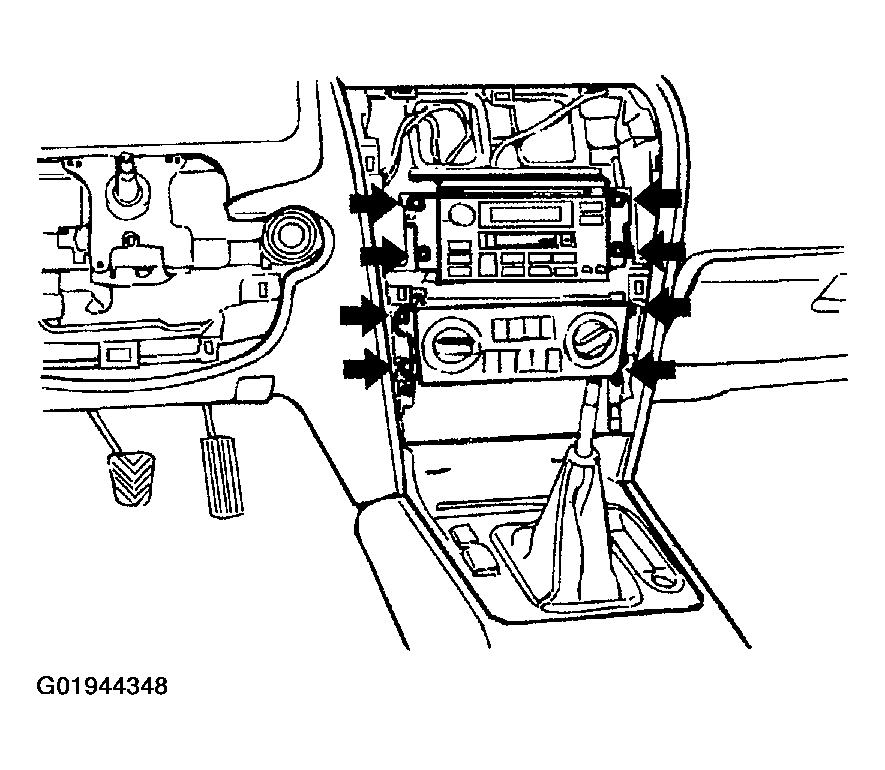

Fig 2: Identifying Audio Unit Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the flange nuts holding the ICM (Immobilizer Control Module) from left hand center fascia support bracket.

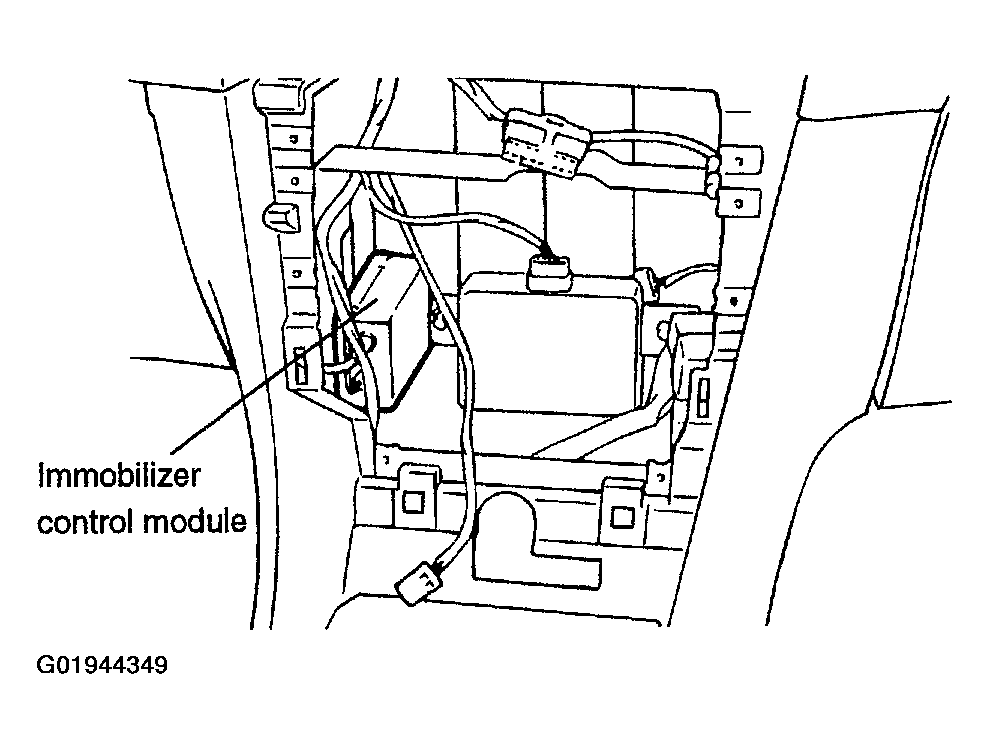

Fig 3: Identifying Immobilizer Control Module
Courtesy of HYUNDAI MOTOR CO.
