Transaxle Range Switch Continuity Check

WARNING: This page is about a different variant/trim than selected.

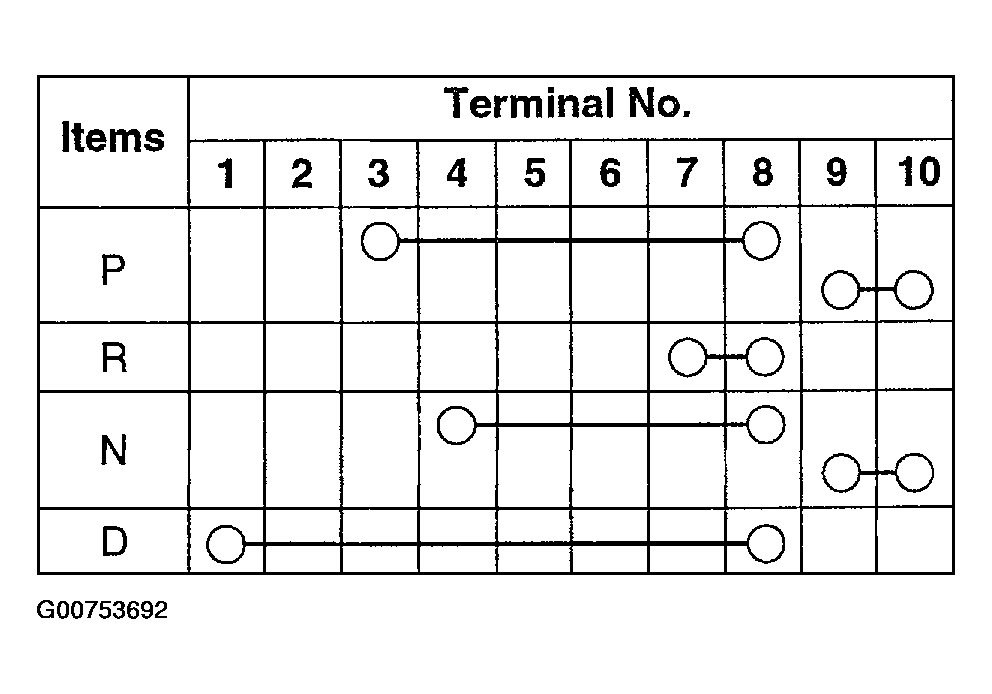

Fig 1: TR Switch Continuity Table
G00753692Courtesy of HYUNDAI MOTOR CO.

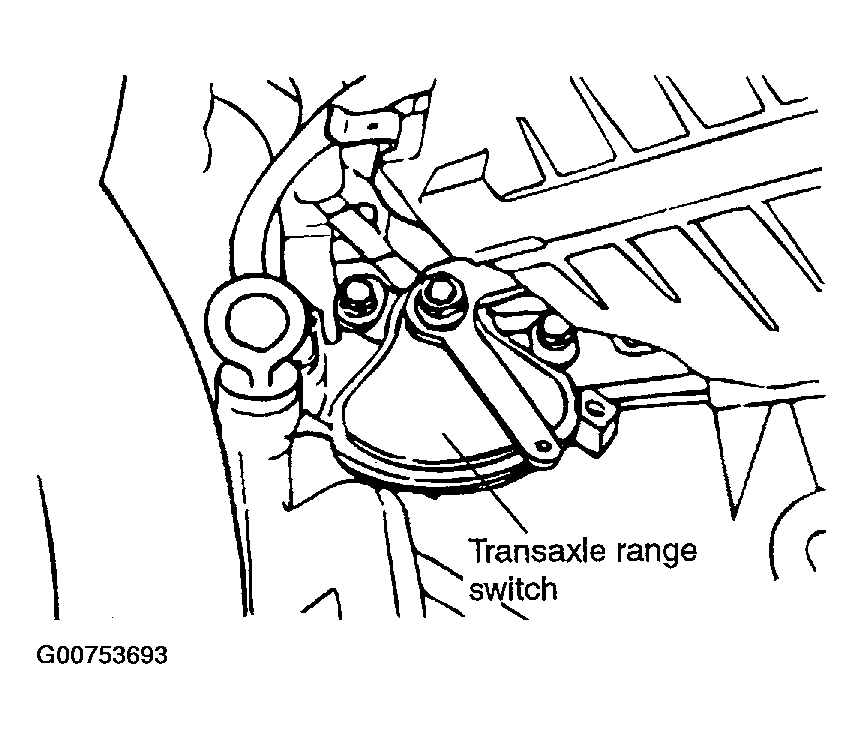

Fig 2: Identifying TR Switch
G00753693Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying TR Switch Positions & Connector Terminals
G00753694Courtesy of HYUNDAI MOTOR CO.
