Automatic Transaxle Shift Control: Components

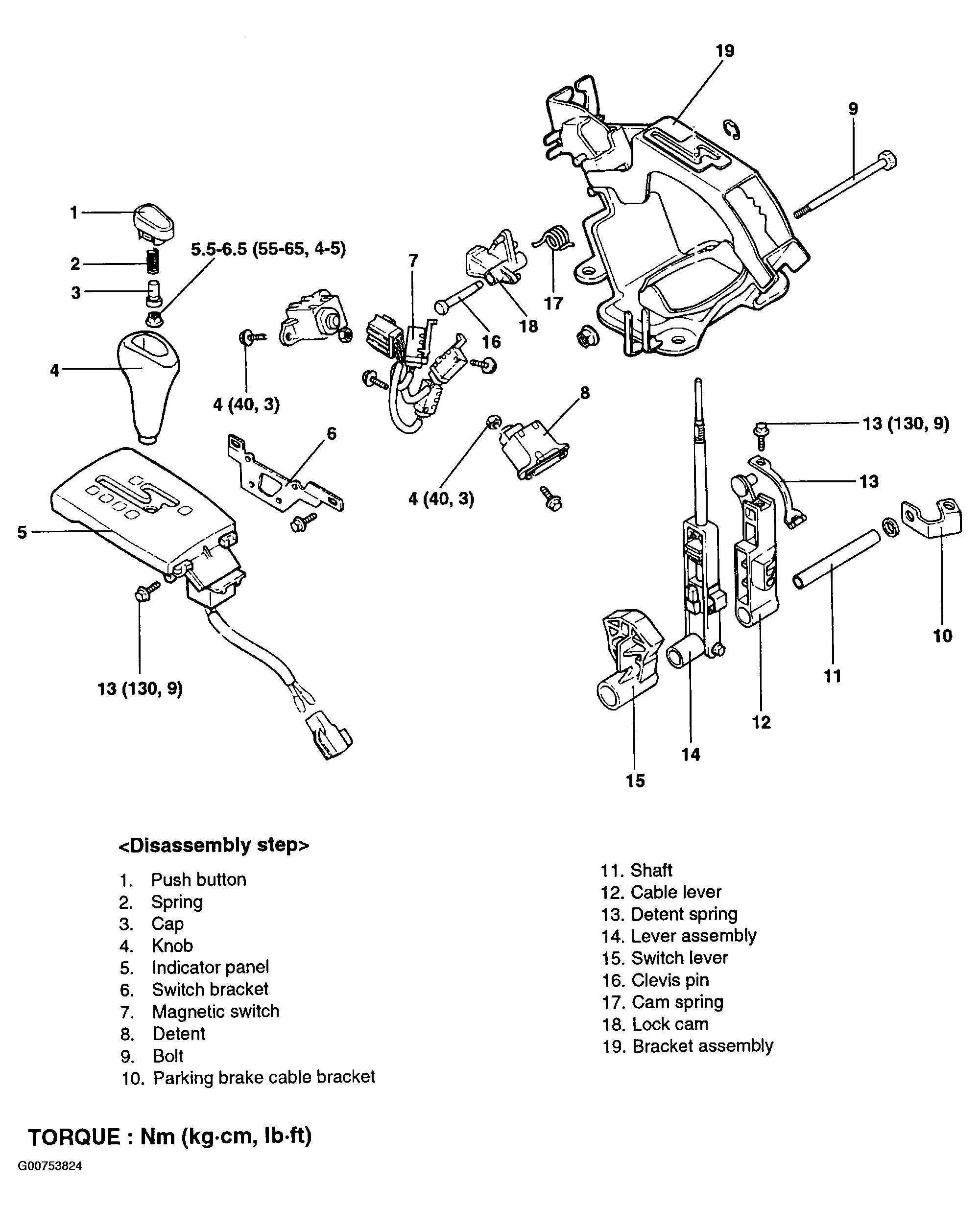

Fig 1: Automatic Transaxle Shift Control Components
G00753824Courtesy of HYUNDAI MOTOR CO.
