ETACS Module Input Signal Test: Notes

Disconnect the wire connectors (B) from the ETACS module (A).
Inspect the connectors (B) on wire harness side as shown in the below.

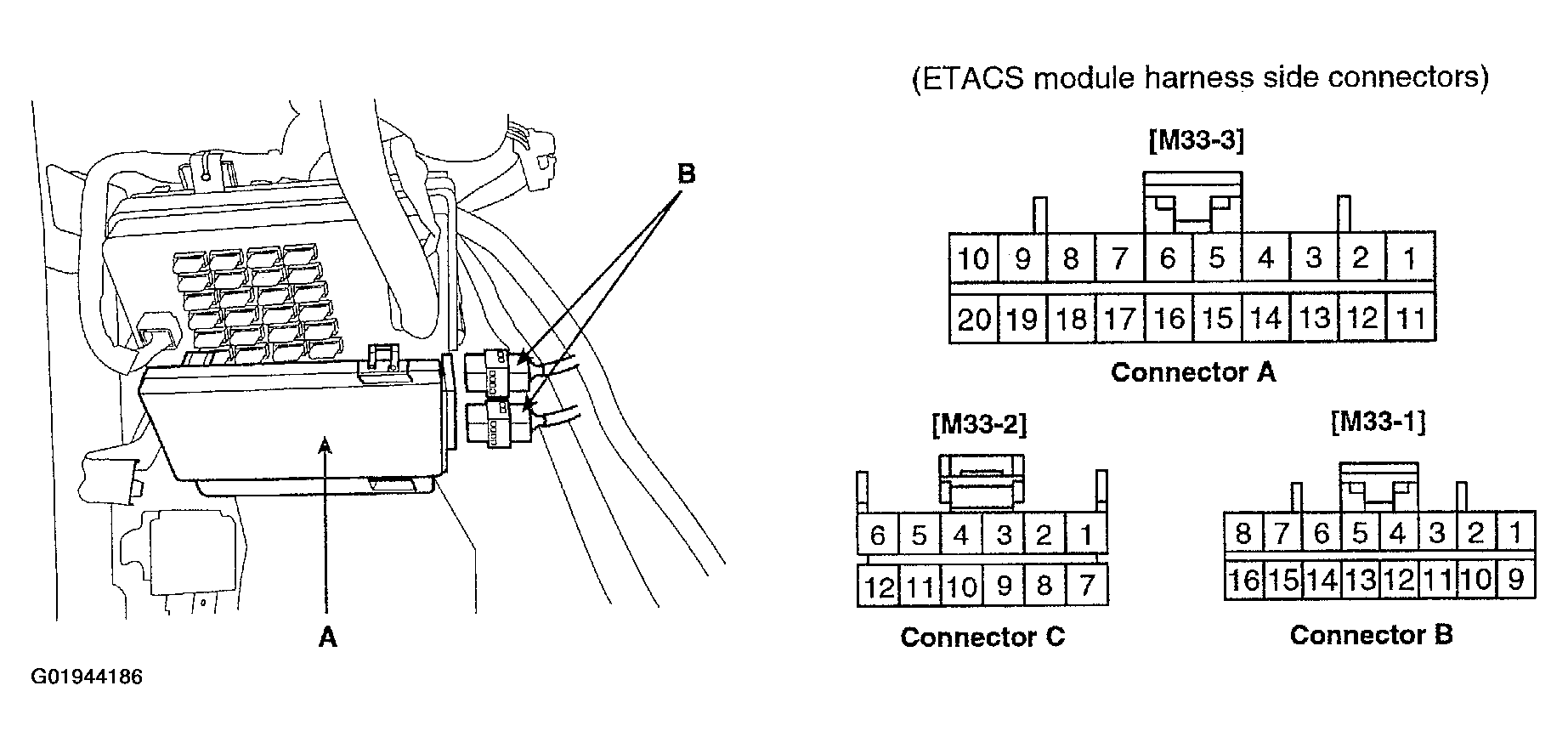

Fig 1: Identifying ETACS Module Connector Terminals (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

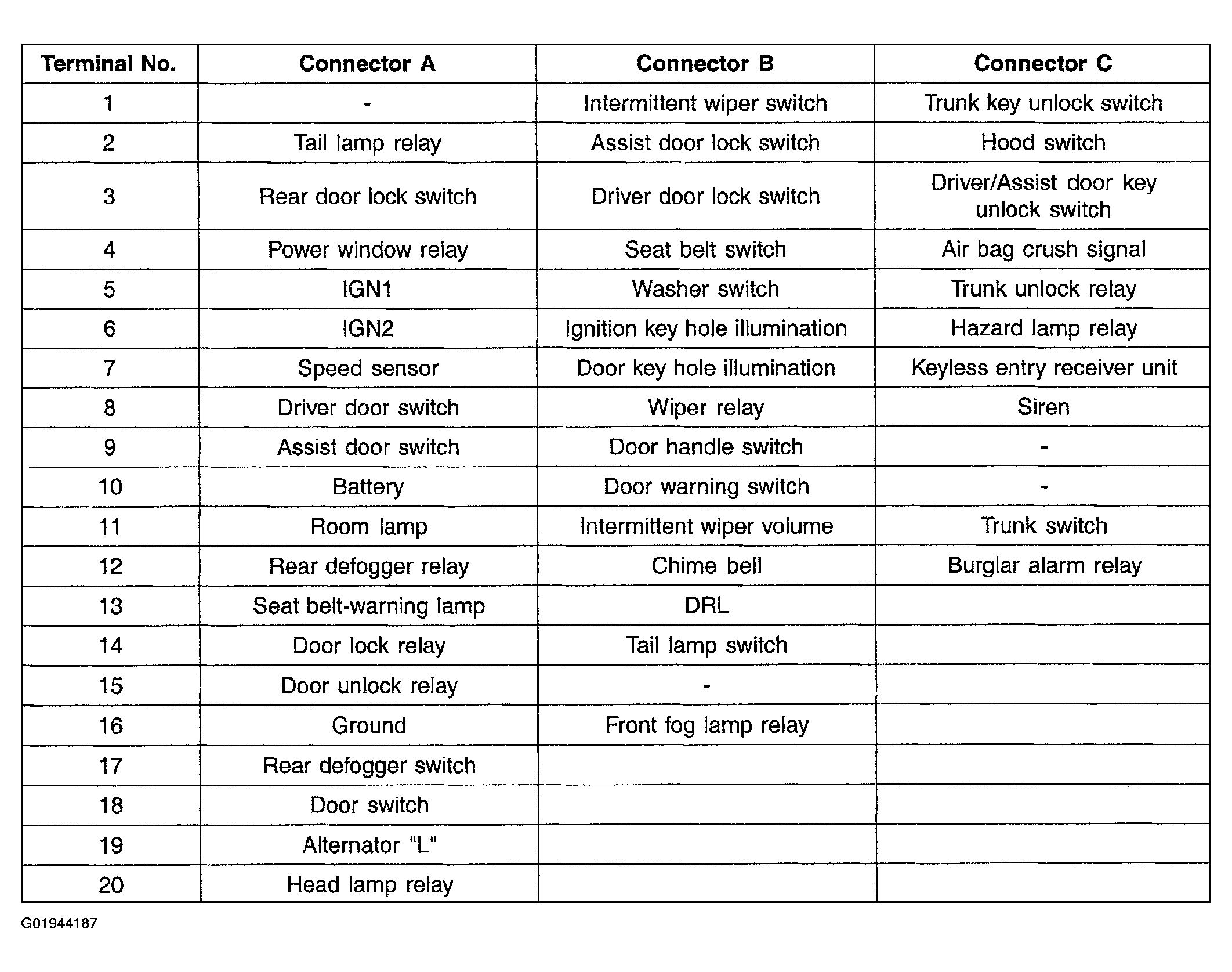

Fig 2: Identifying ETACS Module Connector Terminals (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
