Home › Hyundai › 2004 › Sonata GLS › Repair and Diagnosis › Engine Mechanical › Auxiliary Emission Control Systems › Crankcase Emission Control System › Components

Crankcase Emission Control System: Components

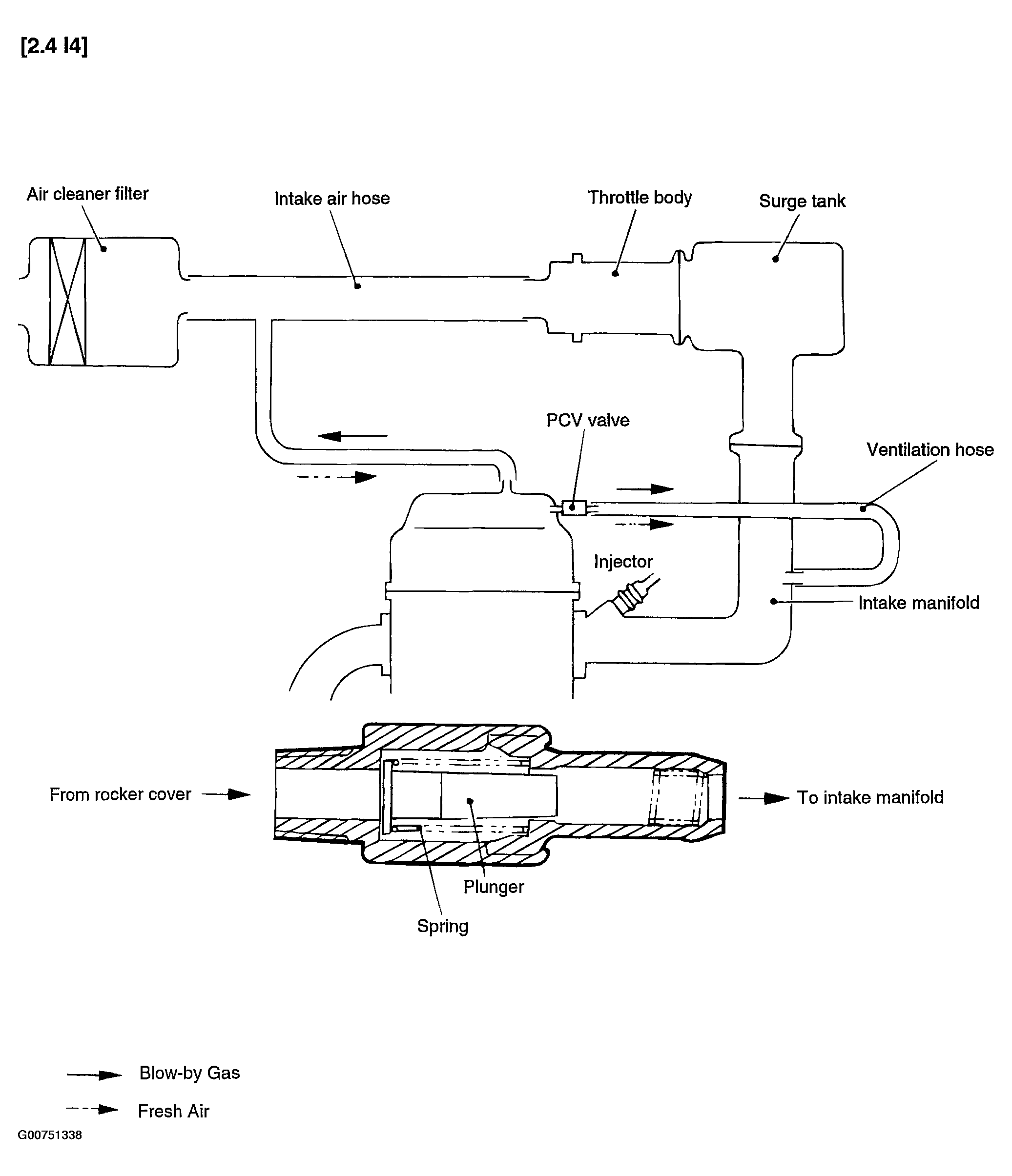

Fig 1: Crankcase Emission Control System Components 2.4L
G00751338Courtesy of HYUNDAI MOTOR CO.

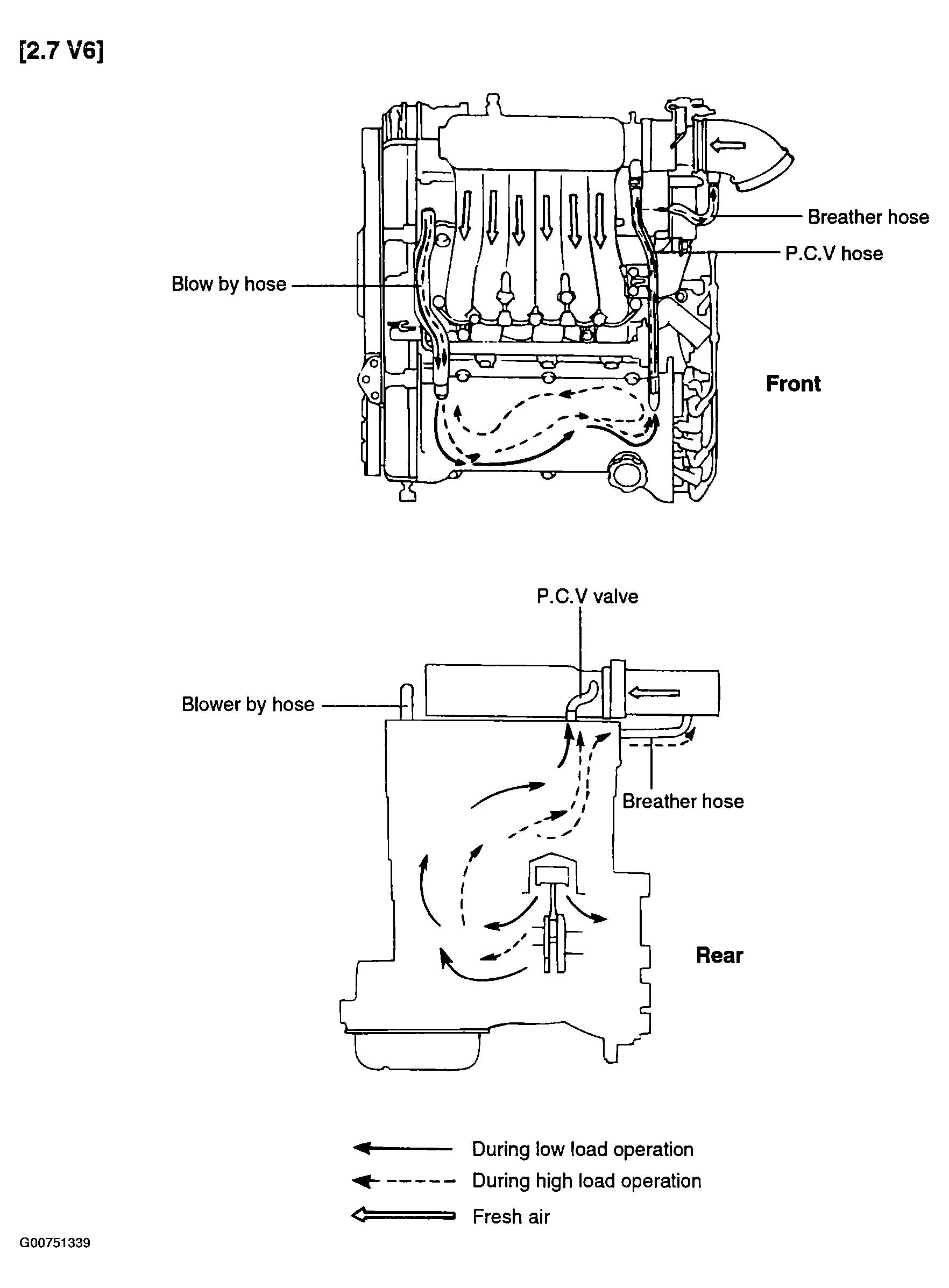

Fig 2: Crankcase Emission Control System Components 2.7L
G00751339Courtesy of HYUNDAI MOTOR CO.
