Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.
  2. Measure the coolant temperature and calculate the concentration from the relation between the specific gravity and temperature. Use the following table for reference. See Figure.

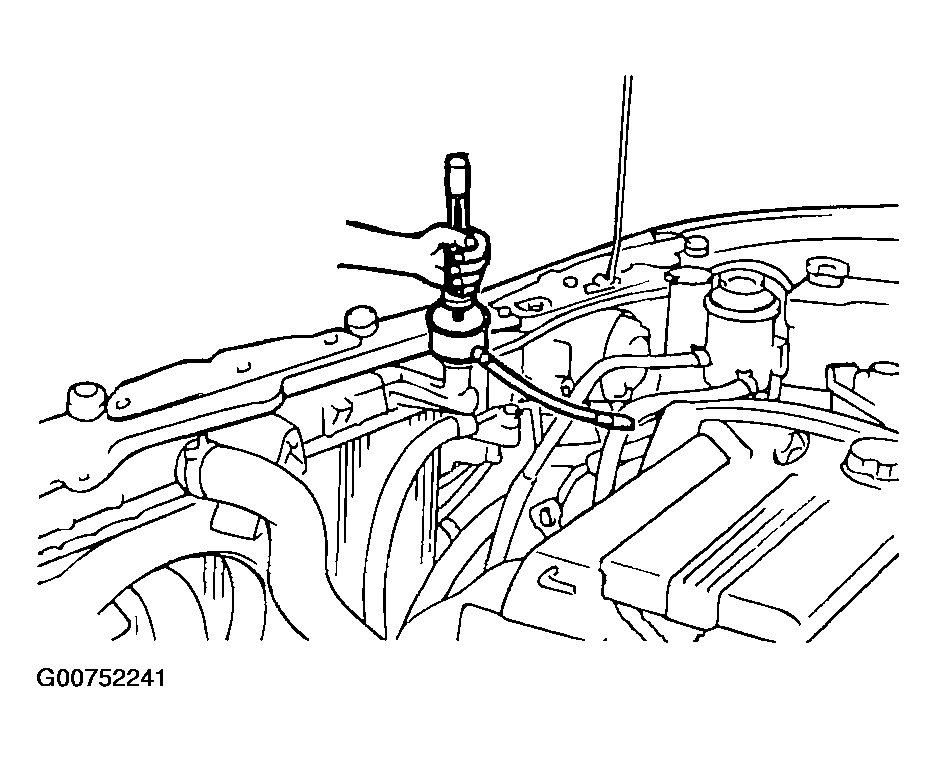

Fig 1: Checking Coolant With Hydrometer
G00752241Courtesy of HYUNDAI MOTOR CO.
