Home › Hyundai › 2004 › Sonata GLS › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.7L 6-Cylinder Engine › Main Moving System › Piston › Components

Main Moving System: Piston: Components

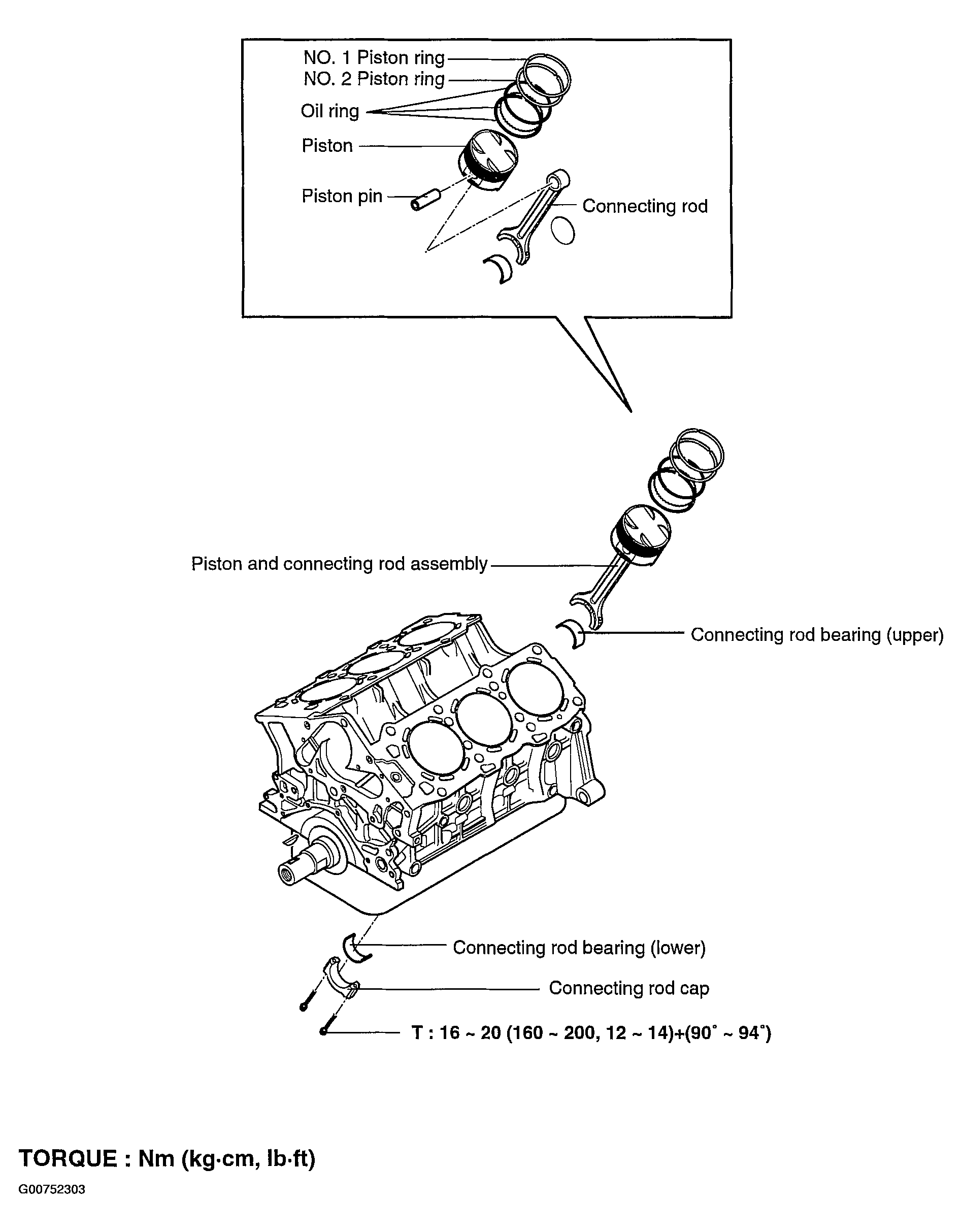

Fig 1: Piston Components
G00752303Courtesy of HYUNDAI MOTOR CO.
