Fuel System - 2.7L -- Sonata
›
Fuel Delivery System
›
Fuel Line & Vapor Line
›
Components
Fuel Line & Vapor Line: Components

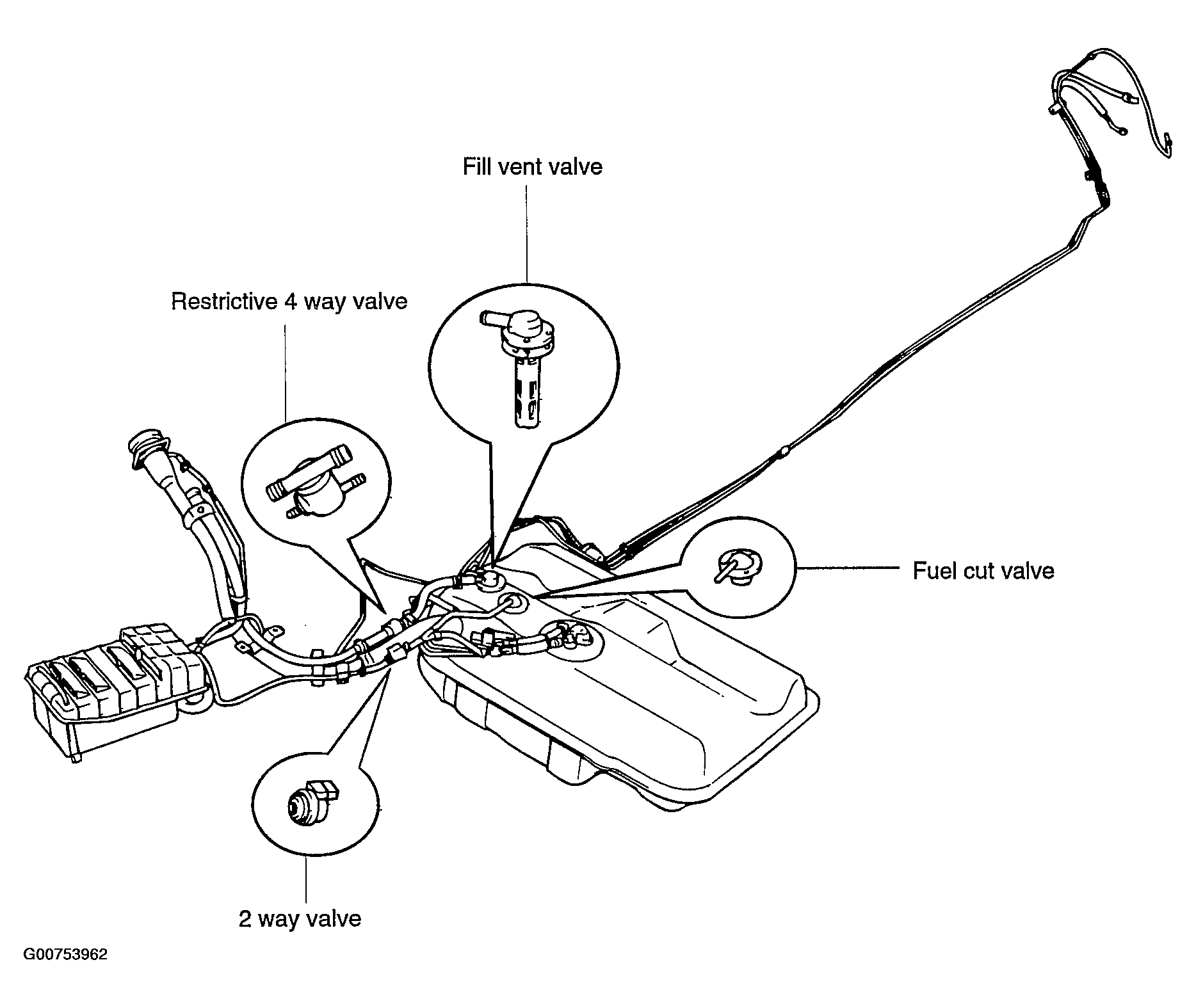

Fig 1: Fuel Line & Vapor Line Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
