Inspection Procedure 10

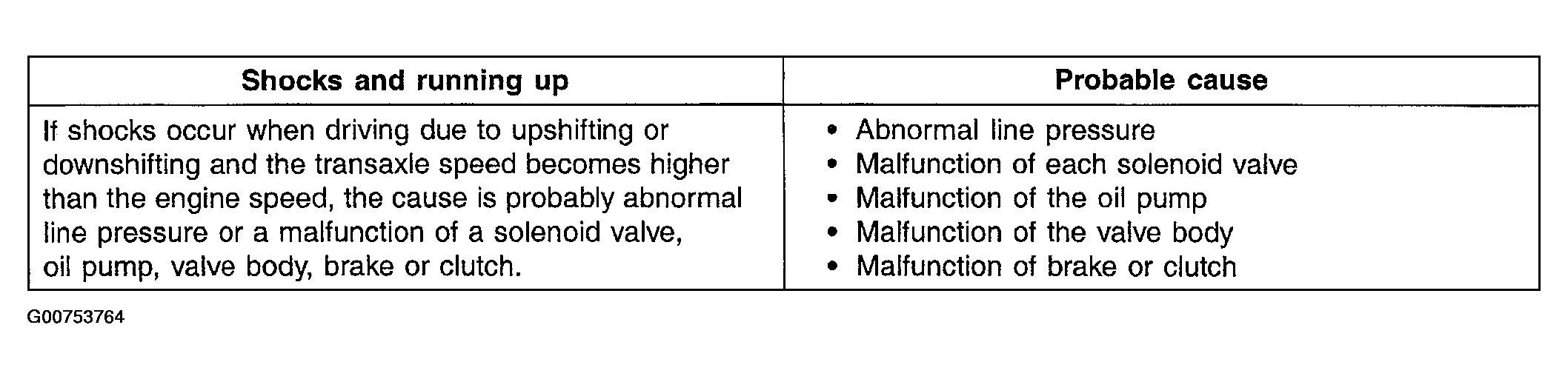

Fig 1: Shocks & Running Up, Possible Causes Table
G00753764Courtesy of HYUNDAI MOTOR CO.

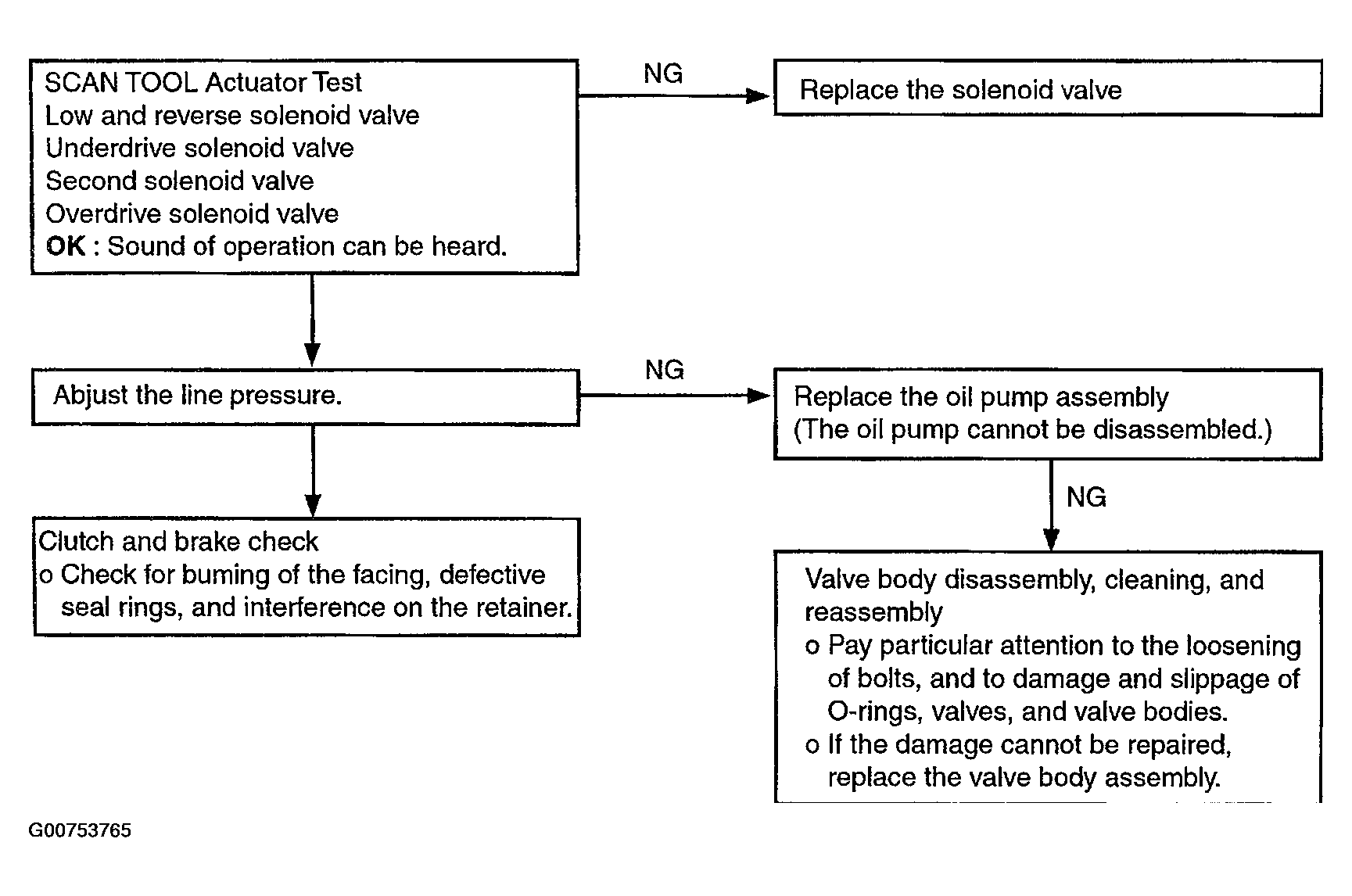

Fig 2: Shocks & Running Up, Diagnostic Flow Chart
G00753765Courtesy of HYUNDAI MOTOR CO.
