Repair and Diagnosis
›
Brakes
›
Traction Control
›
Anti-Lock Brake System
›
Abs (Anti-Lock Brake System)
›
Anti-Lock Braking System Control Module
›
HECU Terminal Inspection
HECU Terminal Inspection

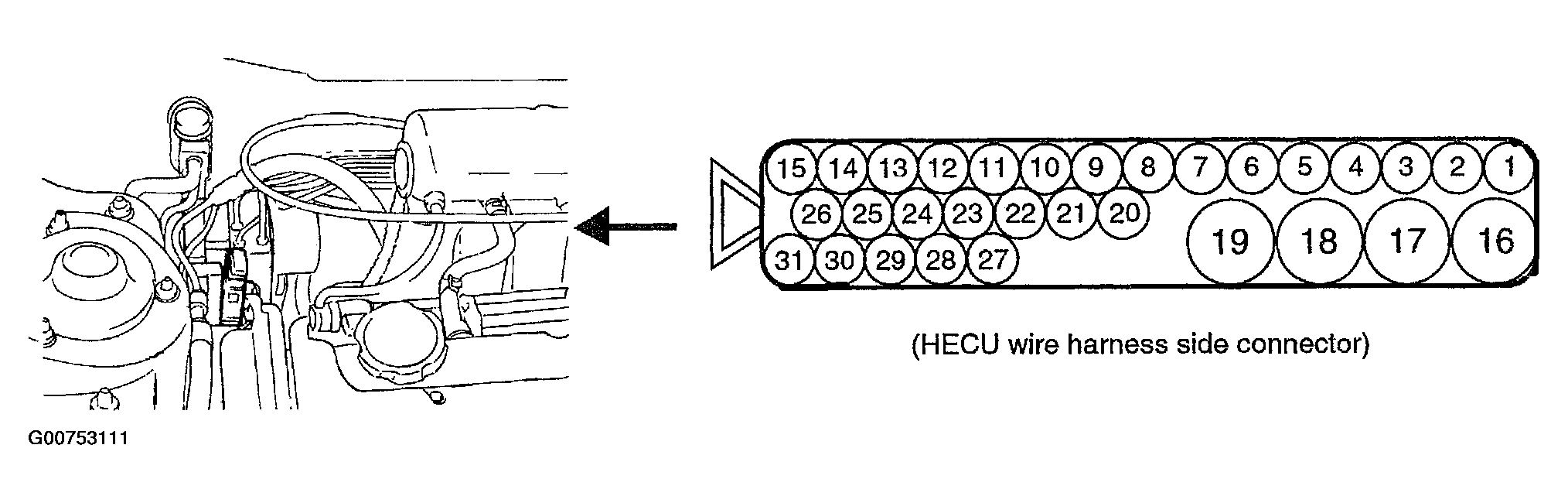

Fig 1: View Of HECU Location & Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

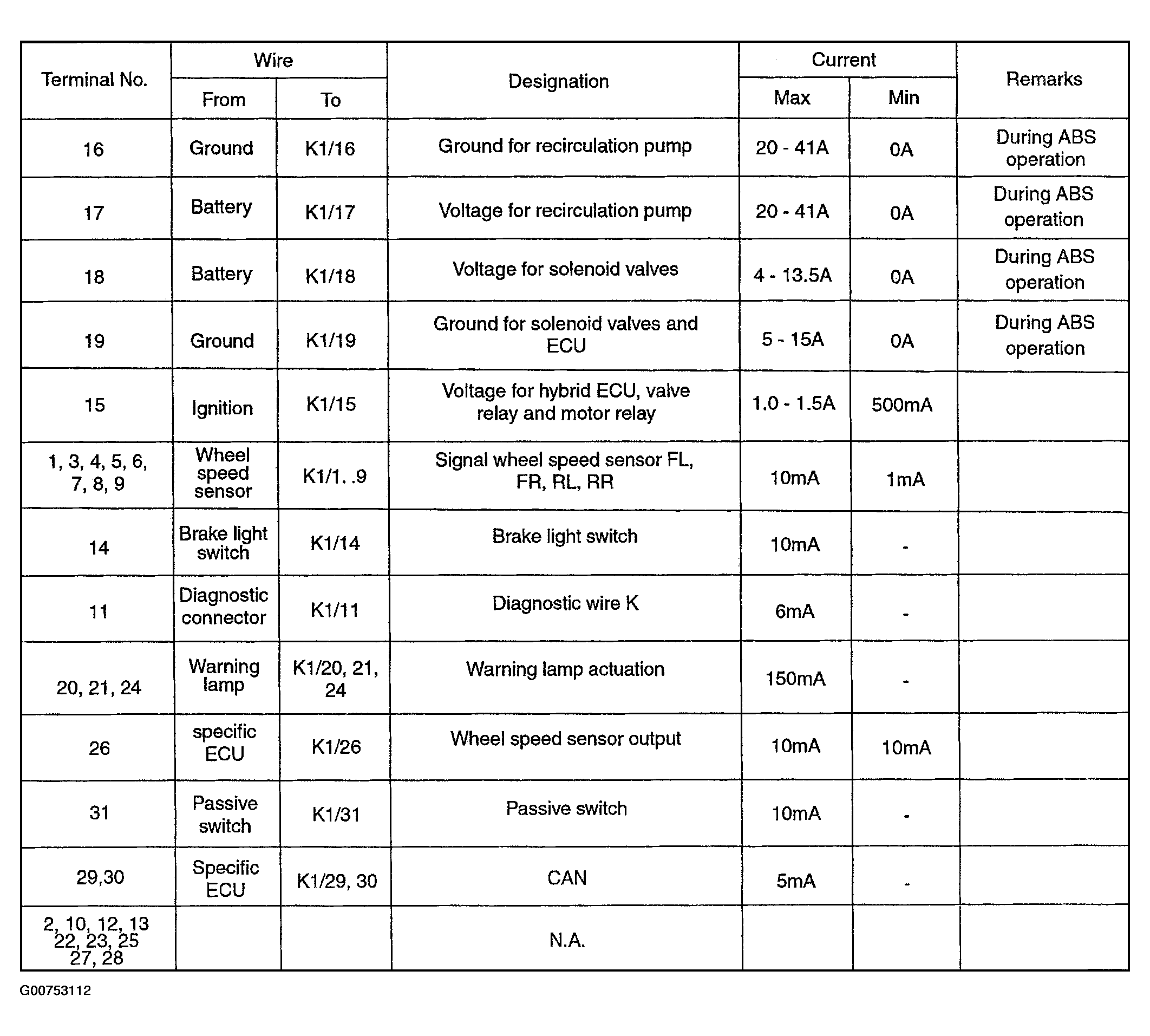

Fig 2: Identifying HECU Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
