System Function
›
Fail Safe
Fail Safe

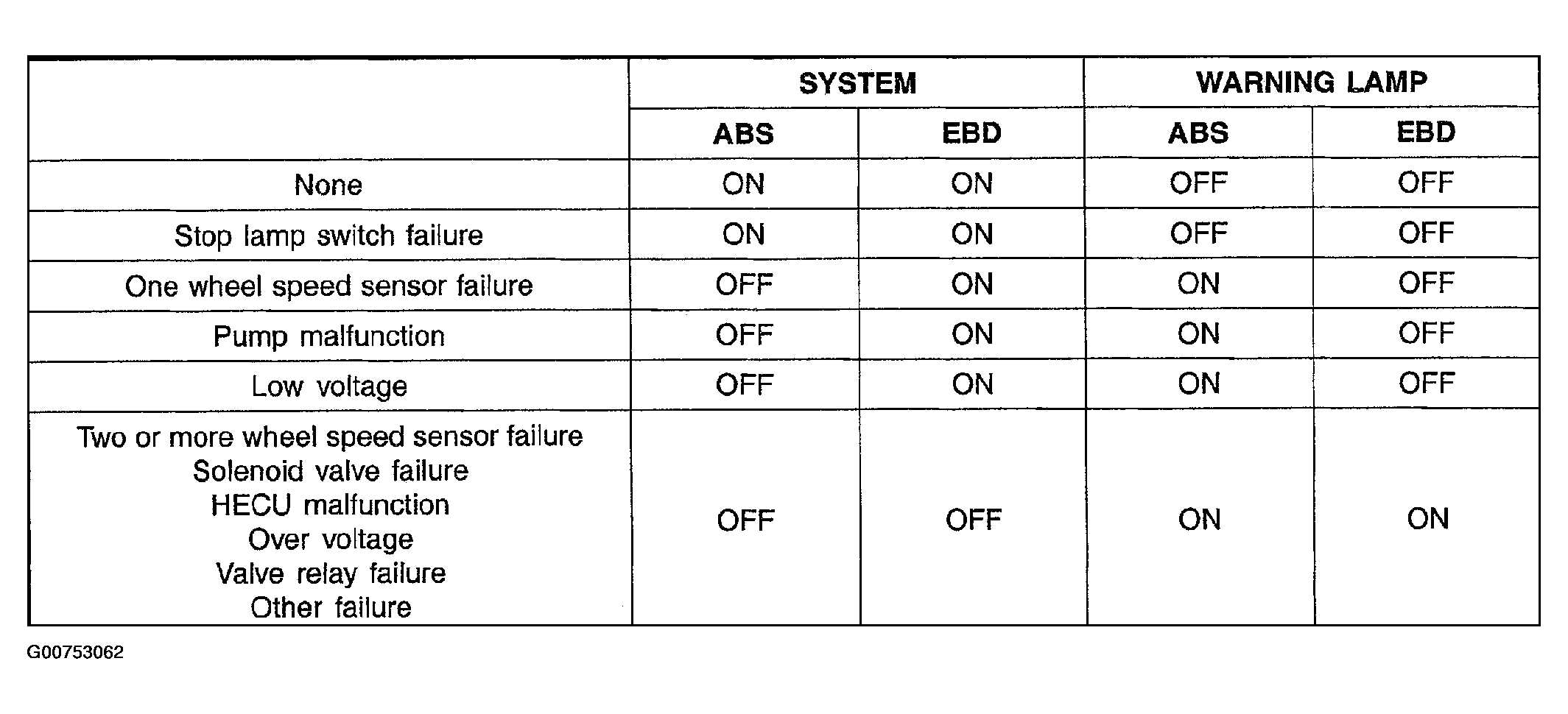

Fig 1: Fail Safe Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
