Abs (Anti-Lock Brake System): Components

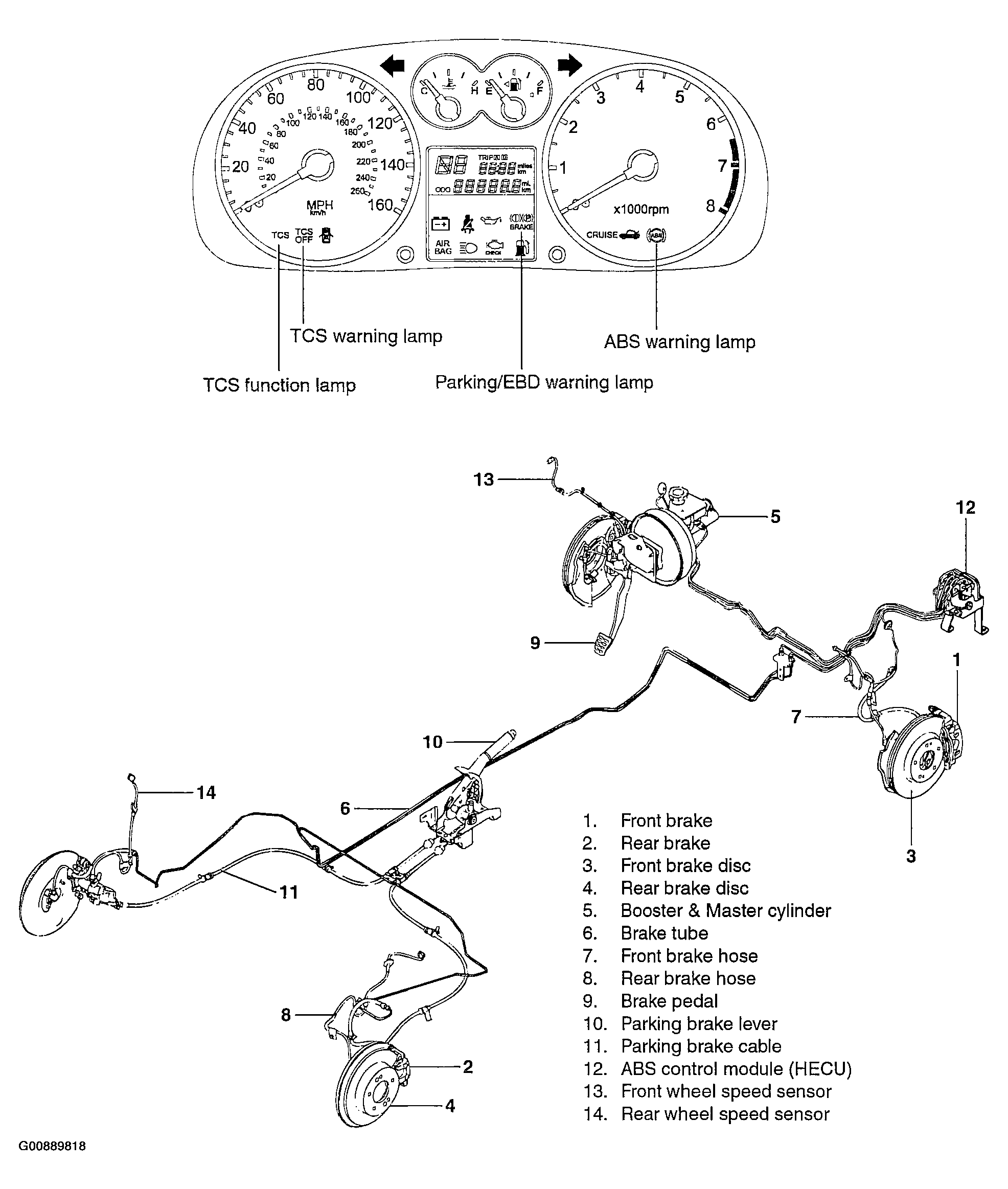

Fig 1: Identifying ABS (Anti-Lock Brake System) Components
G00889818Courtesy of HYUNDAI MOTOR CO.
