Diagnostic Trouble Code Chart
Diagnostic Trouble Code Chart
Inspect according to the inspection chart that is appropriate for the malfunction code.

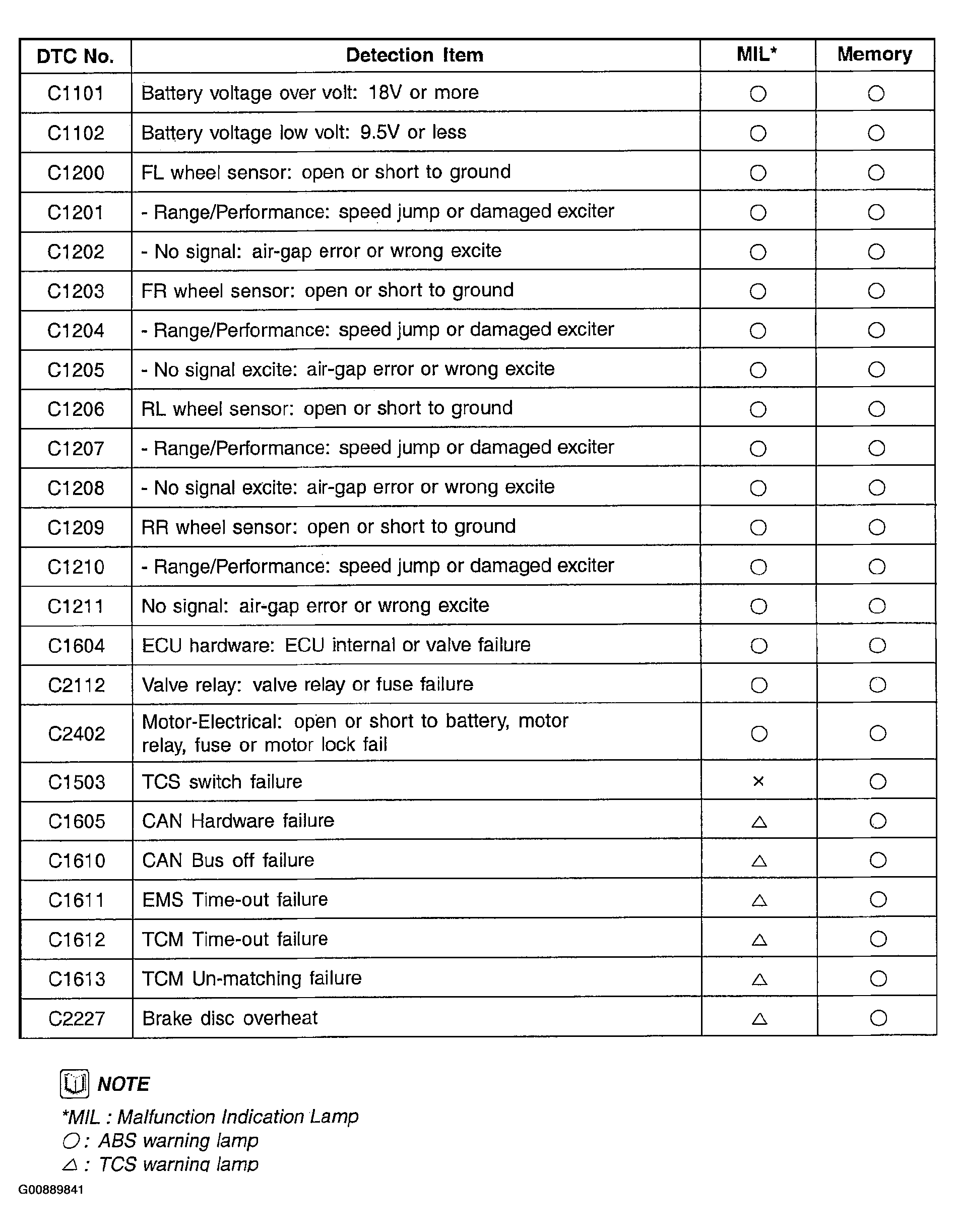

Fig 1: Diagnostic Trouble Code Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
