Circuit Diagram

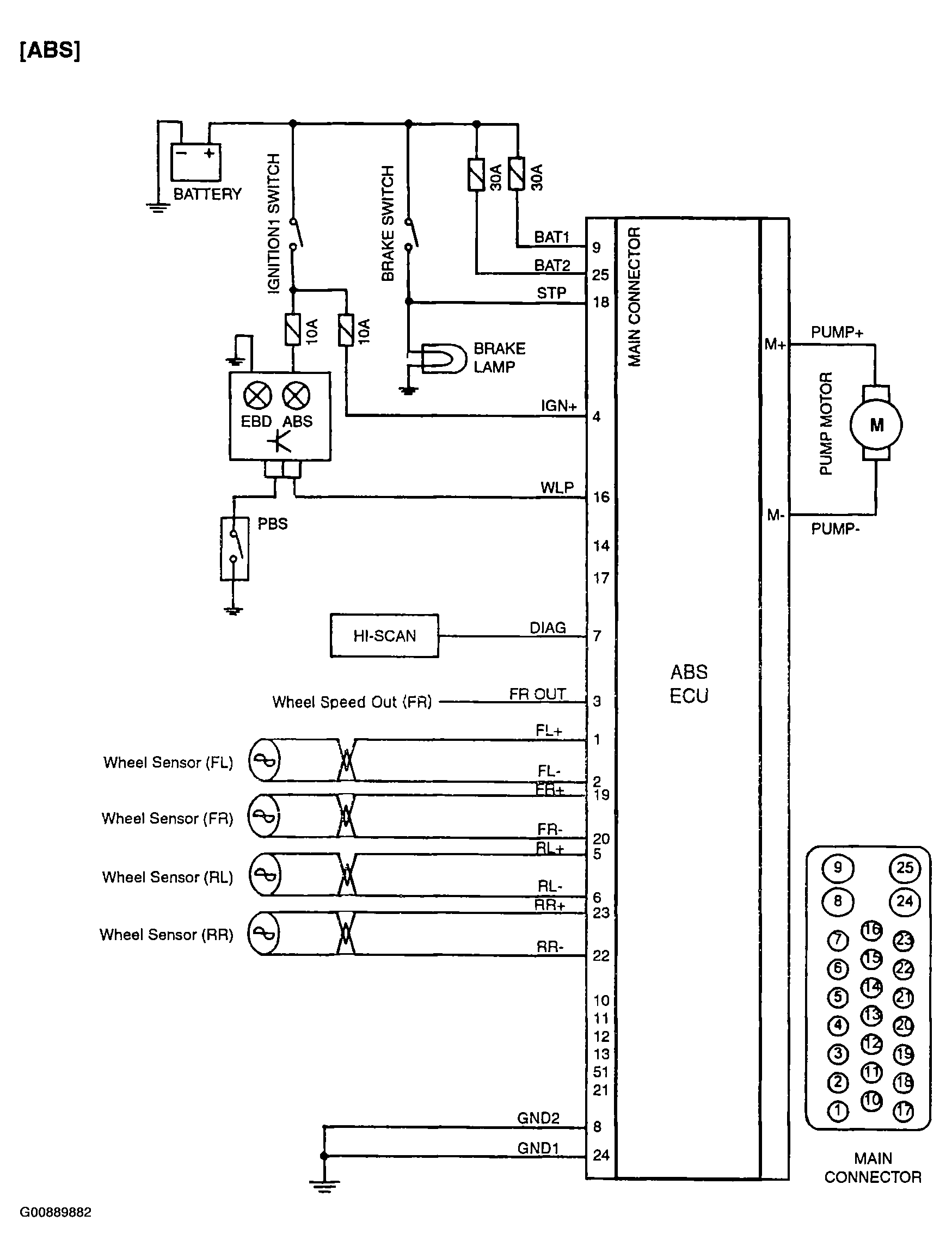

Fig 1: ABS Circuit Diagram
G00889882Courtesy of HYUNDAI MOTOR CO.

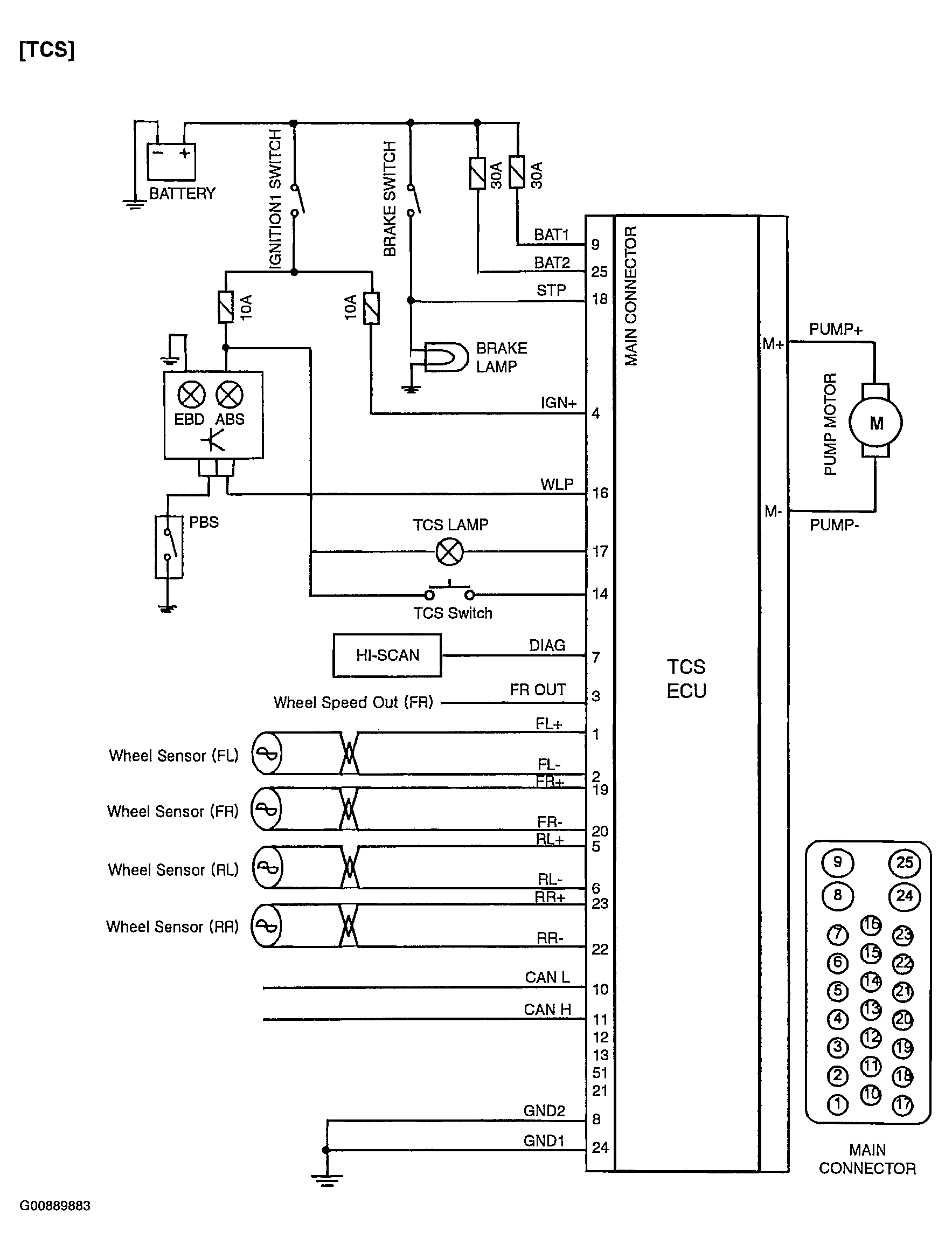

Fig 2: TCS Circuit Diagram
G00889883Courtesy of HYUNDAI MOTOR CO.
