Anti-Lock Braking System Wheel Speed Sensor: Components

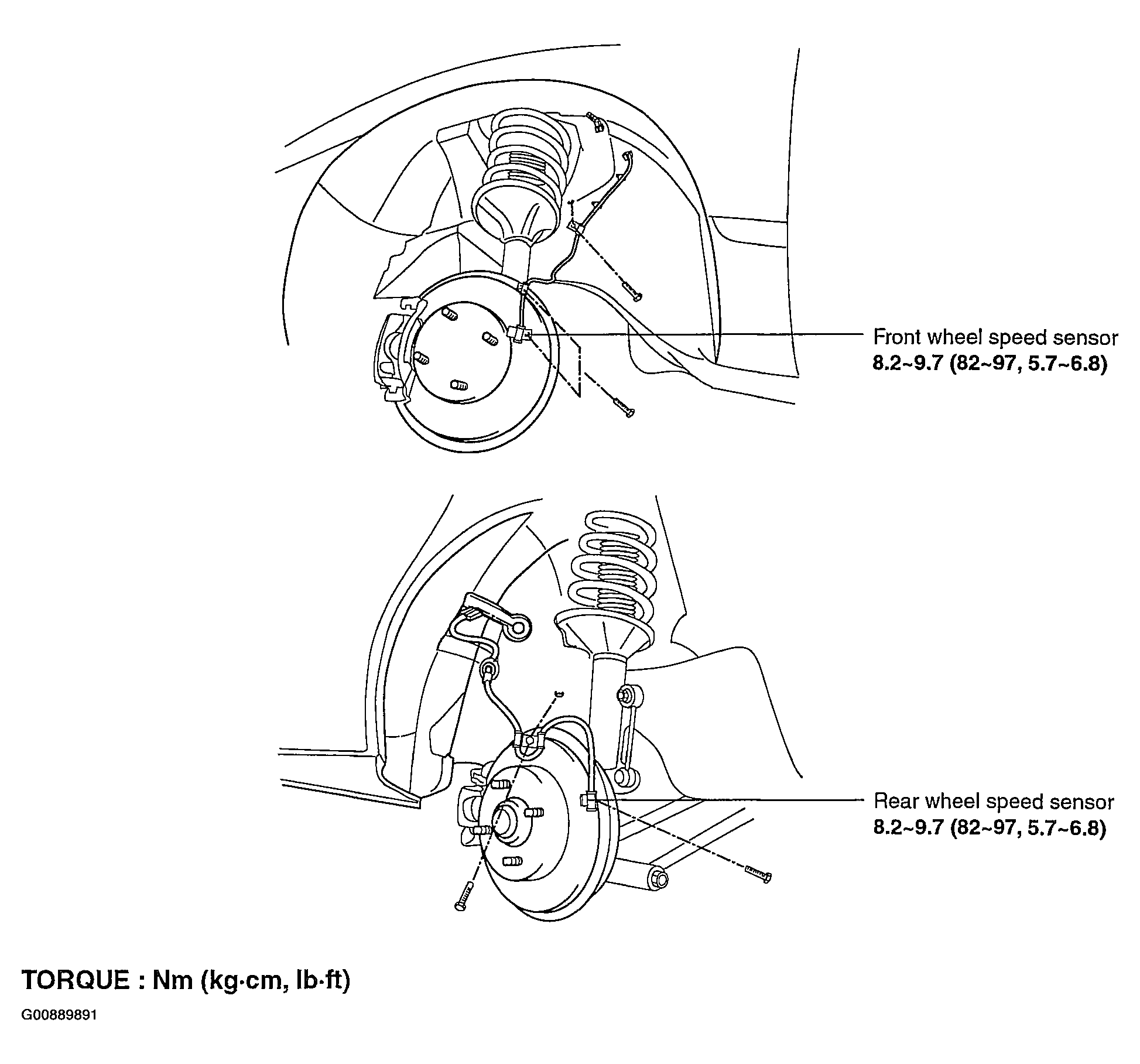

Fig 1: Identifying Anti-Lock Braking System Wheel Speed Sensor Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
