Crankcase Emission Control System: Components

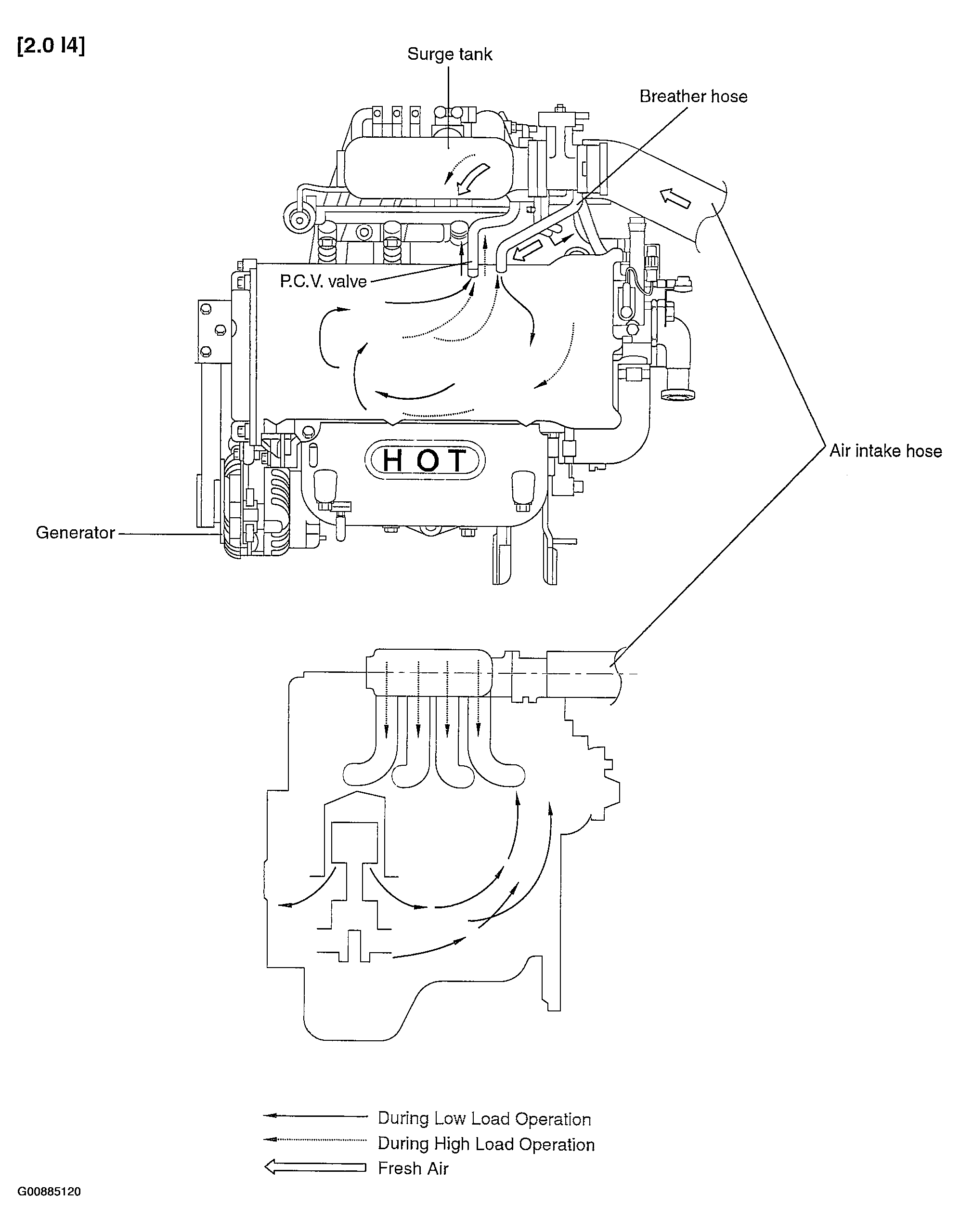

Fig 1: Locating Crankcase Emission Control System Components (1 Of 2)
G00885120Courtesy of HYUNDAI MOTOR CO.

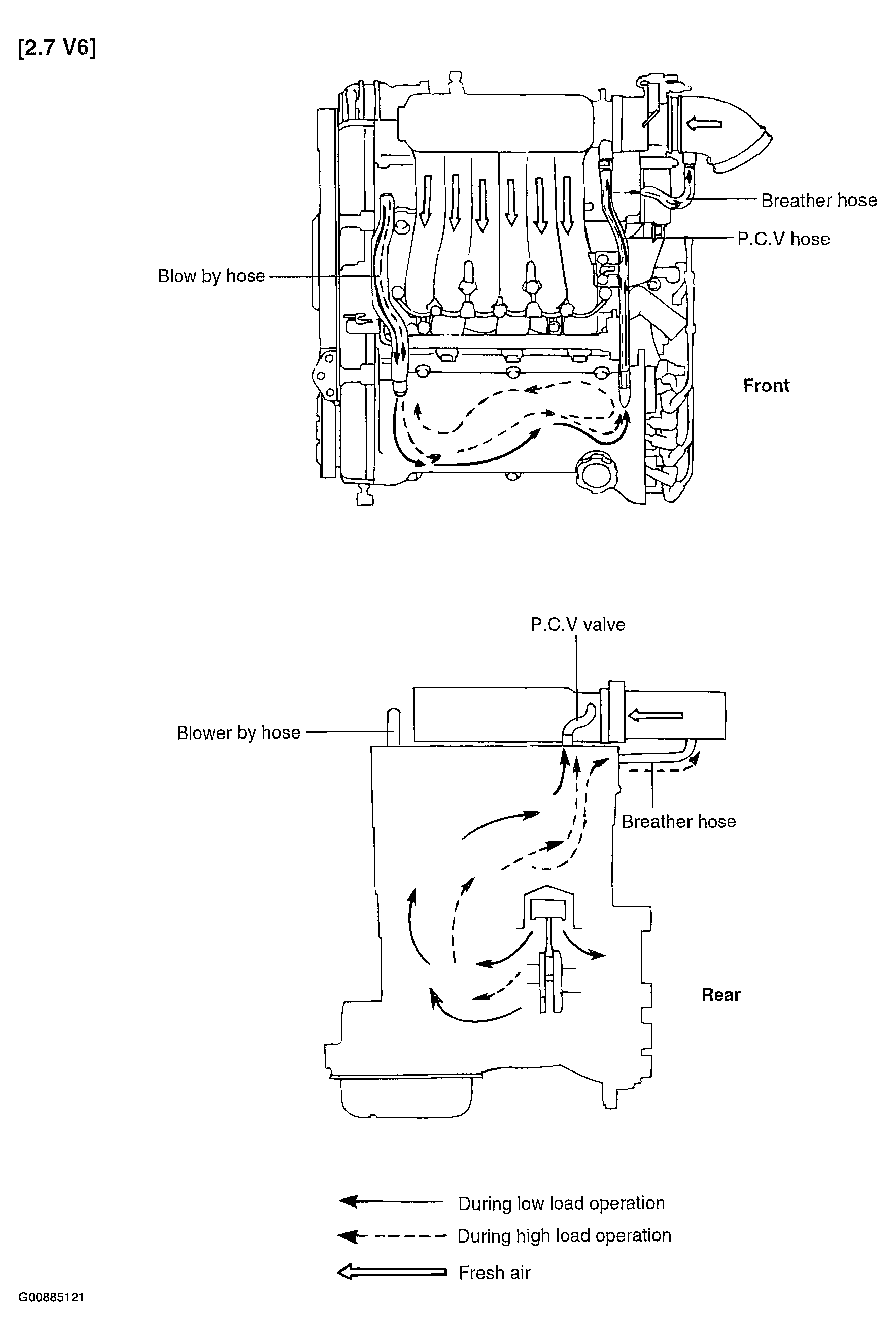

Fig 2: Locating Crankcase Emission Control System Components (2 Of 2)
G00885121Courtesy of HYUNDAI MOTOR CO.
