Evaporative Emission Control System: Components

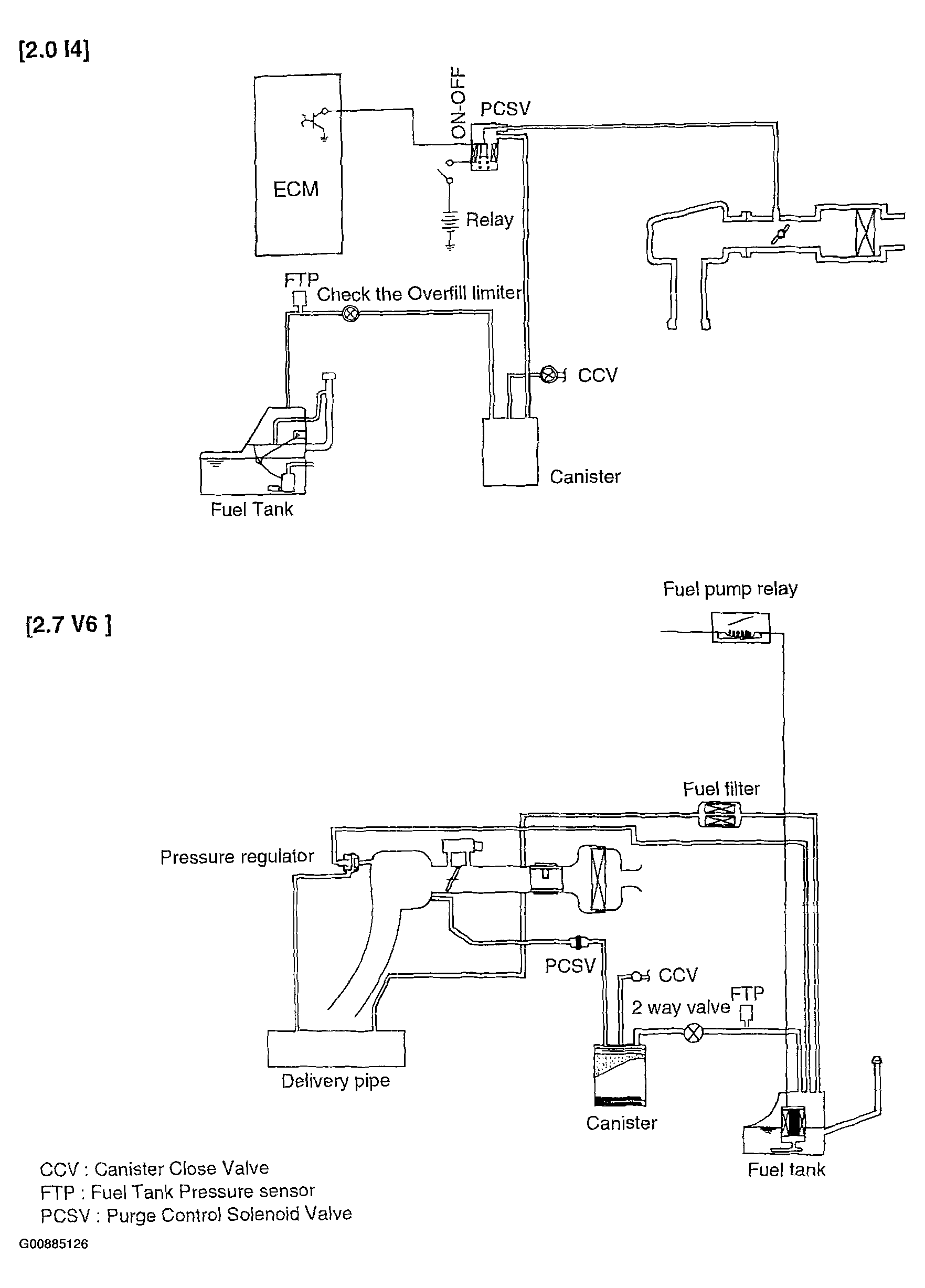

Fig 1: Identifying Evaporative Emission Control System
G00885126Courtesy of HYUNDAI MOTOR CO.
