Main Moving System: Crankshaft: Components

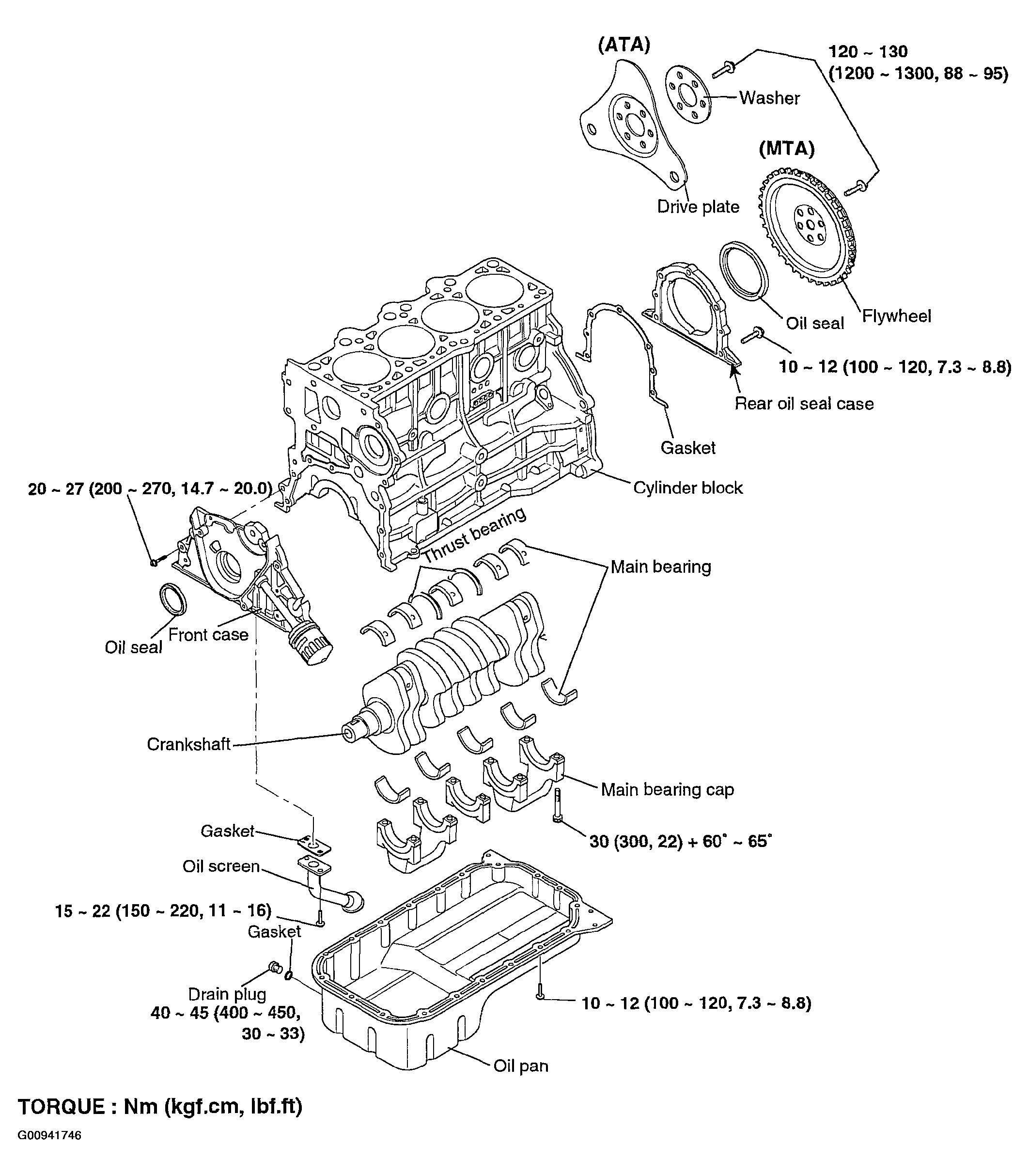

Fig 1: Exploded View Of Crankshaft Components
G00941746Courtesy of HYUNDAI MOTOR CO.
