Timing Belt: Disassembly

Remove the alternator belt.
Remove the coolant pump pulley.
Remove the power steering belt and airconditioner belt.
Remove the crankshaft pulley.

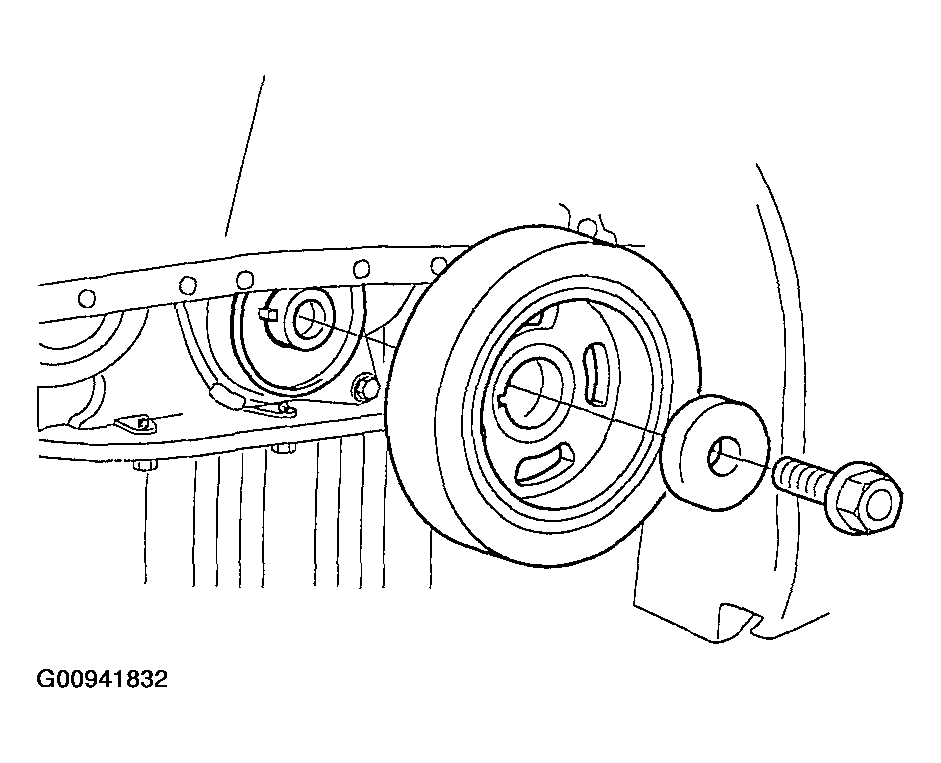

Fig 1: Removing Crankshaft Pulley
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt cover.

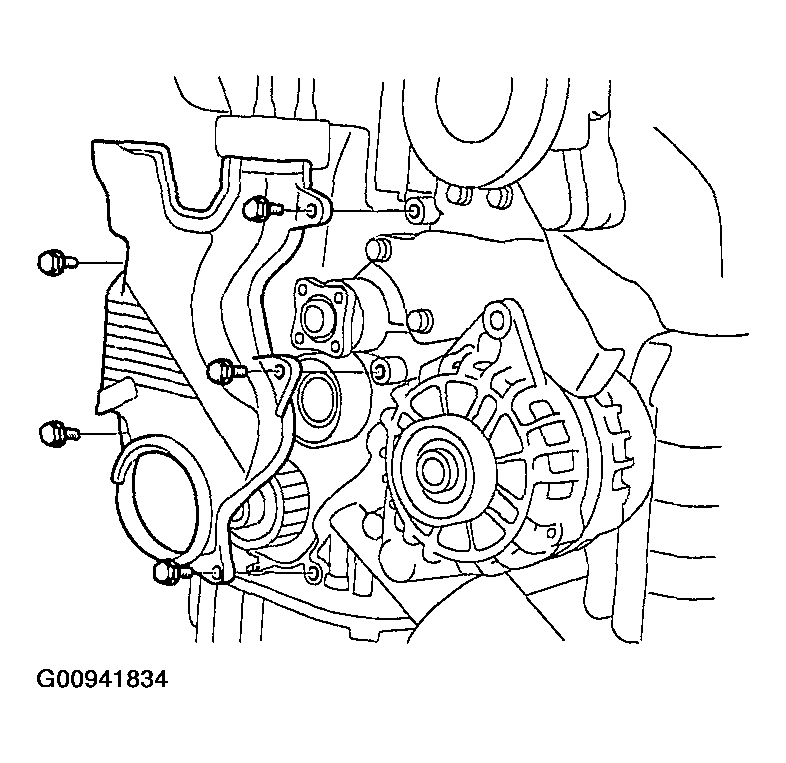

Fig 2: Removing Timing Belt Cover (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

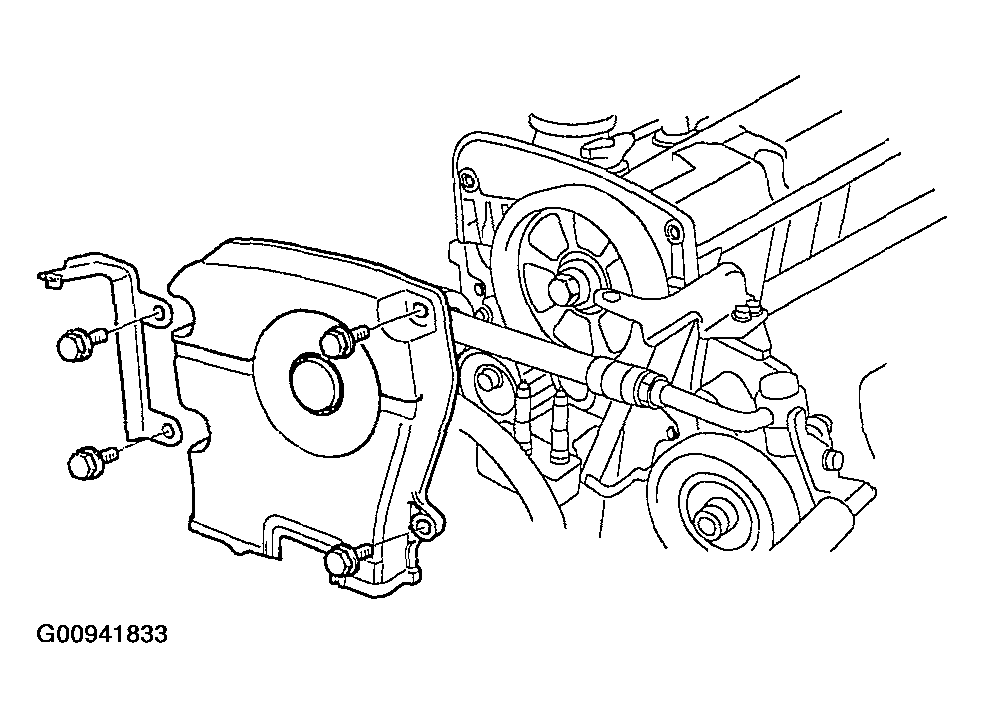

Fig 3: Removing Timing Belt Cover (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the timing belt tensioner pulley.
NOTE: If the timing belt is reused, make an arrow indicating the turning direction (or the front of the engine) to make sure that the belt is reinstalled in the same direction as before.
Remove the timing belt.

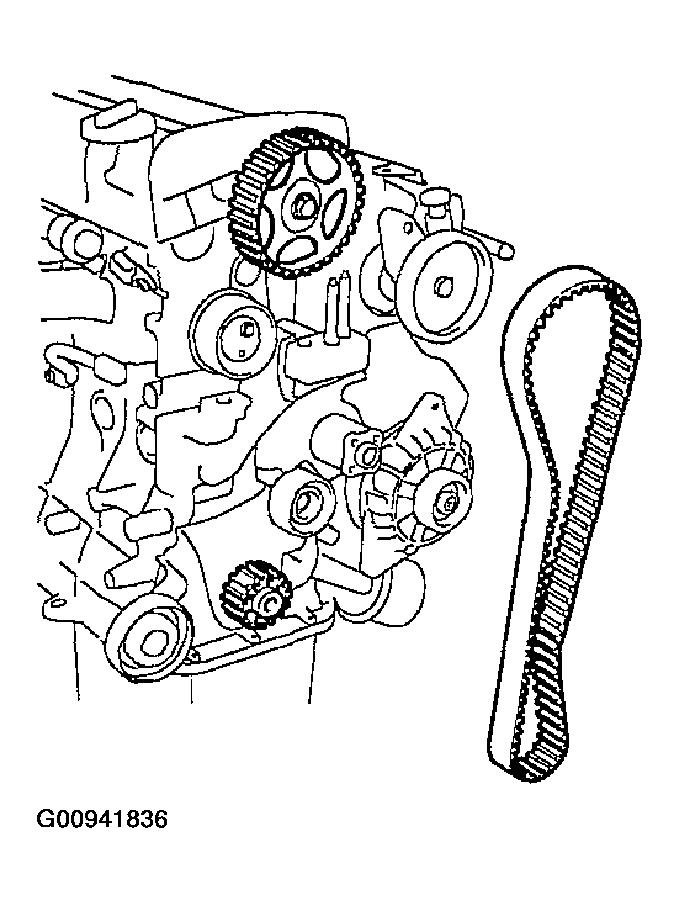

Fig 4: Removing Timing Belt
Courtesy of HYUNDAI MOTOR CO.
Remove the idler pulley.

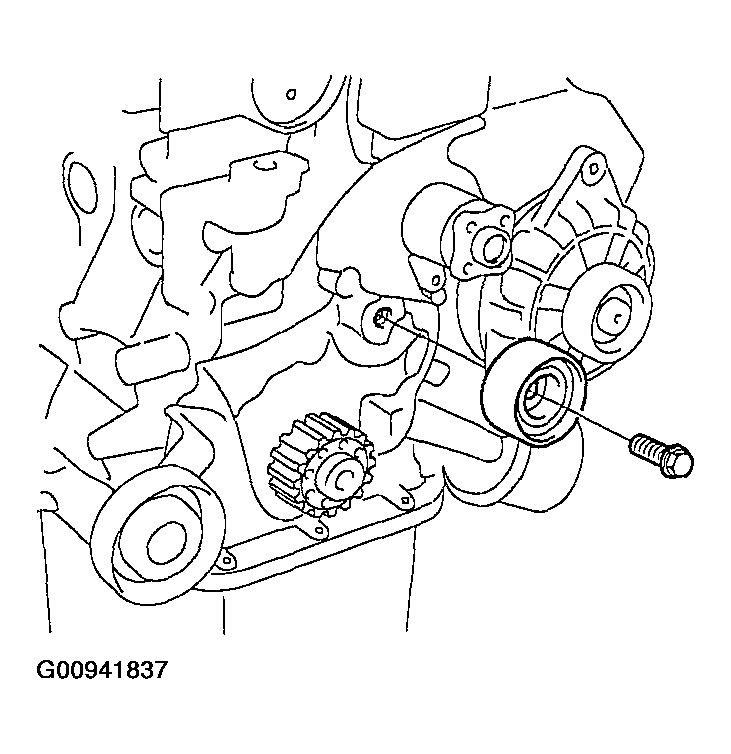

Fig 5: Removing Idler Pulley
Courtesy of HYUNDAI MOTOR CO.
Remove the cylinder head cover.

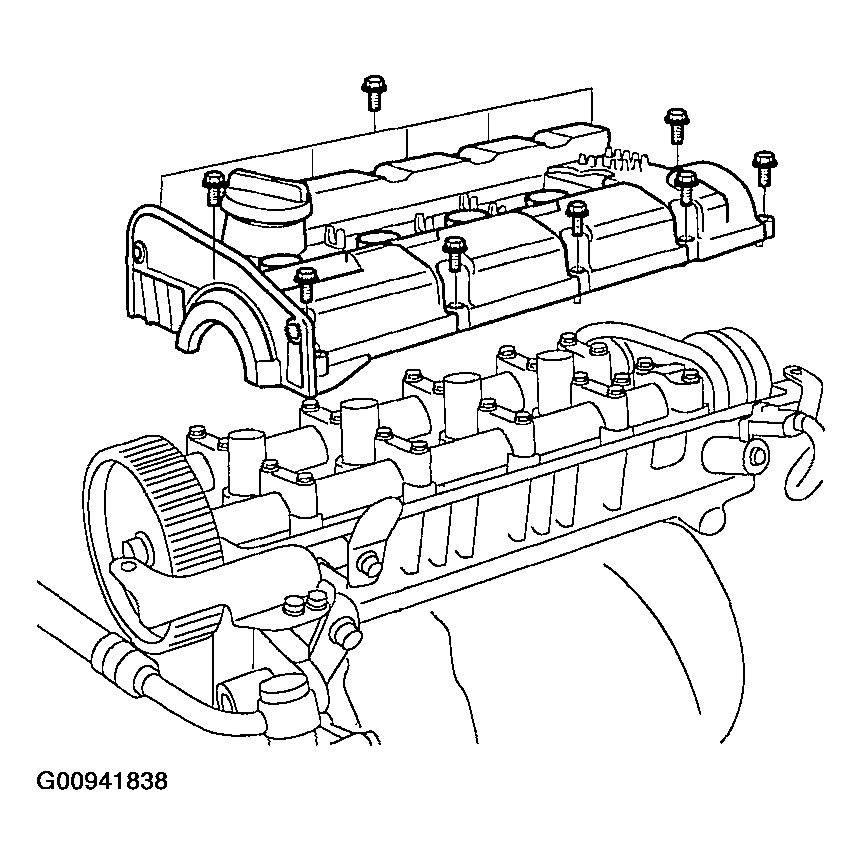

Fig 6: Removing Cylinder Head Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the camshaft sprocket.

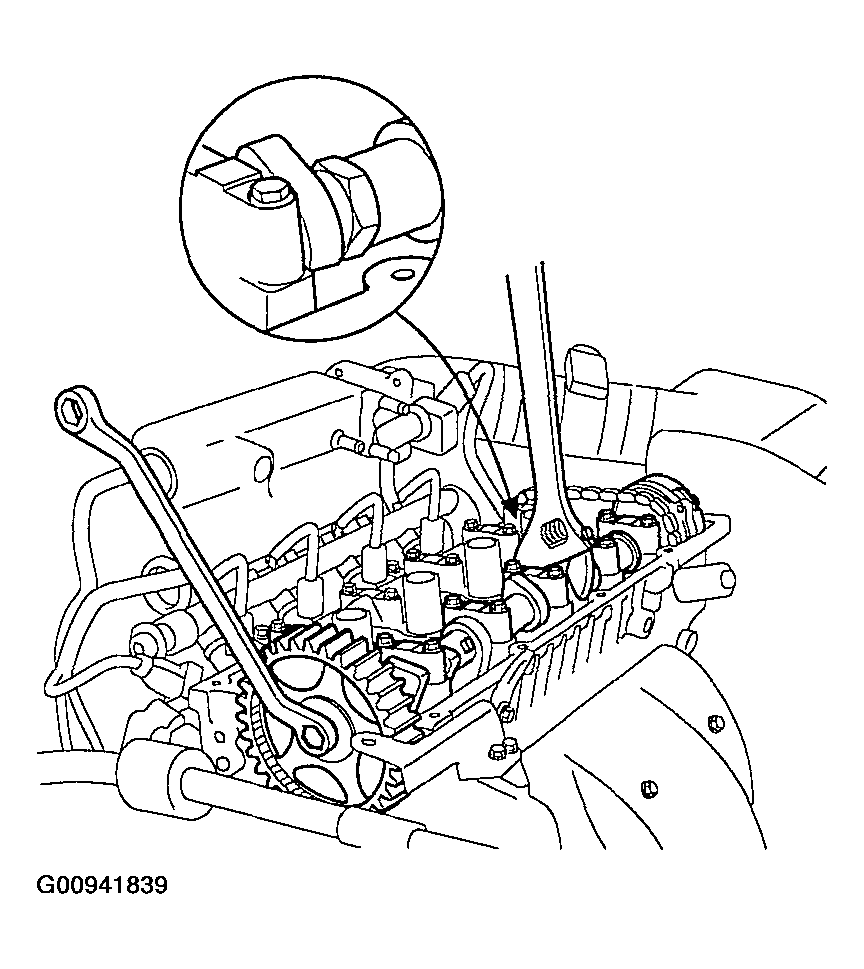

Fig 7: Removing Camshaft Sprocket
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to damage the cylinder head with the wrench.
Remove the crankshaft sprocket from crankshaft.

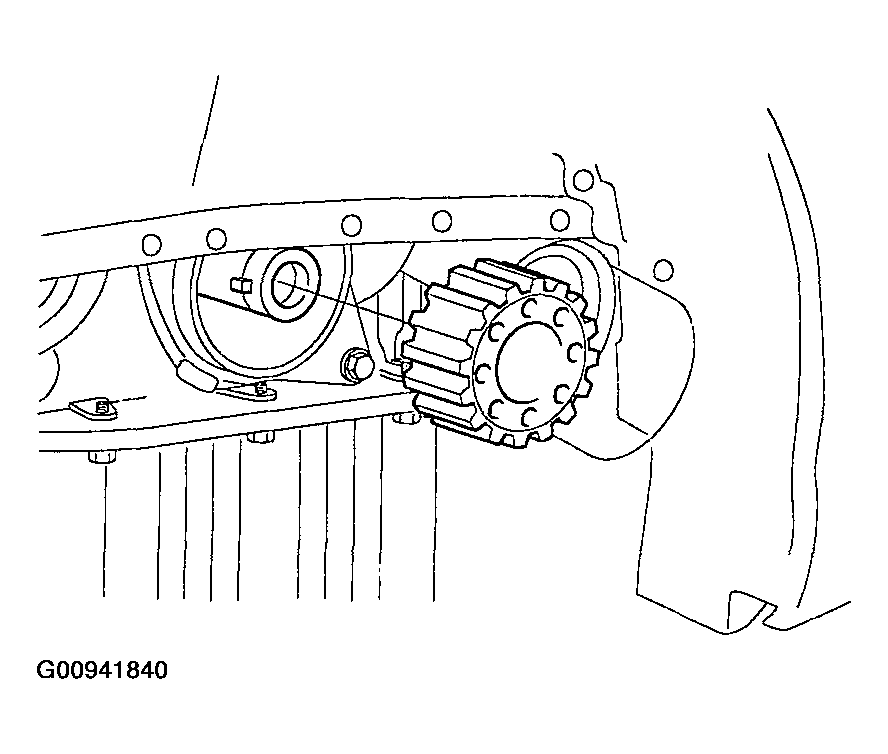

Fig 8: Removing Crankshaft Sprocket From Crankshaft

Courtesy of HYUNDAI MOTOR CO.
