DTC P0130: O2 Sensor Circuit Malfunction (Bank 1, Sensor 1): DTC Detecting Condition

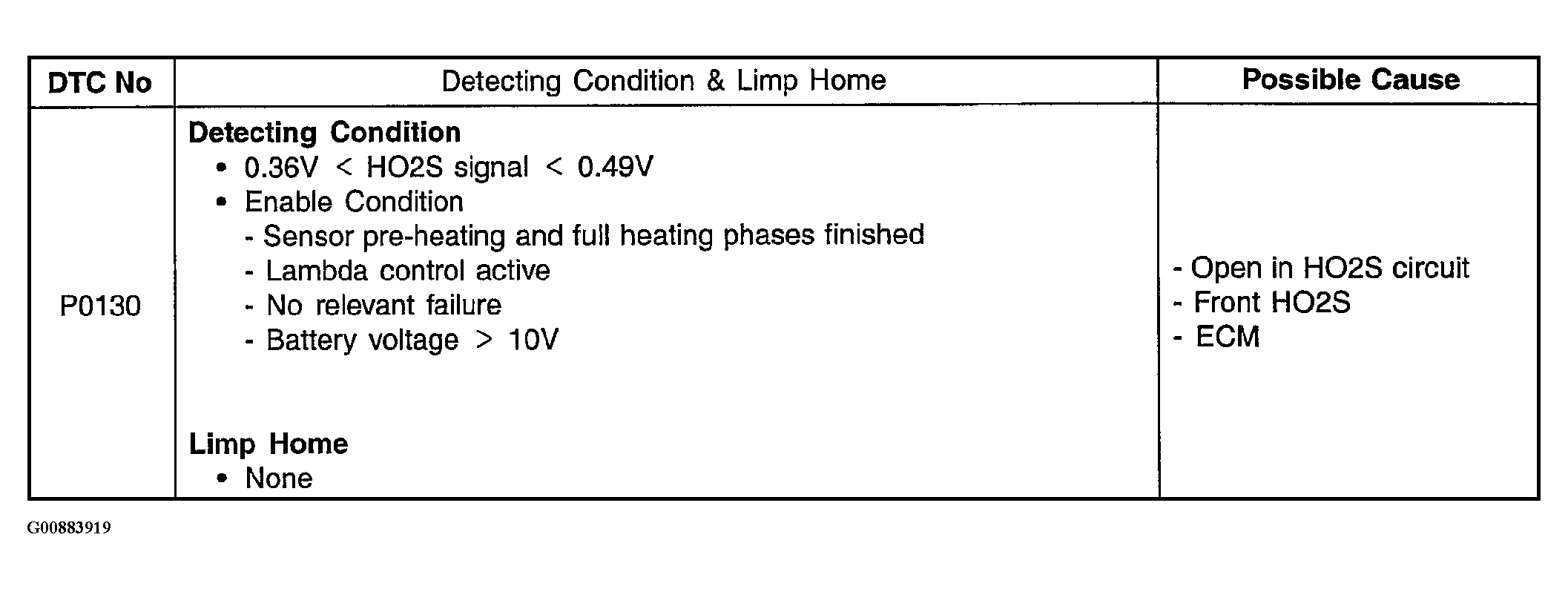

Fig 1: DTC Detecting Condition
G00883919Courtesy of HYUNDAI MOTOR CO.
