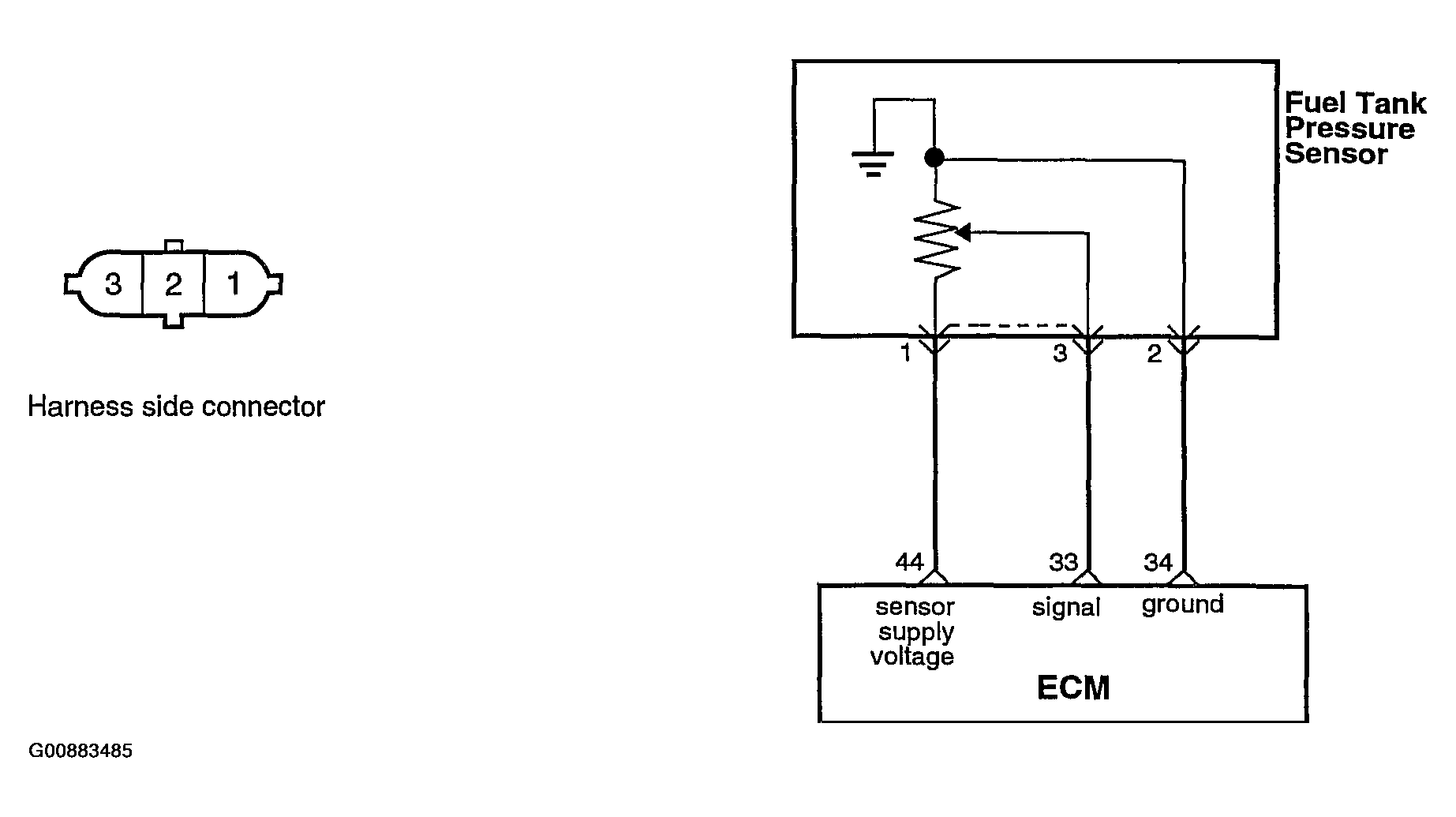

Home › Hyundai › 2004 › Tiburon Base, Automatic › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (2.0L) › DTC Troubleshooting Procedures › DTC P0451: EVAP Emission Control System Pressure Sensor Range/Performance Problem › Schematic Diagram
