Accelerator Pedal: Removal

  1. Disconnect the accelerator cable from the accelerator pedal by removing the 2 bolts (A).
    Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal
    G00893170Courtesy of HYUNDAI MOTOR CO.
  2. After disconnecting the accelerator cable, loosen the bolts (A) of the accelerator arm bracket and remove.

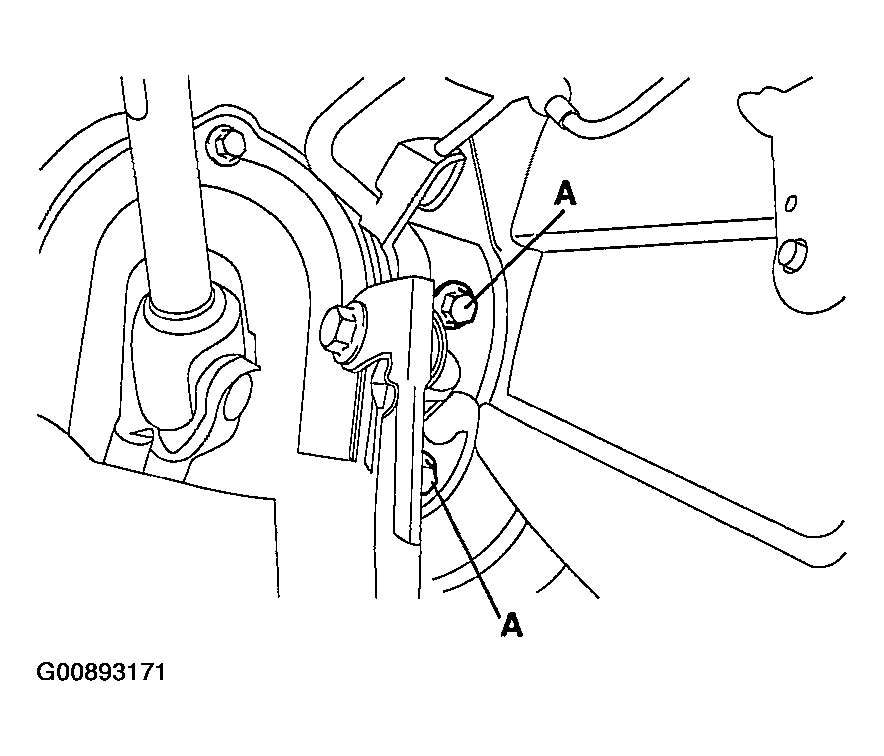

Fig 2: Removing Accelerator Arm Bracket
G00893171Courtesy of HYUNDAI MOTOR CO.
