Cruise Control Switch Test
- Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
- Remove the driver's airbag. See AIRBAG RESTRAINTS
.

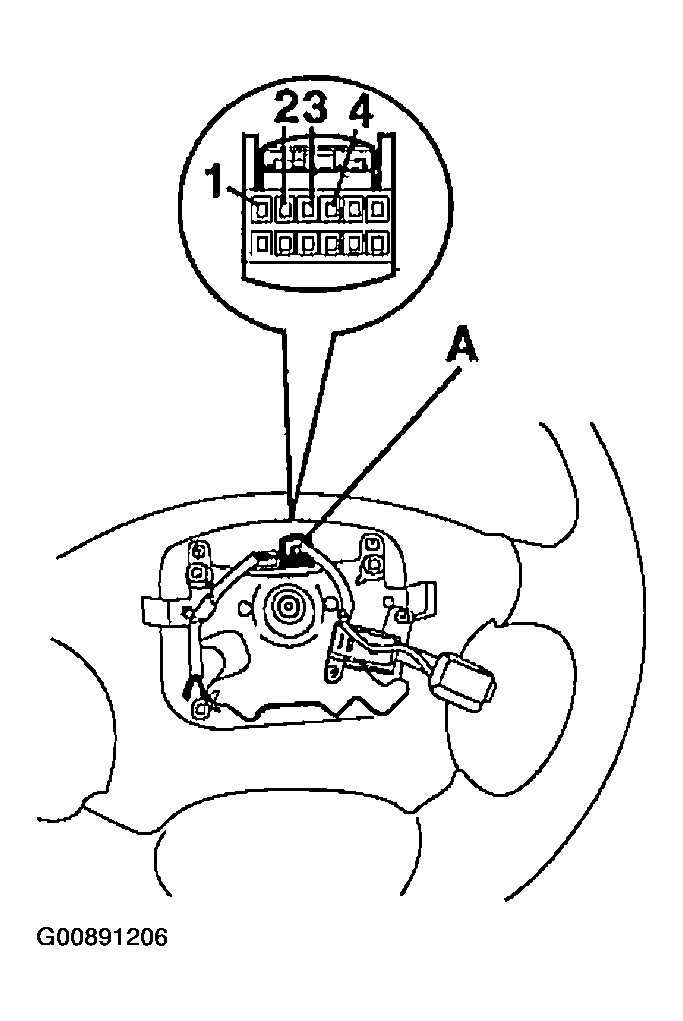

- Disconnect the control switch connector.
Courtesy of HYUNDAI MOTOR CO.

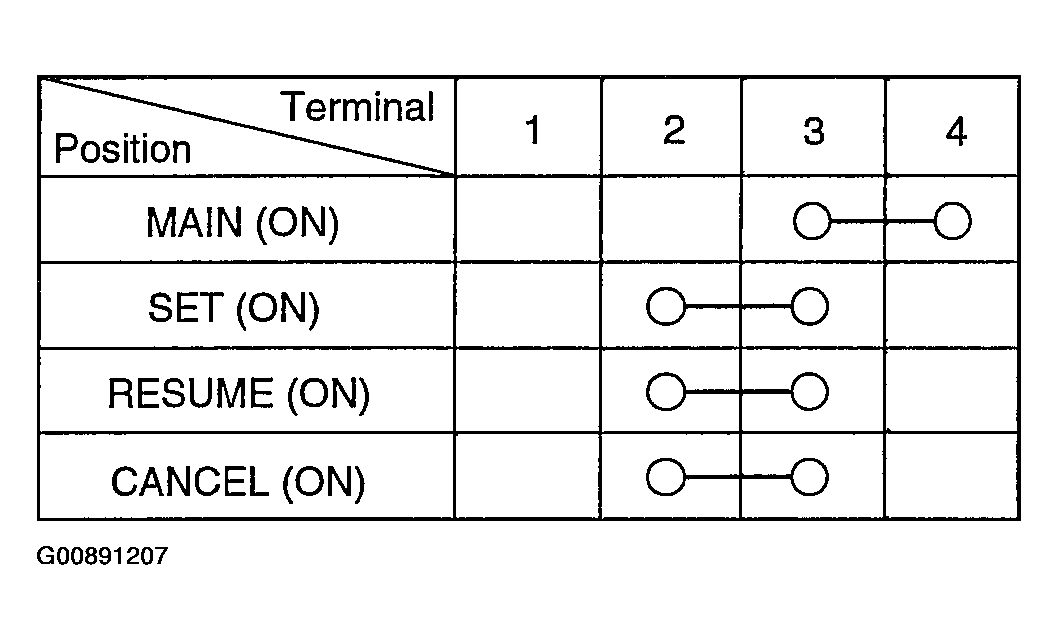

- Check the continuity between the terminals of the connector in each switch position according to the table.
- If there is continuity, and it matches the table, the switch is OK.
- If there is no continuity, replace the control switch.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
