Transmission Mounting

  1. For vehicles with a 5-speed manual transmission, remove the select control valve.
  2. Remove the transmission mounting bolt.

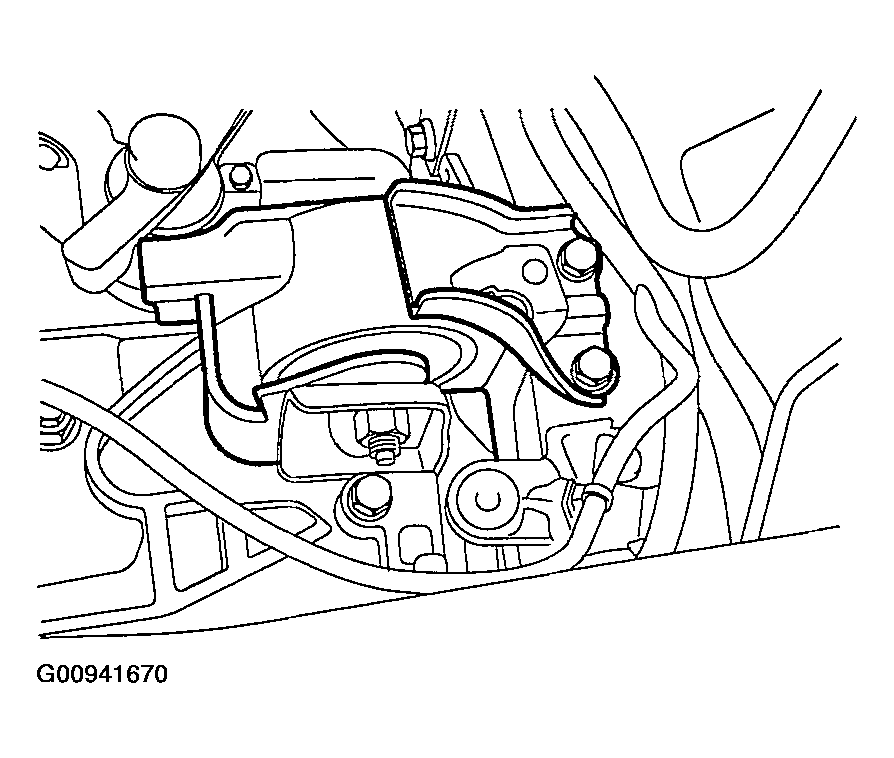

    Fig 1: Locating Transmission Mounting
    G00941670Courtesy of HYUNDAI MOTOR CO.
  3. Detach the cap from inside the right fender shield. Remove the transmission mounting bolts.
  4. Remove the transmission bracket.
Fig 2: Removing Transmission Bracket
G00941671Courtesy of HYUNDAI MOTOR CO.
