2.0L 4-Cylinder Engine: General: Troubleshooting

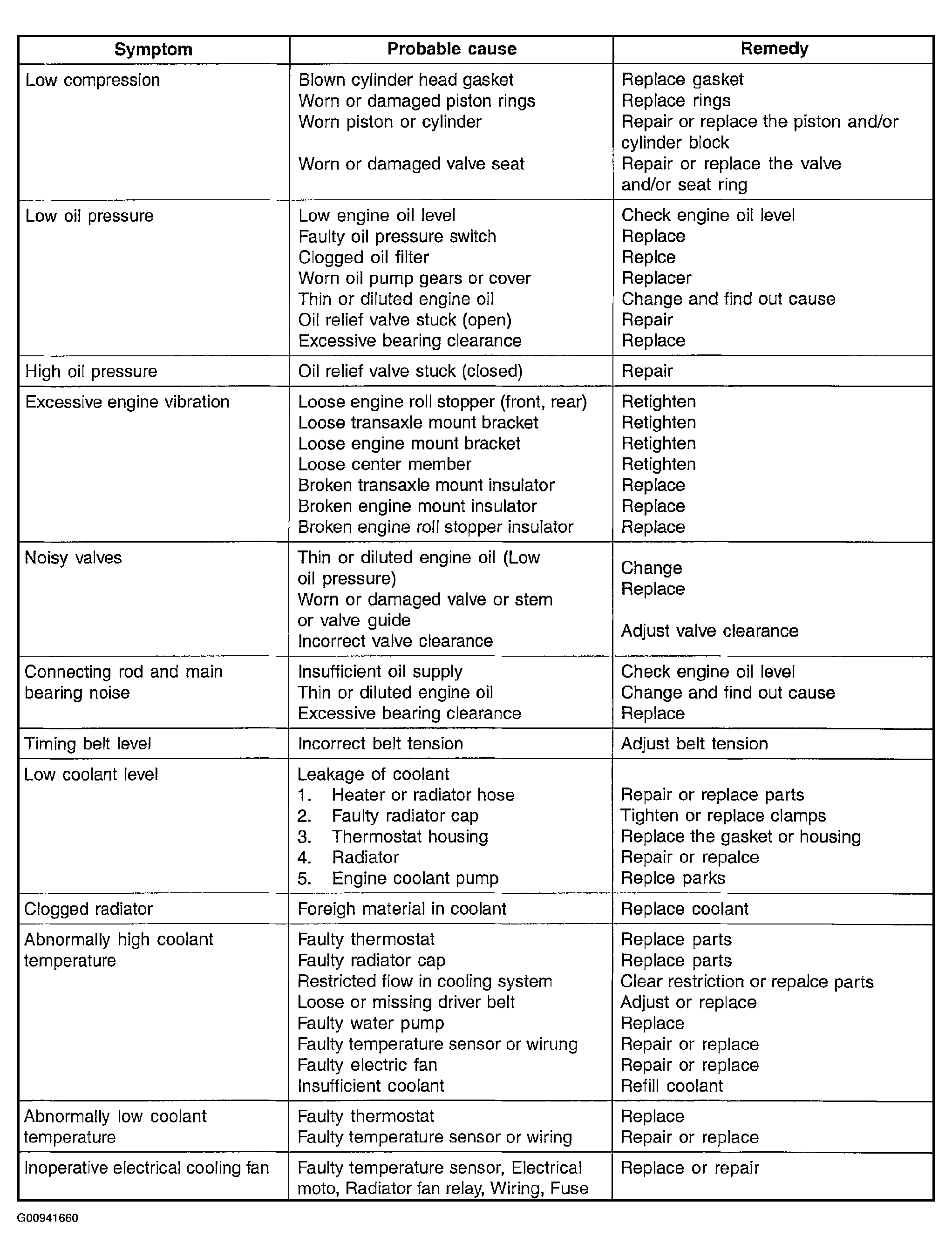

Fig 1: Troubleshooting (1 Of 2)
G00941660Courtesy of HYUNDAI MOTOR CO.

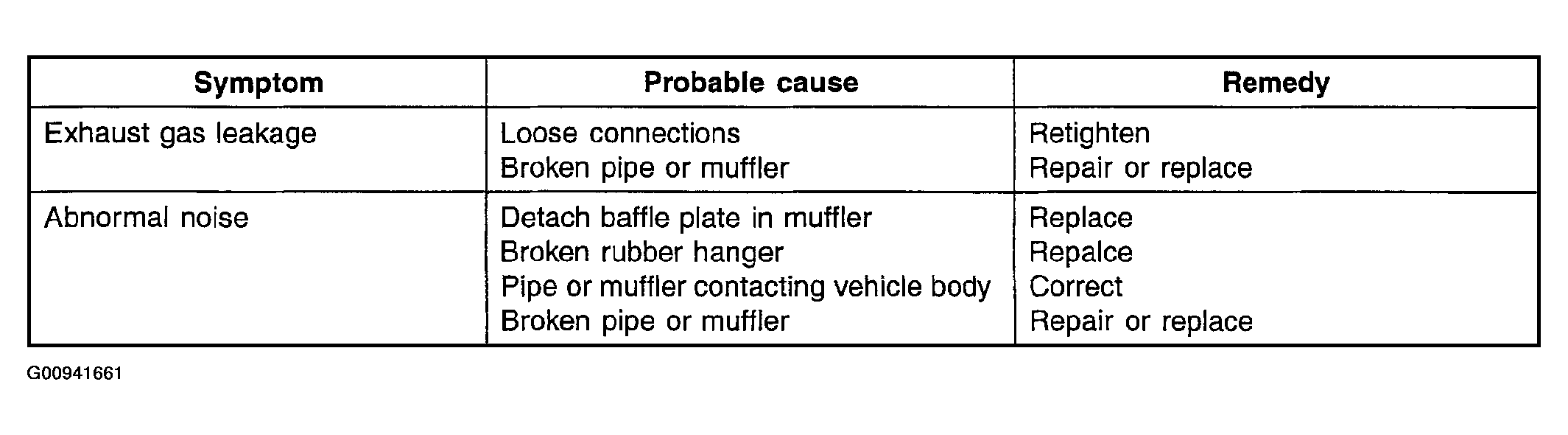

Fig 2: Troubleshooting (2 Of 2)
G00941661Courtesy of HYUNDAI MOTOR CO.
