Main Moving System: Camshaft: Components

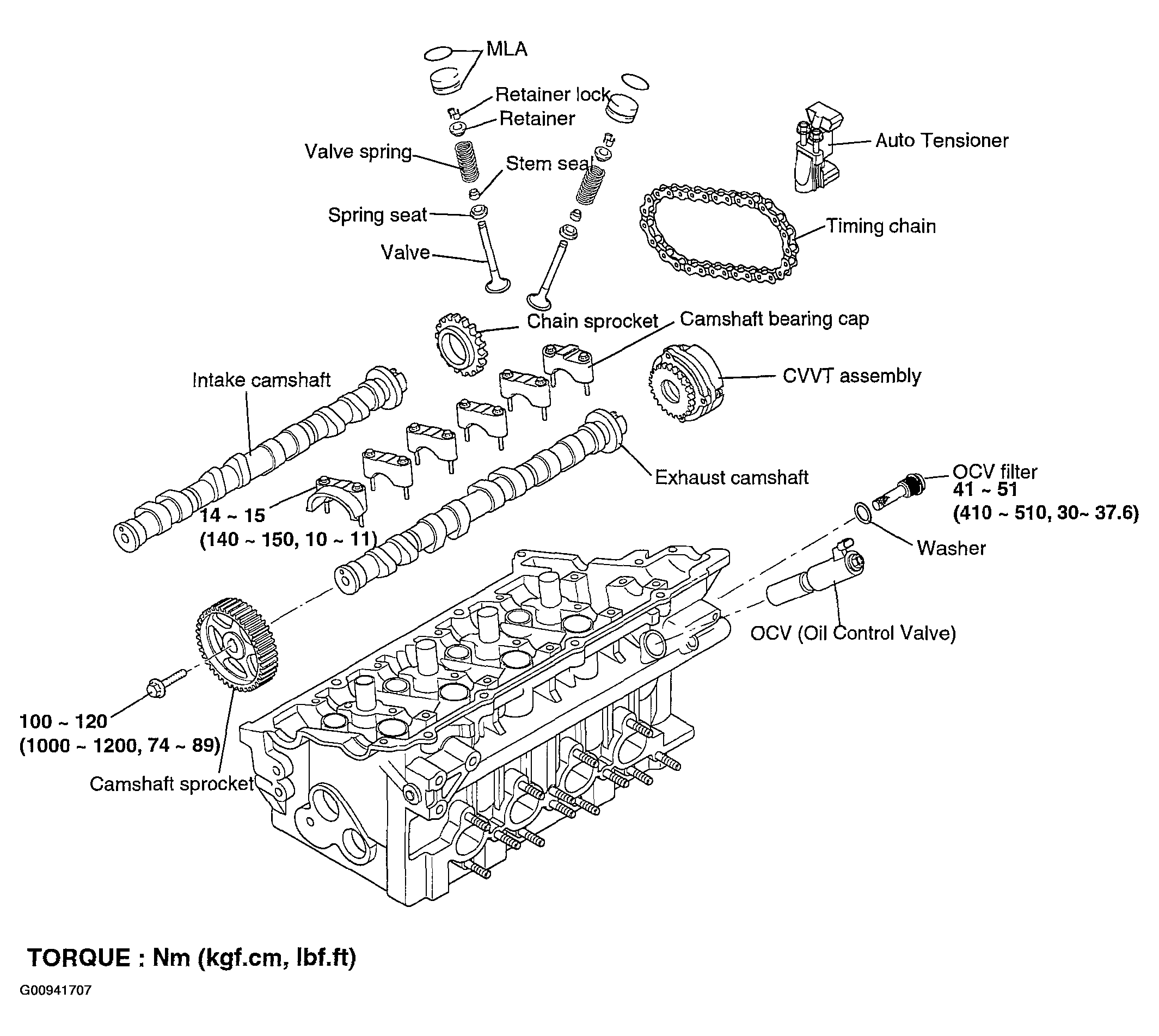

Fig 1: Identifying Camshaft Components
G00941707Courtesy of HYUNDAI MOTOR CO.
