Main Moving System: Piston: Components

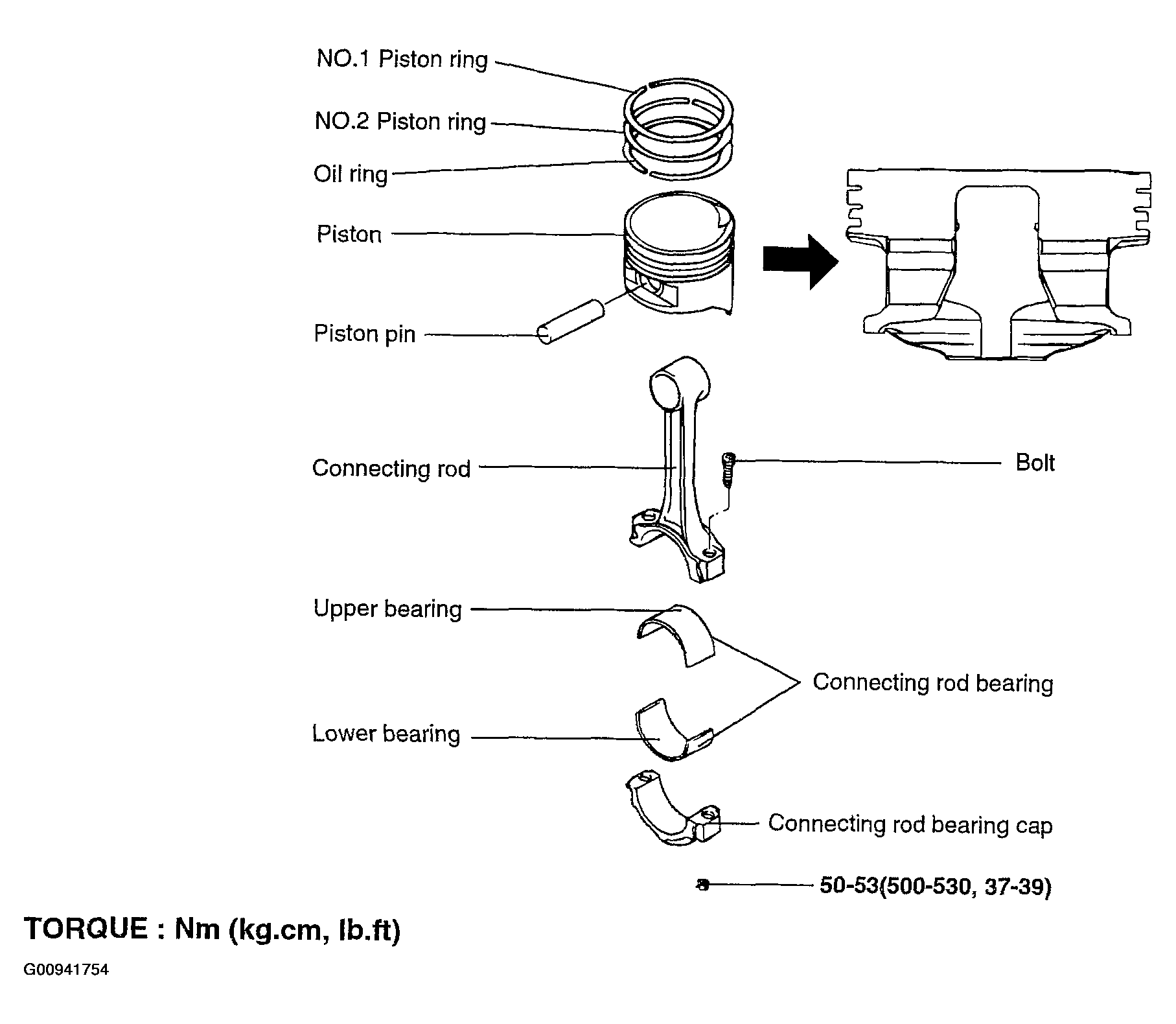

Fig 1: Exploded View Of Piston
G00941754Courtesy of HYUNDAI MOTOR CO.
