Signal Waveform

Fig 1: Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

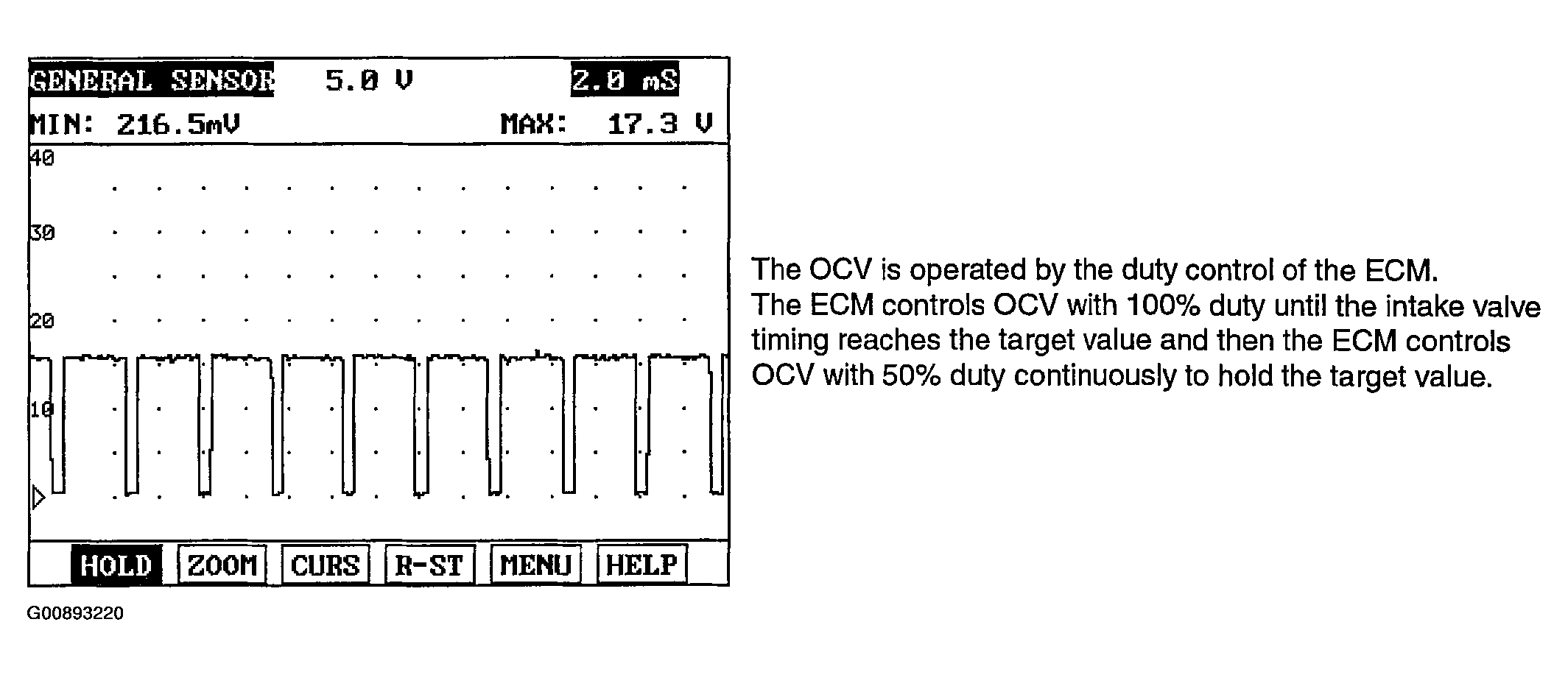

The OCV is operated by the duty control of the ECM.

The ECM controls OCV with 100% duty until the intake valve timing reaches the target value and then the ECM controls OCV with 50% duty continuously to hold the target value.
