DTC P0036: O2 Sensor Heater - Heater Control Circuit (Bank 1, Sensor 2): DTC Detecting Condition

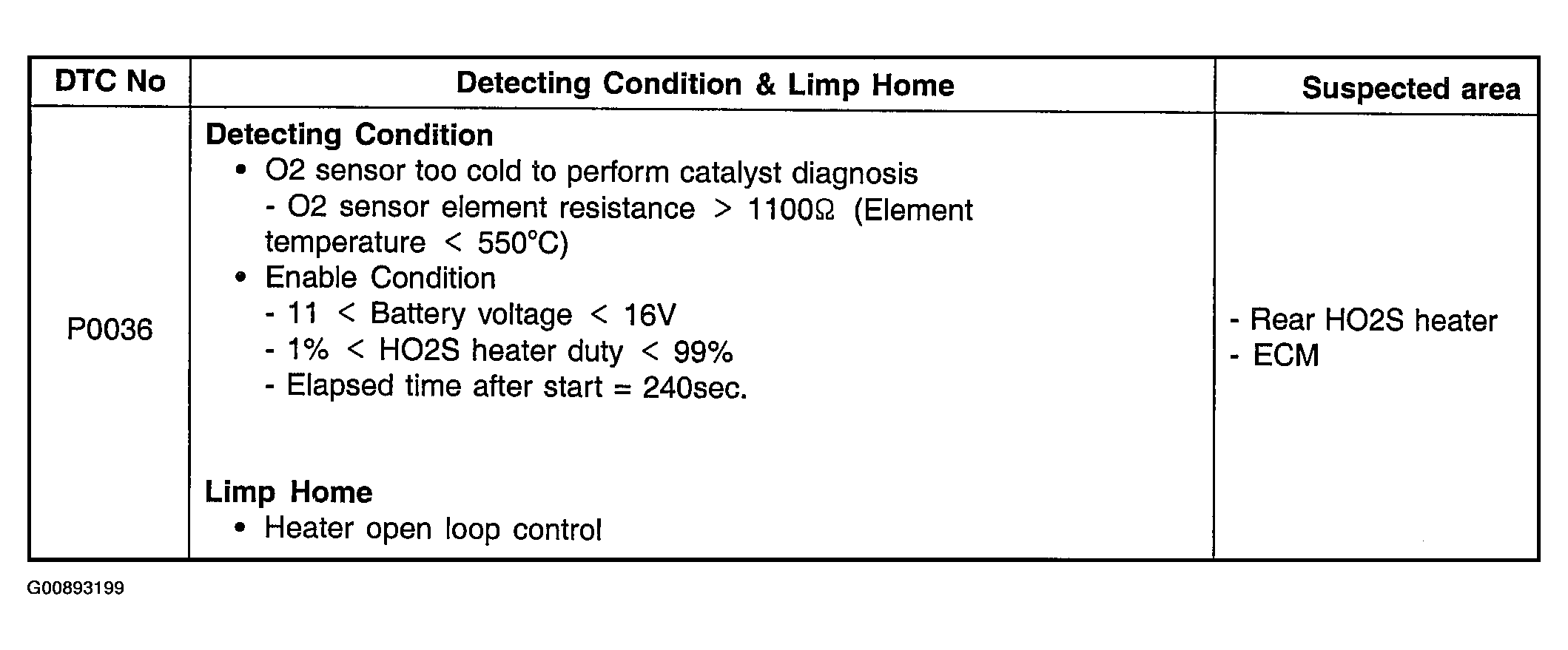

Fig 1: DTC Detecting Condition
G00893199Courtesy of HYUNDAI MOTOR CO.
