Section 5 (Automatic Transaxle System)
›
Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 12
Inspection Procedure 12
WARNING:
This page is about a different variant/trim than selected.

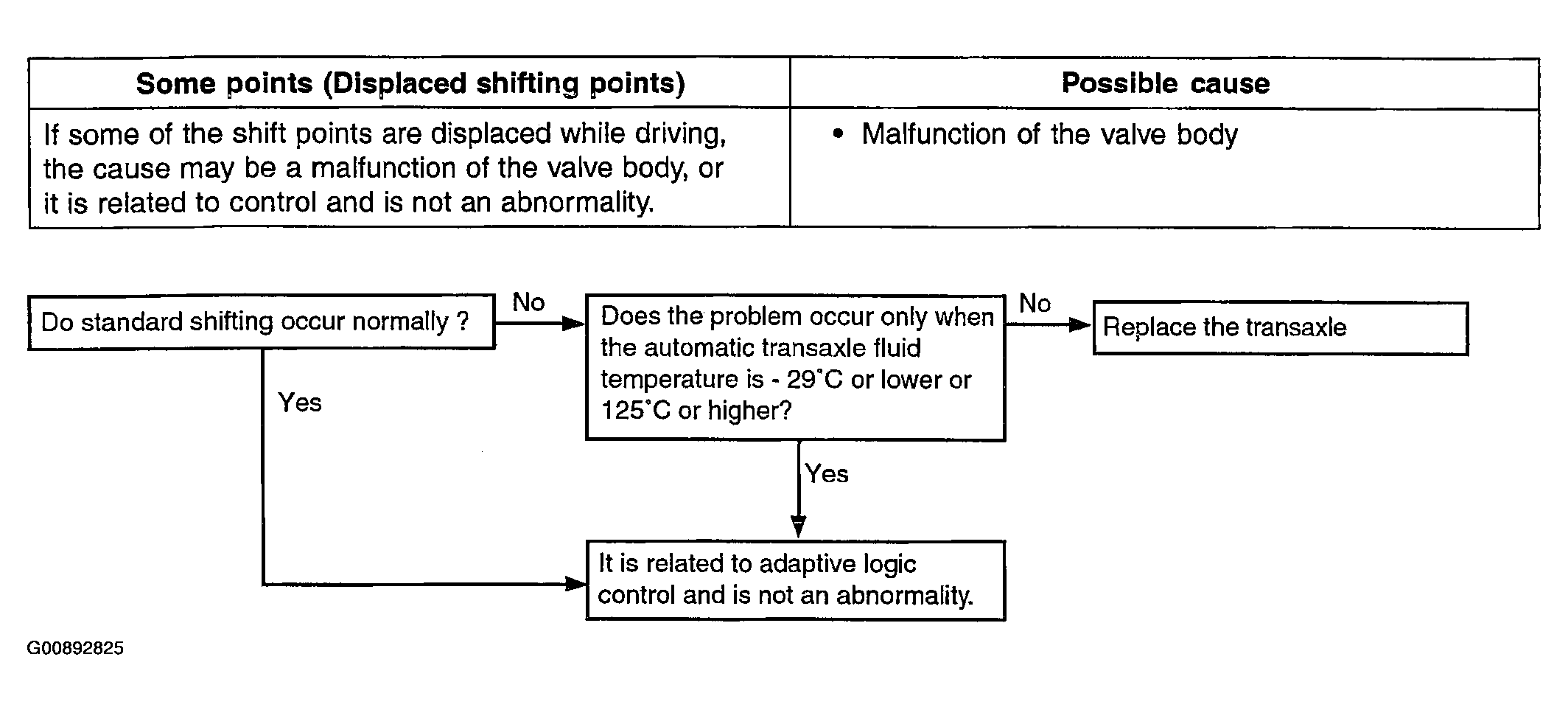

Fig 1: Inspection Procedure 12
Courtesy of HYUNDAI MOTOR CO.
