Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 9
Inspection Procedure 9
WARNING:
This page is about a different variant/trim than selected.

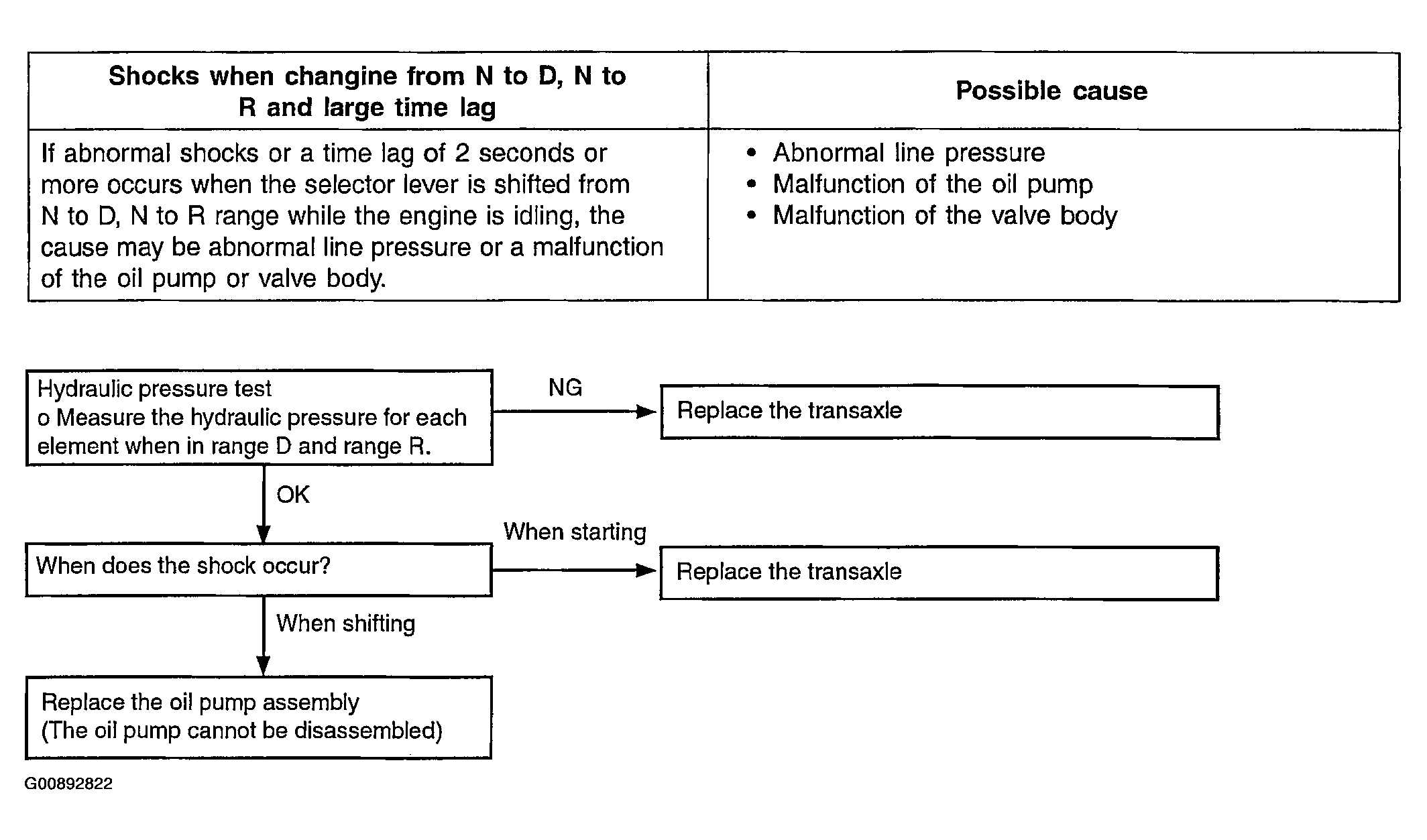

Fig 1: Inspection Procedure 9
Courtesy of HYUNDAI MOTOR CO.
