Power Steering Oil Pump: Disassembly: Installation

After installing the oil pump to the oil pump bracket, install the "V" belt and tighten the bolt adjusting tension to the specified torque.
Standard value

Oil pump adjusting bolt

3.5~5.0 Nm (350~500 kg.cm, 25.8~37 lb.ft)

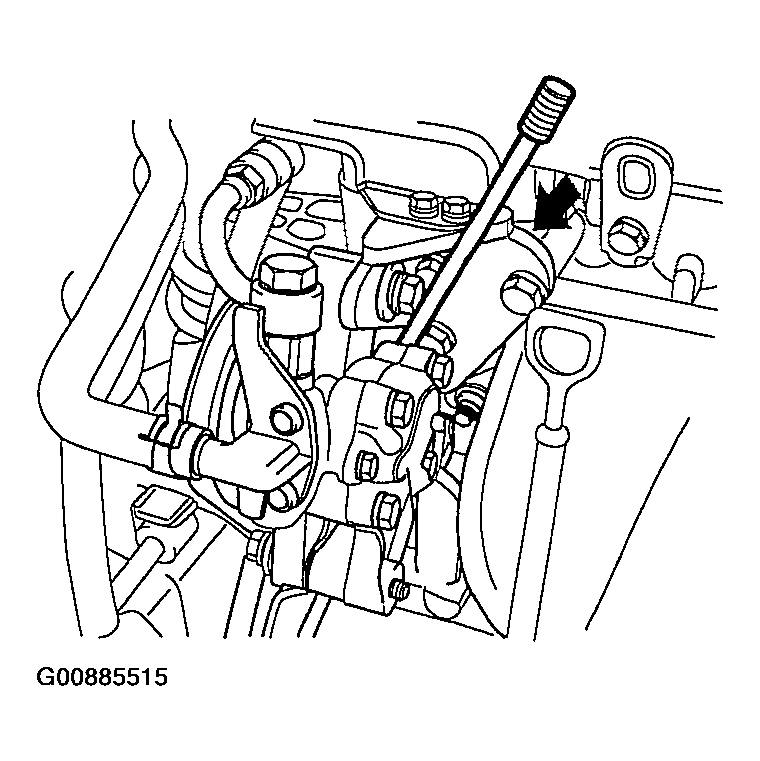

Fig 1: Installing Oil Pump To Oil Pump Bracket
Courtesy of HYUNDAI MOTOR CO.
Install the suction hose.
CAUTION: Install the pressure hose to the oil pump, facing the painted part on the hose toward the oil pump.
Install the pressure hose to the oil pump.
NOTE: Install the pressure hose being careful so that it does not twist and come in contact with other components.

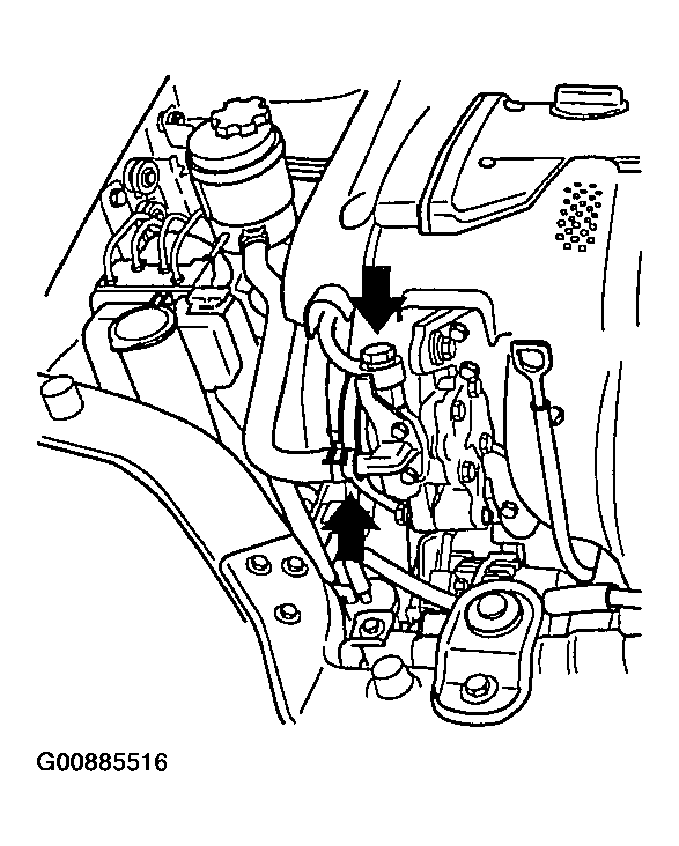

Fig 2: Installing Pressure Hose To Oil Pump
Courtesy of HYUNDAI MOTOR CO.
Add power steering fluid (PSF-3).
Air bleed the system.
Check the oil pump pressure.
