Power Steering Oil Pump: Components

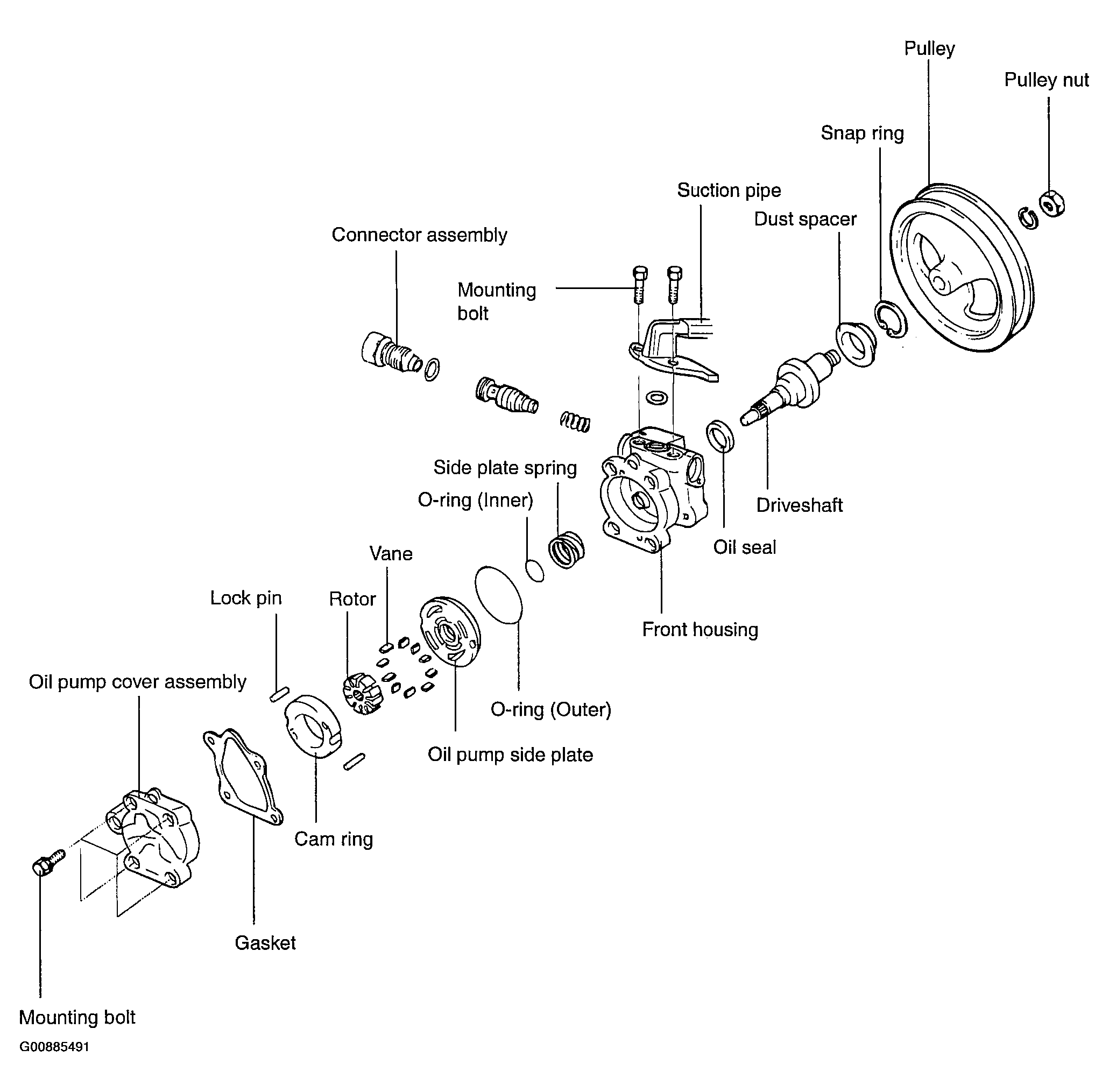

Fig 1: Identifying Power Steering Oil Pump Components
G00885491Courtesy of HYUNDAI MOTOR CO.
