Front Stabilizer Bar: Installation

1. Install the bushing on the stabilizer bar.
   NOTE:

   1. When installing the stabilizer bar, follow the identification color (ID color) as below.

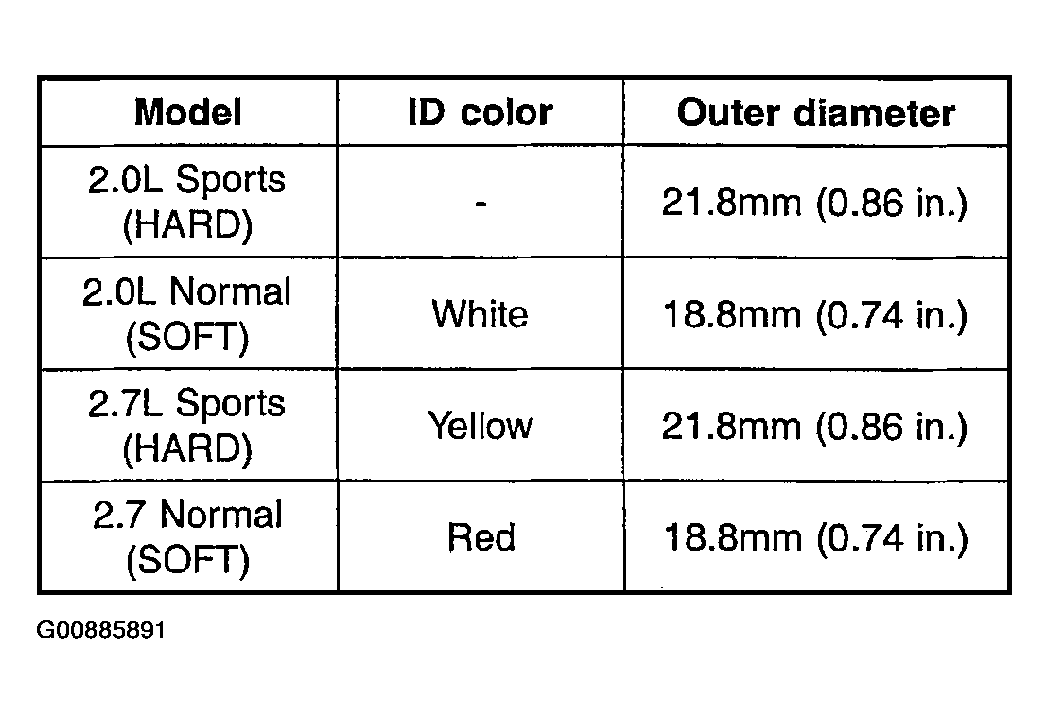

      Fig 1: Identifying Stabilizer Bar Bushing Type

      Courtesy of HYUNDAI MOTOR CO.
   2. Position the bushing on the outside of the stabilizer bar clamp so as to install it.
      Fig 2: Installing Stabilizer Bar Bushing

      Courtesy of HYUNDAI MOTOR CO.
   3. Let the selection of the bushings be able to be decided by customers.
2. Install the bracket on the bushing.
3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.

Fig 3: Installing Bushing Bracket

Courtesy of HYUNDAI MOTOR CO.
