Front Strut Assembly: Removal

1. Remove the front wheel.
2. Detach the brake hose bracket from the strut assembly.
   NOTE: Do not apply excessive force to the components.

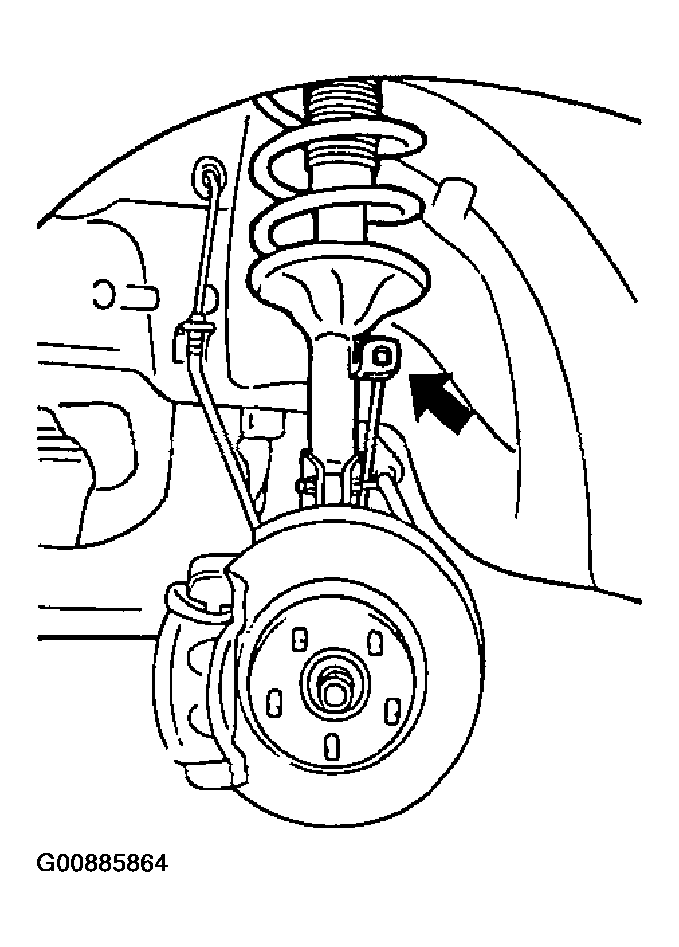

3. Remove the stabilizer link.
   Fig 1: Removing Stabilizer Link

   Courtesy of HYUNDAI MOTOR CO.

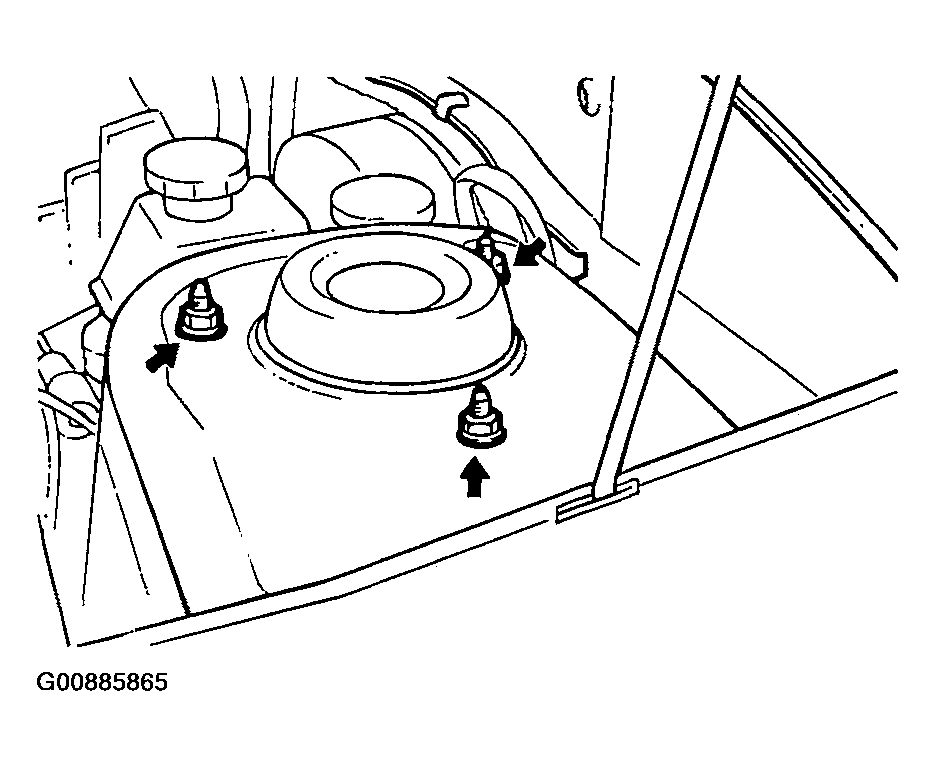

4. Remove the strut upper mounting bolts (3).
   Fig 2: Removing Strut Upper Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.

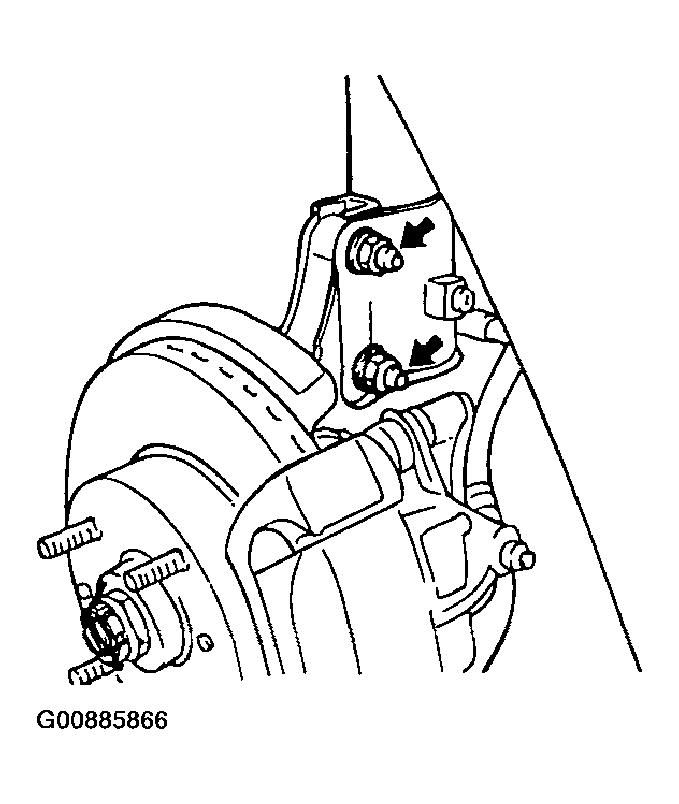

5. Remove the strut assembly.

Fig 3: Removing Strut Assembly

Courtesy of HYUNDAI MOTOR CO.
